4-Inch HVP-41 Precision Rotary Table with Dividing Plate for Horizontal and Vertical Milling

Description

Kang Industrial Rotary Table with Dividing Plate

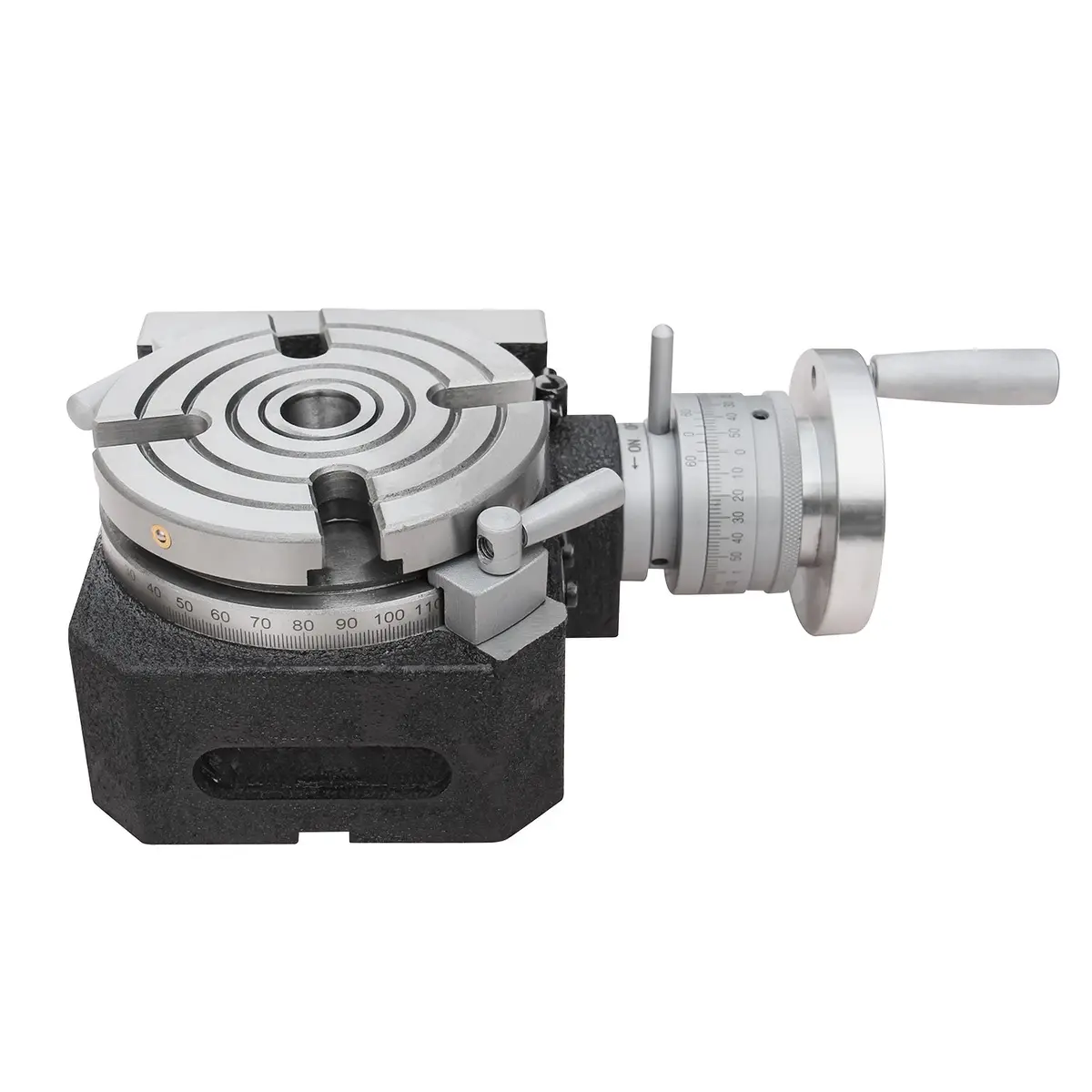

The Kang 4 Inch Rotary Table with Dividing Plate (DP-1) is a precision accessory designed for milling, drilling, and other metalworking tasks. Built for both horizontal and vertical operation, it offers flexibility for complex machining setups in workshops, garages, or small-scale fabrication environments.

Horizontal and Vertical Dividing. 4 Inch rotary table supports both horizontal and vertical milling, ideal for versatile machining and drilling tasks in workshops or home garages.

Precision Gear Drive Milling Accessories. Hardened and ground worm gear with a 72:1 ratio ensures smooth, backlash-free rotation and accurate positioning of workpieces

360 Degree Table Graduation Rotary Table. Graduated table allows precise angular measurements and indexing for drilling, milling, or slot cutting operations

Stable Workpiece Support.  With 4 T-slots, 85 mm table height, and an MT2 center bore, this rotary table securely holds a wide range of workpieces.

Features

4″ Horizontal & Vertical rotary table with 4 slots

Hardened and groundwork 72:1 ratio

360°  table graduation

85 mm table height

Center bore MT2

Comes with 3 pcs of index plate

Number of holes of the dividing/Index plate

HV-4 Installation dimension

A	B	C	D	E	H	M	N
145 mm	114 mm	85.5 mm	110 mm	12 mm	85 mm	MT2	68 mm

Specifications

SKU	162311
Model	HVP-41
Table dia.	110 mm
Morse taper of the center hole	MT2
Height of center for vertical mounting	85.5 mm
Width of T slot	12 mm
Adjacent angle of T-slot	90°
Width of the locating key	12 mm
Modules of worm and worm gear	1
Transmission ratio of the worm gear	1:72
Graduation of the table	360 °
Rotating angle of the table with one revolution of the worm	5
Index Plate A	15, 16, 17, 18, 19, 20
Index Plate B	21, 23, 27, 29, 31, 33
Index Plate C	37, 39, 41, 43, 47, 49
Packing size	29x24x13 cm
N.W./G.W.	10/11 kg
