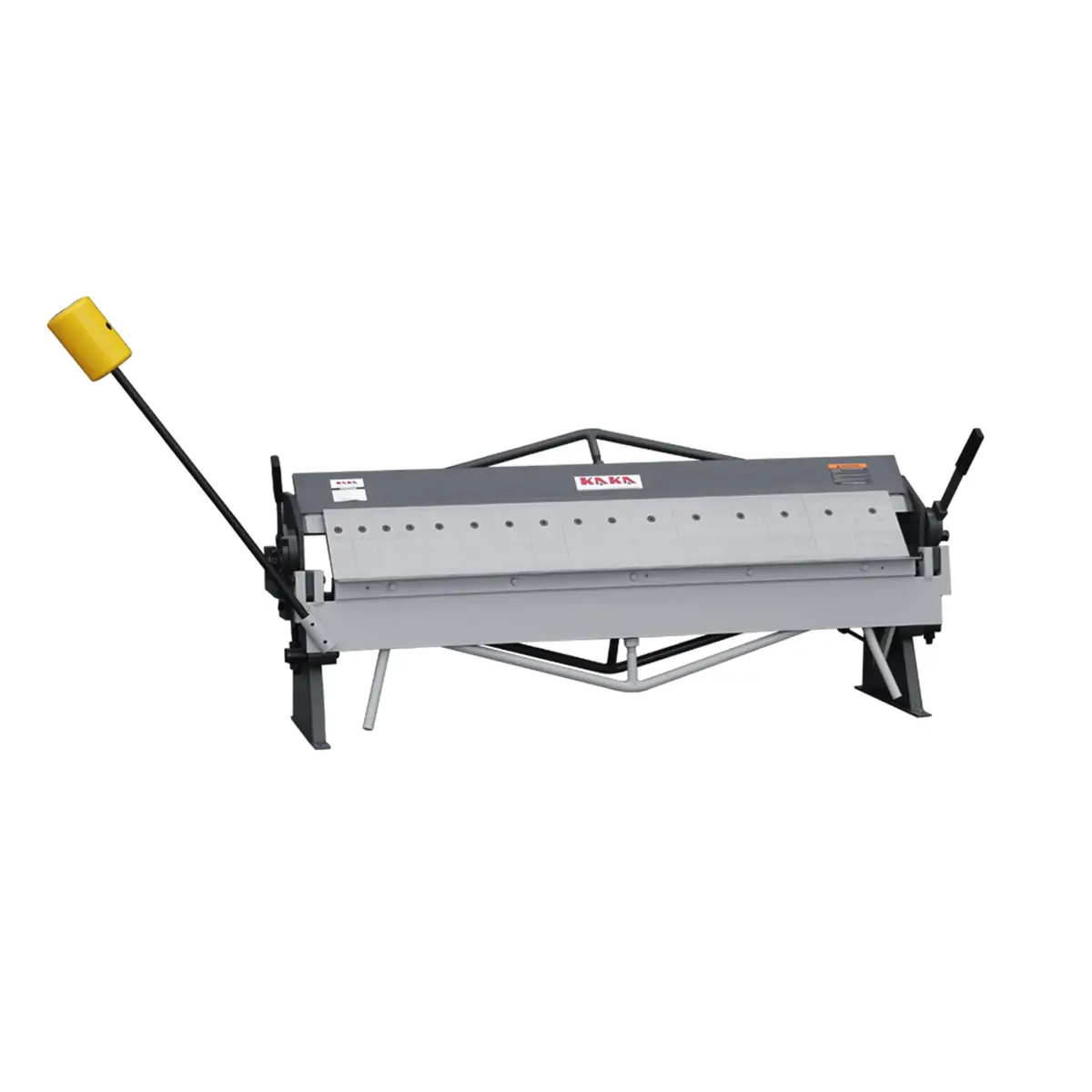

KANG INDUSTRIAL BP-1650 Manual Panbrake
This is a heavy-duty manual Panbrake folder, designed for professional sheet metal fabrication in high-volume shops. It excels at forming boxes, pans, trays, enclosures, and custom profiles with precise, repeatable bends up to 135°. Built on a rugged all-steel frame, it’s an upgraded version of standard hand brakes, offering greater versatility for complex operations like box-and-pan forming or straight bends. Ideal for HVAC, automotive restoration, sign making, and fabrication workshops needing durability without hydraulics.
Slightly Longer Bending Length. Total 1270mm width, handles wider sheets without multiple passes, saving time on larger projects
Superior Finger Assortment. 16 segment fingers ( 4 * 50.8mm, 6 * 76.2mm, 6 * 101.6mm), unmatched flexibility for small flanges or complex multi-sided forms, easier removal for custom shapes.
Extreme Rigidity Sheet Metal Bender. Up to 205kg & thick steel construction, minimal deflection on full 1270×1.6mm bends, delivering razor-straight line without waves.
Precision Adjustment Built-in. 16mm front-to-rear bead adjustment + 32mm beam lift, fine-tune for material thickness/spring-back.
High Repeatability and Consistency. This sheet bender includes a Stop Rod mechanism, which allows the operator to consistently set the angle for multiple identical bends, ensuring high repeatability for batch production. advantages
Features
Manually operate clamping and bending for efficient folding applications
High blades up to 184 mm for depth panbrake folding
0-135 degrees panbrake folder
Segment fingers for all box bending combinations
Quick action adjustment of the bending beam for a varying thickness steel plate folder
Stop rod for repeated bending
With fingers installed, it can be used as a full-length nose bar, turning the machine into a straight bending brake
Balance weight for easy bending
Specifications
| SKU | 173030 |
| Model | BP-1650 |
| Max. bending width | 1270 mm |
| Max. bending thickness | 1.5 mm |
| Max. box depth | 100 mm |
| Max. lift of beam | 32 mm |
| Beam adjustment | 16 mm |
| Bending angle | 0-135° |
| Packing size | 168x59x83 cm |
| N.W./G.W. | 205/255 kg |
