Description

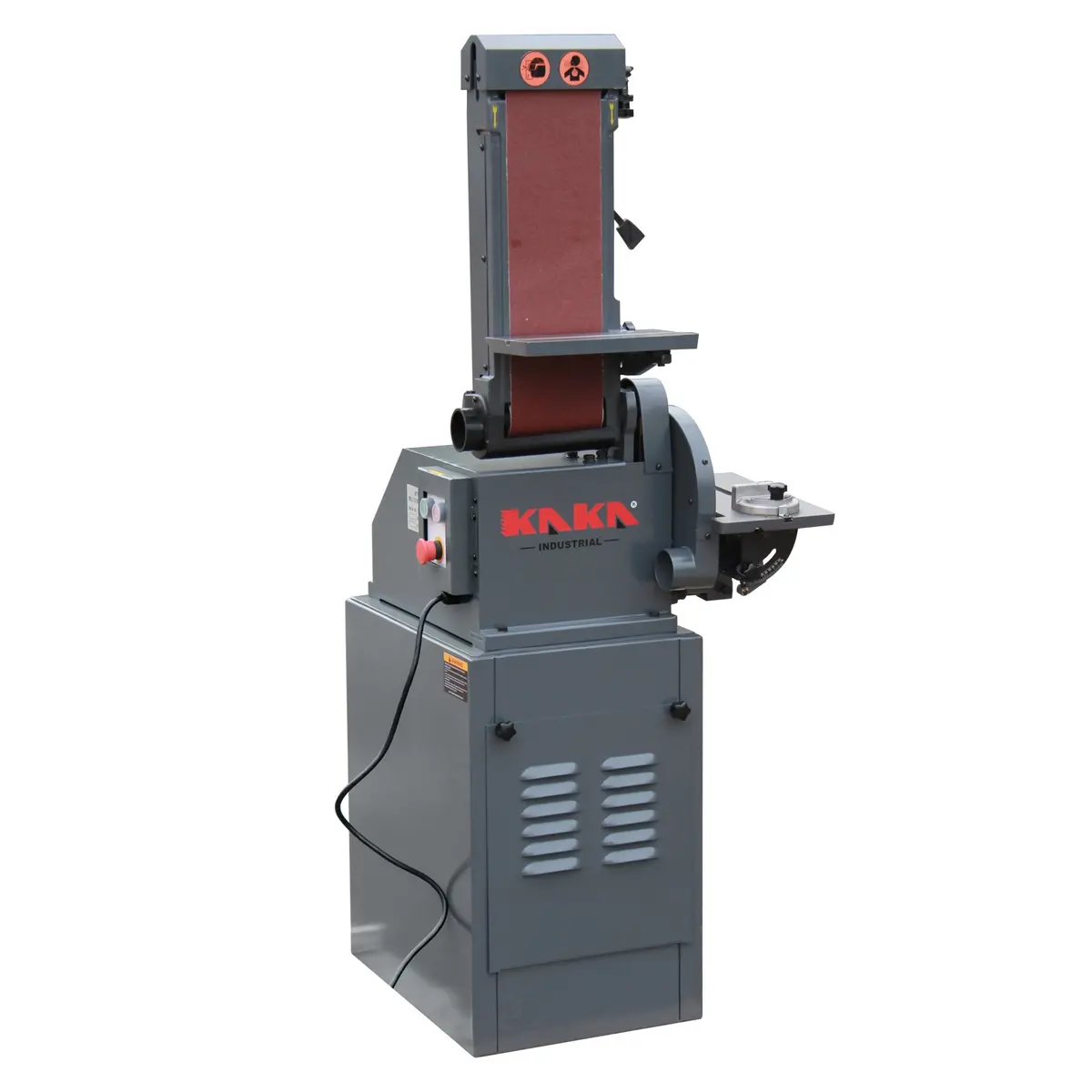

Belt & Disc Sander BTM-250
The KANG Belt Disc Sander BTM-250 is a premium, space-saving combination abrasive belt and disc grinder designed for professional metalworking, fabrication, and workshop use. This 2-in-1 machine combines a 150×1220 mm vertical belt grinder with a 250mm dia. disc grinder, making it ideal for deburring, chamfering edges, removing weld slag, smoothing surfaces, sharpening tools, and finishing metal parts. It features a robust cast-iron base and work tables for minimal vibration and long-term durability, along with a powerful 1.1 kW fan-cooled motor running on 240V single-phase power.
Space-Saving 2-in-1 Design Linisher. Combines belt and disc functions into one compact unit, ideal for smaller workshops, garages, or mobile setups where floor space is at a premium.
Versatile Metalworking Performance. Handles everything from deburring sharp edges on steel/aluminium, chamfering for welding prep, to surface finishing and tool sharpening, perfect for fabrication, mining equipment repair, automotive, and agricultural sectors.
High Build Quality & Durability Polishing Machine. Construction with cast-iron components ensures it withstands heavy daily use and variable workshop conditions, offering better longevity.
User-Friendly Linishing Machine. Tiltable tables for easy bevel grinding, built-in vacuum port for dust control, and standard tension/tracking adjustments make it straightforward to operate while keeping dust levels low.
Single-Phase Power Convenience Belt Grinder. Runs on standard 240V, suitable for home, small business, or remote sites without needing expensive 3-phase upgrades.
Features
Powerful 1.1kW motor, 240V single-phase power, and will work in almost any fabrication shop
The abrasive disc grinder rotates at 1750 rpm, and the abrasive grinder rotates at 1380 fpm
A large support table can be tilted up to 45 degrees for a mitre edge
The Belt grinder includes tension control and tracking adjustment.
The belt sander can be used in horizontal and vertical positions.
Specifications
| SKU | 189007 |
| Model | BTM-250 |
| Belt size | 150×1220 mm |
| Blet speed | 7m/sec |
| Table dimension | 152×267 mm |
| Table tilt | 45 degrees |
| Disk diameter | 250 mm |
| Table dimension | 190×330 mm |
| Disk speed | 1750 rpm |
| Chamfer angle | 15 degrees |
| Motor power | 1.1kW |
| Packing size | 79x51x114 cm |
| N.W./G.W. | 90/120 kg |
