Description

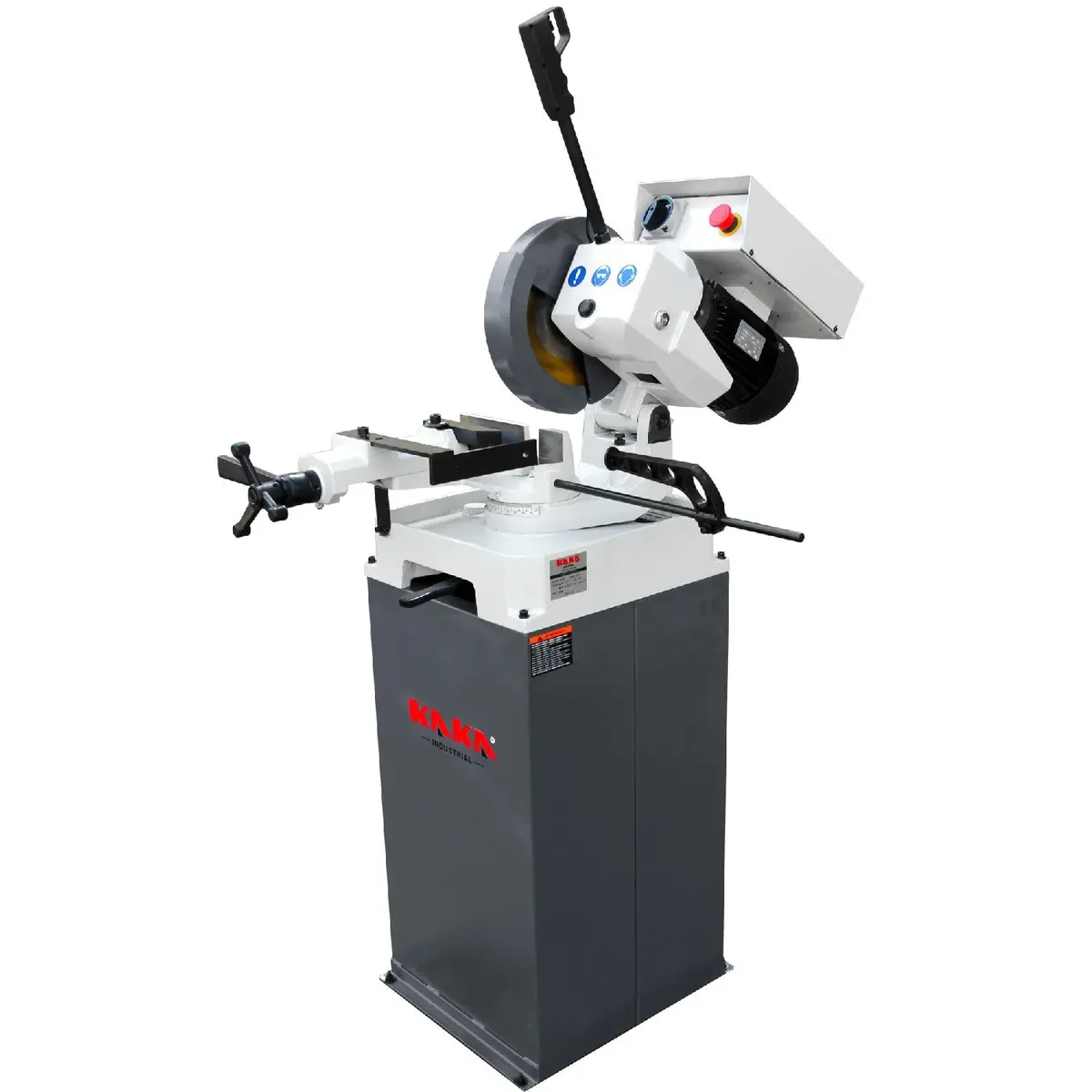

KANG Industrial Cold Saw CS-11
The CS-11 is a manually operated circular cold saw, with durability, low-maintenance design, and precision cuts on metals like mild steel, aluminum and non-ferrous profiles. The Gear Drive system delivers high torque and long RPM for burr-free, heat-minimal cold cuts, ideal for weld prep and finish work.
Heavy-Duty Construction. Robust cast-iron frame and low-tolerance drive system ensure vibration-free operation and a service life with minimal upkeep
Self-Centring Jaw System. Unique vice design clamps stock evenly from both sides, preventing distortion on tubes/profiles and enabling low-burr cuts
Versatile for Small Shops. Manual operation keeps it simple and affordable; dual speeds handle diverse materials without blade swaps.
Safety-Focused. Enclosed blade guard, emergency stop, and pull-down arm for controlled feeds.
Coolant Integration. Built-in pump delivers flood lubrication, extending blade life on stainless and reducing chip adhesion.
Features
Runs on 240 V, single-phase power
Swivel head on both sides range from -45° to +45° with a quick locking vice
Gear-driven, powerful cutting, power transfer from gear to blade directly
Built-in coolant system to lubricate and cool the blade when cutting
Need around 6L of coolant liquid
HSS Saw Blade (Pre-installed OD 275mm HSS Saw Blade)
Optional Coolant
Specifications
| SKU | 188022 |
| Model | CS-11 |
| Max. blade size | 275 mm |
| Cut circular @90° | 70 mm |
| Cut rectangular @90° | 90×45 mm |
| Cut circular @45° | 65 mm |
| Cut rectangular @45° | 70×45 mm |
| Vice table height | 950 mm |
| Blade speed | 42 rpm |
| Vice opening | 100 mm |
| Motor power | 1.1 kW |
| Drive | Gear |
| Packing size (Body) | 86x58x78 cm (crate) |
| Packing size (Stand) | 78x47x33 cm (stand) |
| N.W./G.W. | 148/174 kg |
