Description

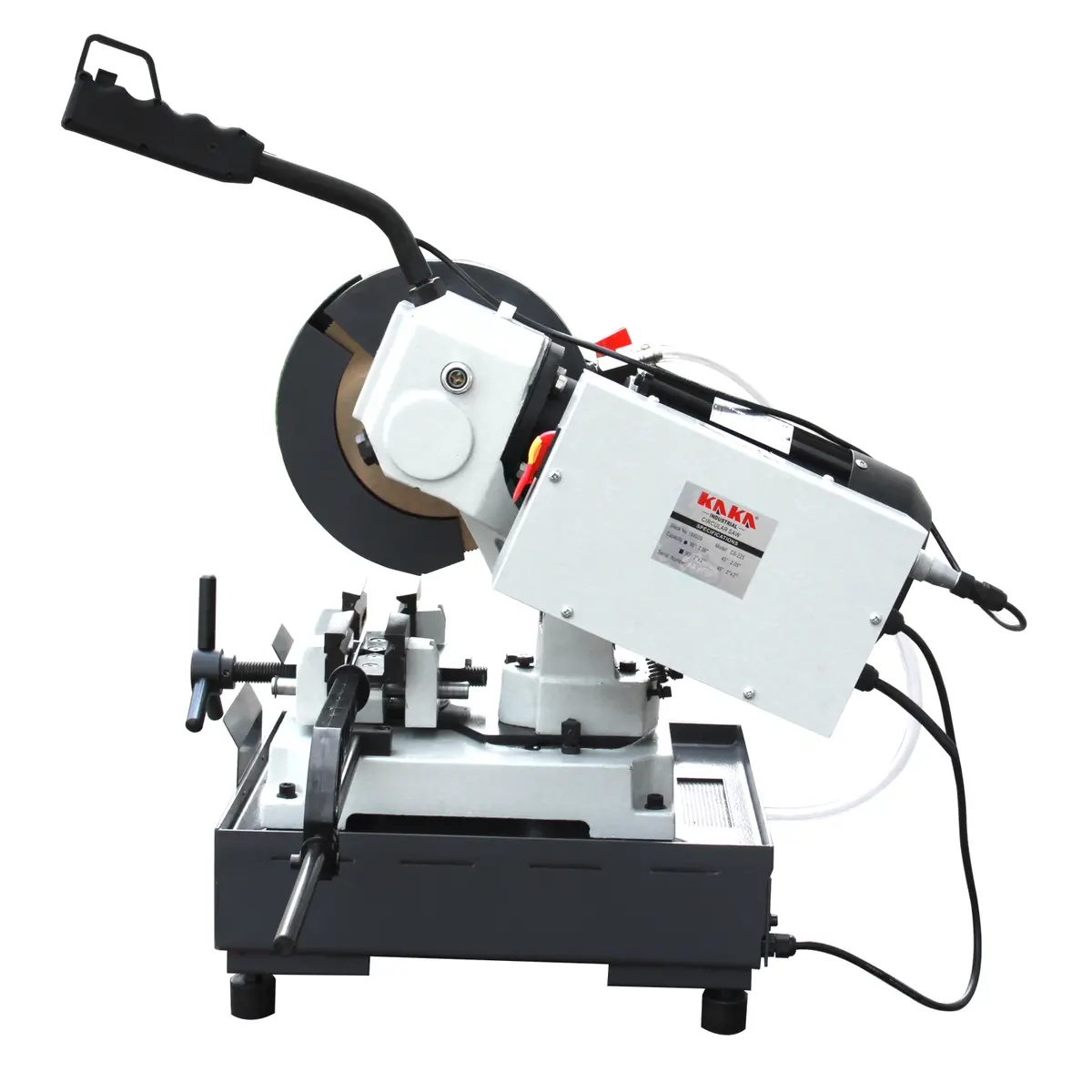

KANG Industrial CS-9, OD 225mm Cutting Blade Circular Saw
The circular saw CS-9 is a compact, manual cold saw designed for precise, burr-free cutting of metal stock like mild steel, stainless steel, aluminum, and non-ferrous materials. As a cold saw (using a toothed disc blade at low RPM for dry or mist-lubricated cuts), it produces cooler, cleaner edges without heat distortion—ideal for fabrication shops, maintenance, or small production runs
Heavy Duty Steel Frame. Cast iron body and arm for vibration-free stability, self-centring vice jaws prevent material slippage and distortion.
User-Friendly Cold Cut Saw. Manually operated, lever-actuated downstroke for controlled feed, quick-release blade guard protection
Gear Head Cold Saw. The gearbox delivers high torques at low RPM, easily cuts through materials without stalling or burning the blade
Precision Mitering. Smooth-swivelling head with degree scale for repeatable angles.
Equipped with a Coolant System. Coolant prevents chips to the blade teeth, no scoring or heat marks.
Features
Comes with an OD 225 mm HSS blade
Max. cut 60mm at 90°
Mitre cuts up to 45 degrees to the left side
1 HP motor runs on 240V power and could be used anywhere
Self-centring vice keeps the material in the right position
A direct-drive gearbox ensures proper alignments and long-term use
The stop rod helps with repeatability for small production runs
Standard coolant system
Standard HSS Saw Blade (Pre-installed, OD 225 mm HSS Blade)
Optional Coolant
Specifications
| SKU | 188025 |
| Model | CS-9 |
| Max. Blade size | 225mm |
| Cut circular @90° | 60mm |
| Cut rectangular @90° | 50x50mm |
| Cut circular @45° | 52mm |
| Cut rectangular @45° | 50x50mm |
| Blade Speed | 46 rpm |
| Vice Opening | 70mm |
| Power | 750W (1PH) |
| Packing size | 71x50x62 cm |
| N.W./G.W. | 63/75 kg |
