Description

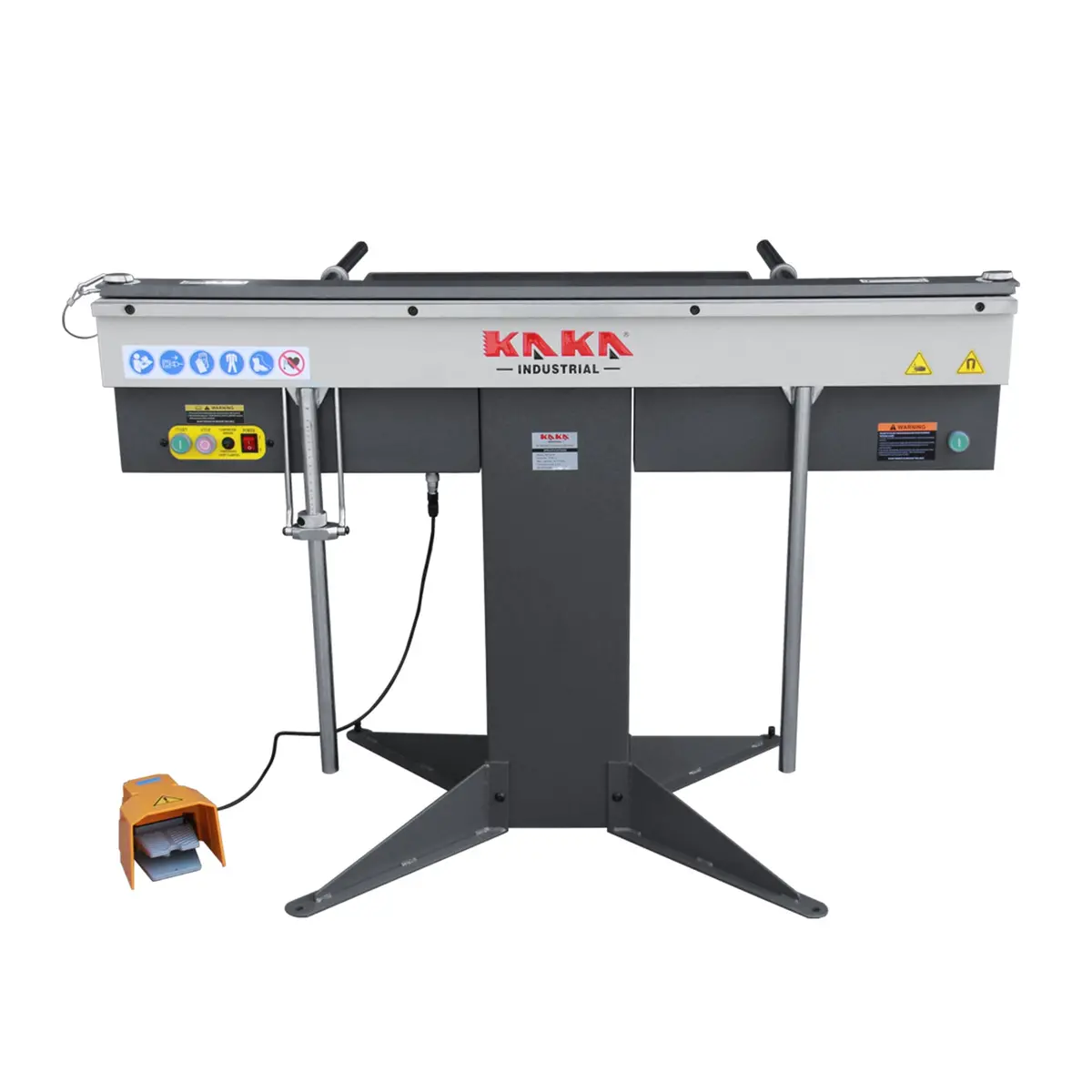

KANG Industrial Magnetic Bender EB-5216
The Magna Bender EB-5216 is a revolutionary electromagnetic sheet metal folding machine. The Sheet Bender uses powerful electromagnetic clamping with an adjustable segmented clamp instead of a traditional hinged upper beam. This open-ended design eliminates interference points, enabling complex shapes impossible on conventional brakes, such as fully enclosed boxes, deep trays/pans, channels, rolled edges up to 330°, partial bends, triangular forms, and unlimited box depths.
Unmatched Versatility Metalworking Machinery. Perfect for custom fabrication, HVAC ducting, roofing flashings, signage, automotive restoration, off-road mods, and prototyping in remote or mobile workshops.
Space-Saving & Portable Sheetmetal Machinery. Compact and lightweight for easy transport to job sites. No heavy hydraulic setup needed.
Low Maintenance Sheet Metal Bender. Only one main moving part; rugged construction suits harsh working conditions.
Precision & Speed Panbrake Folder. Electromagnetic clamping allows quick setup and accurate bends without beam interference.
Ideal Metalworking Equipment for Small to Medium Shops. Handles light ferrous/non-ferrous metals efficiently; great for trades like sheet metal workers, restorers, and fabricators needing tricky closed shapes.
Features
Runs on 240V single-phase power
1320 mm length with a max. 1.5 mm mild steel bending capacity
No limitation to the depth of the box, open-end design
6.5-ton pressure across the entire beam
Blade gap adjustment on clamping bars
Scaled stroke angle control lets you make repeatable bends
Different clamping bars
Suitable for HVAC shops, industrial art shops, and sheet metal fabrication shops
Could make enclosed boxes, triangles, etc.
Could bend a variety of materials, such as mild steel, stainless steel, aluminum plate, etc.
Different sizes available, EB4816 (1250×1.6mm), EB4816B (1250×1.6 mm), EB6116 (1550×1.6 mm), EB9816 (2500×1.6 mm)
Specifications
| SKU | 173410 |
| Model | EB-5216 |
| Max. capacity (mild steel) | 1320×1.5 mm |
| Clamping force | 6.5 Tonne |
| Duty cycle | 30% |
| Back gauge | 640 mm |
| Nominal current | 6 Amp |
| Power motor | 2.2 kW |
| Protection | Thermal cut-out 70℃ |
| Bending edge length | 1370 mm |
| Distance between lifters | 1330 mm |
| Packing size | 153x112x38 cm |
| N.W./G.W. | 183/260 kg |
