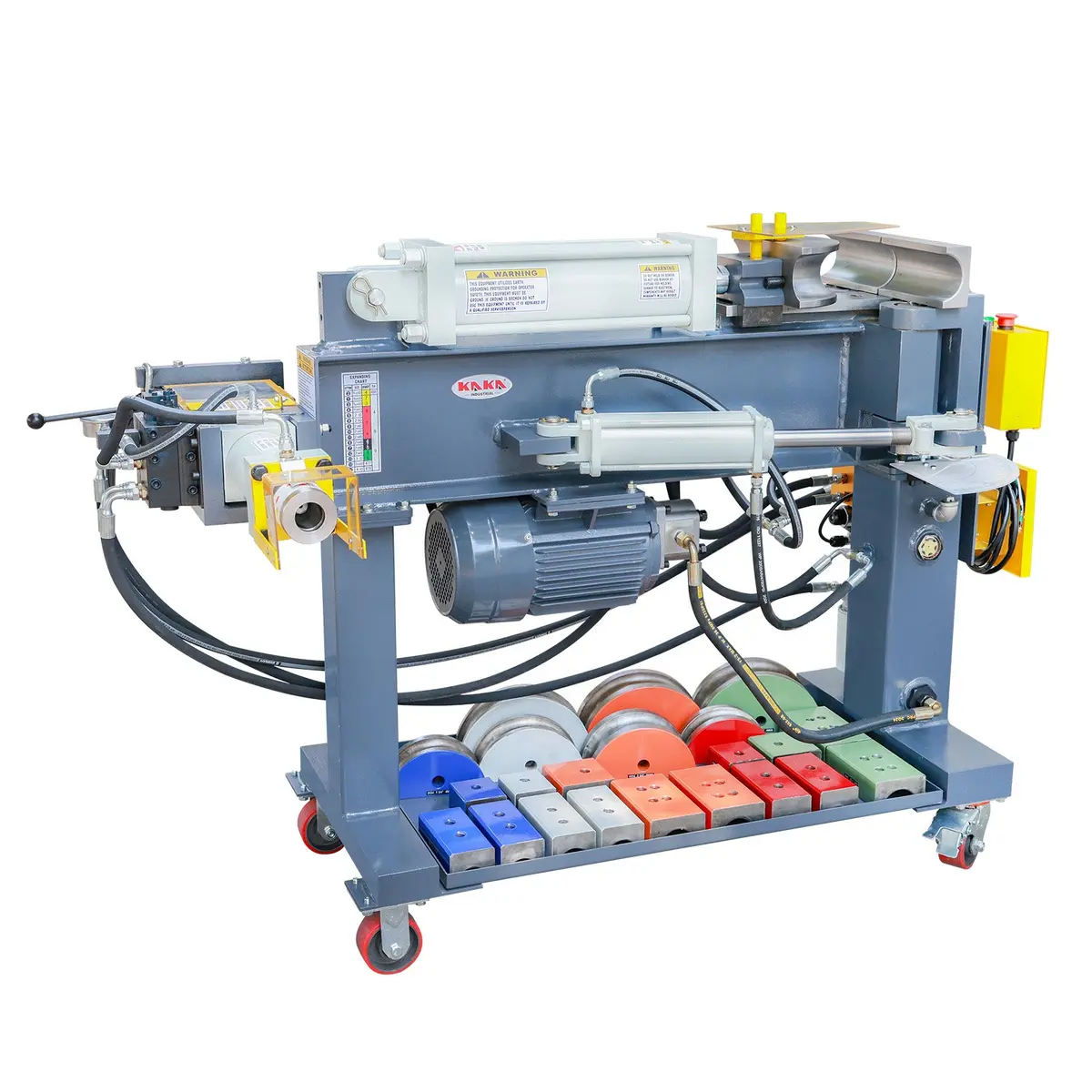

Exhaust Pipe Bender 3″ Exhaust Tube Bending Capacity, Hydraulic Swager and Expander
The KANG EPB-3 for automotive exhaust and industrial compression bending. The Bender EPB-3 is an all-in-one workstation designed to create O.E.-fit and custom exhaust pipes, complete with end-finishing capabilities.
It bends up to 3″ (76mm) OD tube with ease, its integrated Swager/Expander, which allows you to perform end-finishing (expanding, reducing, flaring, and forming ball joints) on the same machine. This makes it a self-contained profit center for any automotive or custom pipe shop.
All-in-One End-Finishing. The tube bender built-in swager/expander for precise ball joints, flares, and expansions—eliminates need for separate tools, saving time and cost on exhaust fabrication.
Comprehensive Ready-to-Use Tube Bender. Generous tooling package covers most common sizes (1.5″-3″) and operations; huge value compared to buying dies separately.
Hands-Free Operation Bending Machine. Knee-pad control frees both hands for accurate material positioning—boosts productivity and reduces fatigue in busy shops.
Mobility & Safety Tube Bender. Heavy-duty locking casters and integrated tool storage make it easy to move; includes exclusive safety guard package.
Versatile Applications. The EPB-3 tube bender is a complete entry-level professional package, ideal for automotive exhaust shops, custom fabrication, and restoration workshops
Features
4.0 kW powerful motor runs on 240V power
Up to 10T pressure max. bend 3″ tube
Knee pedal control, easy operation
Comes with a hydraulic swager & expander
Front swivel caster with brake, easy to move to different working positions.
Bending die retainer
Tooling list
| Item. | Desc. |
| 5530 | 5″ Radius Die 3″ |
| 5412 | 5″ Radius Die 2-1/2″ |
| 5414 | 5″ Radius Die 2-1/4″ |
| 5200 | 5″ Radius Die 2″ |
| 4414 | 4″ Radius Die 2-1/4″ |
| 4200 | 4″ Radius Die 2″ |
| 3134 | 3″ Radius Die 1-3/4″ |
| 3112 | 3″ Radius Die 1-1/2″ |
| 1350 | Full Back Shoes 3″ (2) |
| 4412 | Full Back Shoes 2-1/2″ (2) |
| 4211 | Full Back Shoes 2-1/4″ (2) |
| 1200 | Full Back Shoes 2″ (2) |
| 1134 | Full Back Shoes 1-3/4″ (2) |
| 1112 | Full Back Shoes 1-1/2″ (2) |
| 4410 | Half Shoe 2-1/2″ |
| 4416 | Half Shoe 2-1/4″ |
| 1045 | Half Shoe 2″ |
| 1040 | Half Shoe 1-3/4″ |
| 1038 | Half Shoe 1-1/2″ |
| 1750 | Collet 2-1/2″ |
| 1725 | Collet 2-1/4″ |
| 1720 | Collet 2″ |
| 1734 | Collet 1-3/4″ |
| 1712 | Collet 1-1/2″ |
| 853 | Flare Tool 1-1/2″ ~ 3″ |
| 550 | Male Ball Die 1-3/4″: Swage 2″ |
| 552 | Male Ball Die 2″: Swage 2-1/4″ |
| 553 | Male Ball Die 2-1/4″: Swage 2-1/2″ |
| 554 | Male Ball Die 2-1/2″: Swage 2-3/4″ |
| 555 | Male Ball Die 1-3/4″ ~ 2″ |
| 556 | Bale Ball Die 2-1/4″ ~ 2-1/2″ |
| 112 | Swage Die 1-3/8″ ~ 1-1/2″ |
| 134 | Swage Die 1-5/8″ ~ 1-3/4″ |
| 508 | Arbor 1-3/8″ ~ 3-1/2″ |
| 498 | Arbor tip 1-1/2″ ~ 1-3/4″ |
| 499 | Arbor tip 1-3/4″ ~ 3-1/2″ |
| 474 | Segment 1-1/2″ ~ 2″ |
| 476 | Segment 2-5/8″ ~ 3″ |
| 478 | Segment 2″ ~2-1/2″ |
| 815 | Die Holder |
| 816 | Die Holder Pin |
| 855 | Die Pins M18 |
| 1079 | Full Shoe Spacer |
| 1080 | Half Shoe Spacer |
| 782 | Reducing Die 2-1/2″ ~ 2-1/4″ |
| 790 | Reducing Die 3″ ~ 2-3/4″ |
| 97050 | Die Spring |
| 870 | O-Ring Kit |
