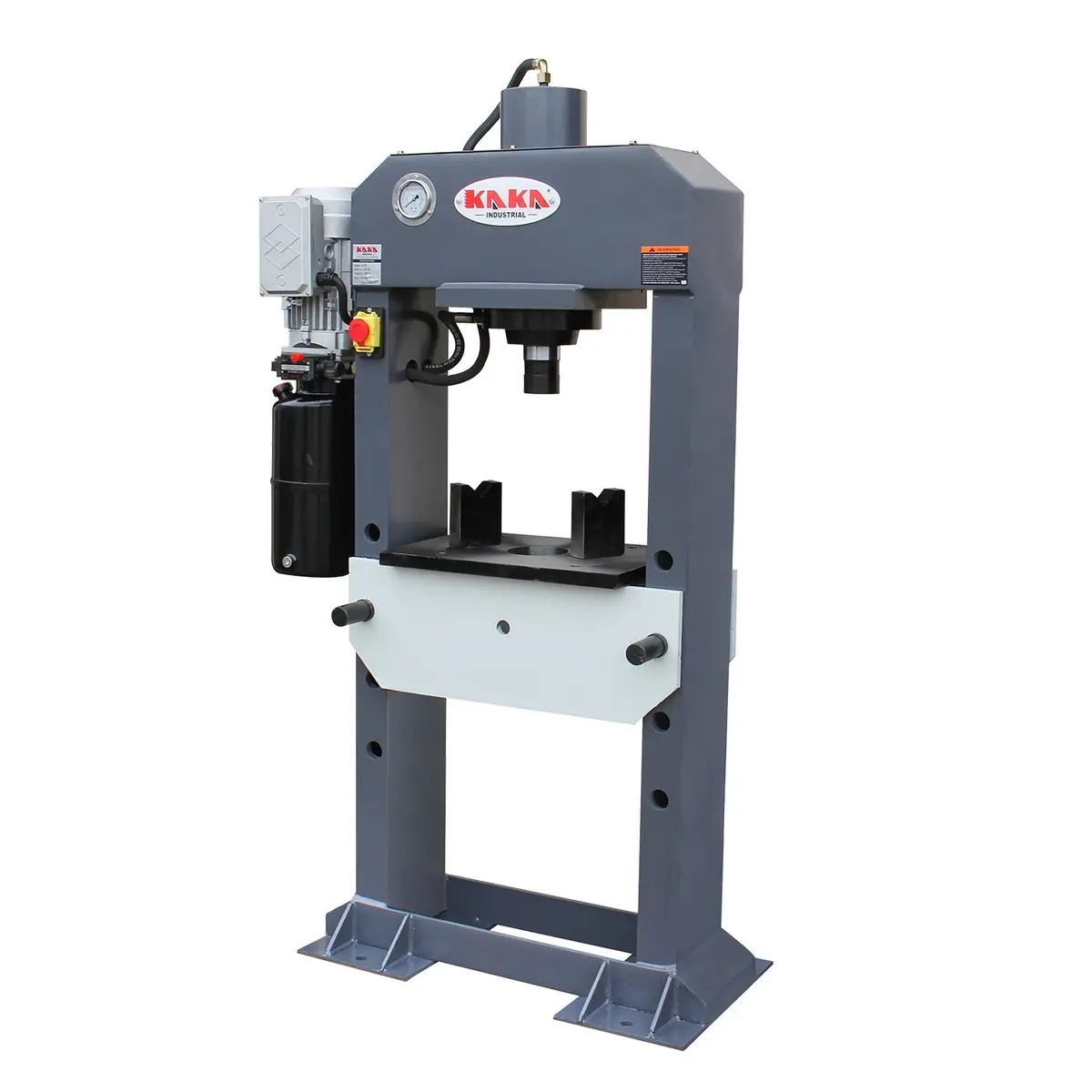

HP-25 Industrial Motorised Hydraulic Press
The KANG Hydraulic Press HP-25 is a heavy-duty 25-ton H-frame shop press designed for professional workshops and industrial applications. It features a 250mm stroke double-acting cylinder and an electric solenoid pump for efficient operation. The press is built with heavy steel welded construction for superior strength and longevity, along with a multi-position bed that allows for easy adjustment of work height to suit various tasks
High-Power Efficiency Shop Press. The 25-ton capacity and double-acting cylinder provide fast, powerful pressing with minimal effort, reducing fatigue during long jobs, perfect for busy workshops handling heavy machinery or vehicle repairs.
Electric Solenoid Control. The solenoid pump enables precise control, saving time and improving safety in high-volume environments.
Durability in Harsh Conditions. Built with robust steel and high-pressure ratings, it withstands tough use in dusty or humid climates.
Versatile Applications Press Machine. Excels at a wide range of tasks from automotive part installation to metal fabrication, making it a versatile tool for diverse industries.
Adjustable and User-Friendly H Frame Shop Press. The multi-position bed and compact footprint allow for easy setup in space-constrained sheds or trailers.
Features
Runs on 240V power, single-phase hydraulic press machine
Fully welded frame, robotic structure, H-frame workshop press
A fixed, central, strong hydraulic cylinder ensures precise pressing during the operation
Double speed control
V-blocks supplied as standard
Built-in pressure gauge provides exact pressure reading, ideal for professional mechanics or industrial workshops
A variety of uses, including removing and installing bushes, ball joints, bearings, pulleys, etc.
Specifications
| Model | HP-25 |
| Item ID. | 182124 |
| Pressing capacity | 25 Tonne |
| Hydraulic ram operation | Motorised System |
| Sliding ram (left-right) | No. |
| Hose Length | 450/450/450 |
| Reservoir Capacity | 8L |
| Max. Piston Stroke (mm) | 250 |
| Hydraulic Cylinder OD (mm) | 151 |
| Piston Rod Diameter (mm) | Piston 125 / Rod 65 |
| Piston Speed | Down 8.3 mm/s, Up 10.8 mm/s |
| Max. Distance: Ram to Table (mm) | 510 |
| Min. Distance: Ram to Table (mm) | 105 |
| Table Length (mm) | 460 |
| Table Width (mm) | 300 |
| Table Pin Diameter | Φ34.5 |
| Number of Adjustment Holes | 4 |
| Adjustment Hole Spacing (mm) | 135 |
| Overall Height (mm) | 1630 |
| Overall Width (mm) | 400 |
| Overall Length (mm) | 960 |
| Adjustment Hole Diameter | Φ35 |
| Inner Frame Width (mm) | 500 |
| Packing size | 176x115x66 cm |
| N.W./G.W. | 260/330 kg |
