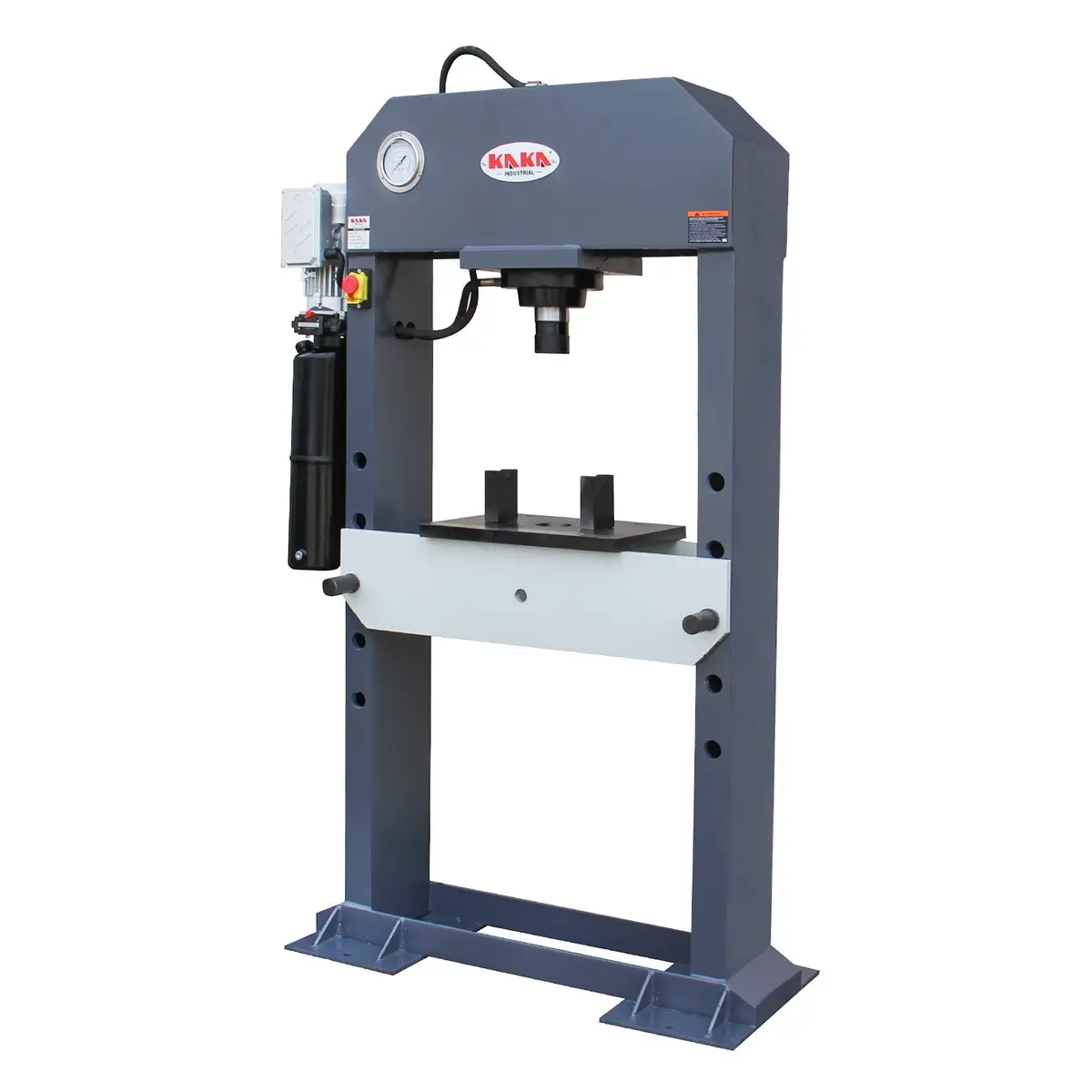

KANG INDUSTRIAL HP-50 Hydraulic Workshop Press
The heavy-duty, motorised hydraulic shop press HP-50 is designed for pressing, bending, straightening, and assembly/disassembly tasks in workshops, automotive repair, fabrication, and light industrial settings. It applies up to 50 tonnes (50,000 kg) of force using a 240V electric hydraulic system for smooth, effortless operation
Motorised Convenience Press Machine. 240V electric operation, fast, effortless pressing (no tiring hand-pumping like manual presses). Great for frequent or heavy use, saves time and reduces fatigue.
Heavy-Duty Build Shop Press. Welded steel frame provides stability and longevity under high loads, with less flex or failure risk.
High Force in Compact Form. 50 tonnes handles most common workshop jobs (e.g., larger than typical 20-30 tonne presses) without needing massive floor space.
Multi-Purpose Pressing Machine. Ideal for automotive (bushes/bearings), farming (machinery repair), metal fab (bending/straightening), or even light forging.
Features
50-ton Capacity motorized hydraulic press
Fixed central cylinder delivers 25 MPA pressure
Fully welded steel frame, robust structure workshop press
Distance between uprights, 800 mm
Dual speed control with manual direction valve
Gear pump with 12L hydraulic tank
Standard with a press gauge on the machine body
Optional Hydraulic Oil
Specifications
| Model | HP-50 |
| Item ID. | 182002V240 |
| Capacity | 500 kN |
| Pressure | 25 Mpa |
| Hose Length | 500/500/600 |
| Reservoir Capacity | 12L |
| Max. Piston Stroke (mm) | 220 |
| Hydraulic Cylinder OD (mm) | 193 |
| Piston Rod Diameter (mm) | Piston 160 / Rod 80 |
| Piston Speed | Down 5.1 mm/s, Up 6.8 mm/s |
| Max. Distance: Ram to Table (mm) | 660 |
| Min. Distance: Ram to Table (mm) | 120 |
| Table Length (mm) | 480 |
| Table Width (mm) | 360 |
| Table Pin Diameter | Φ38.5 |
| Number of Adjustment Holes | 5 |
| Adjustment Hole Spacing (mm) | 135 |
| Overall Height (mm) | 1770 |
| Overall Width (mm) | 500 |
| Overall Length (mm) | 1070 |
| Adjustment Hole Diameter | Φ40 |
| Inner Frame Width (mm) | 800 |
| Packing size | 148x64x200 cm |
| N.W./G.W. | 520/593 kg |
