Description

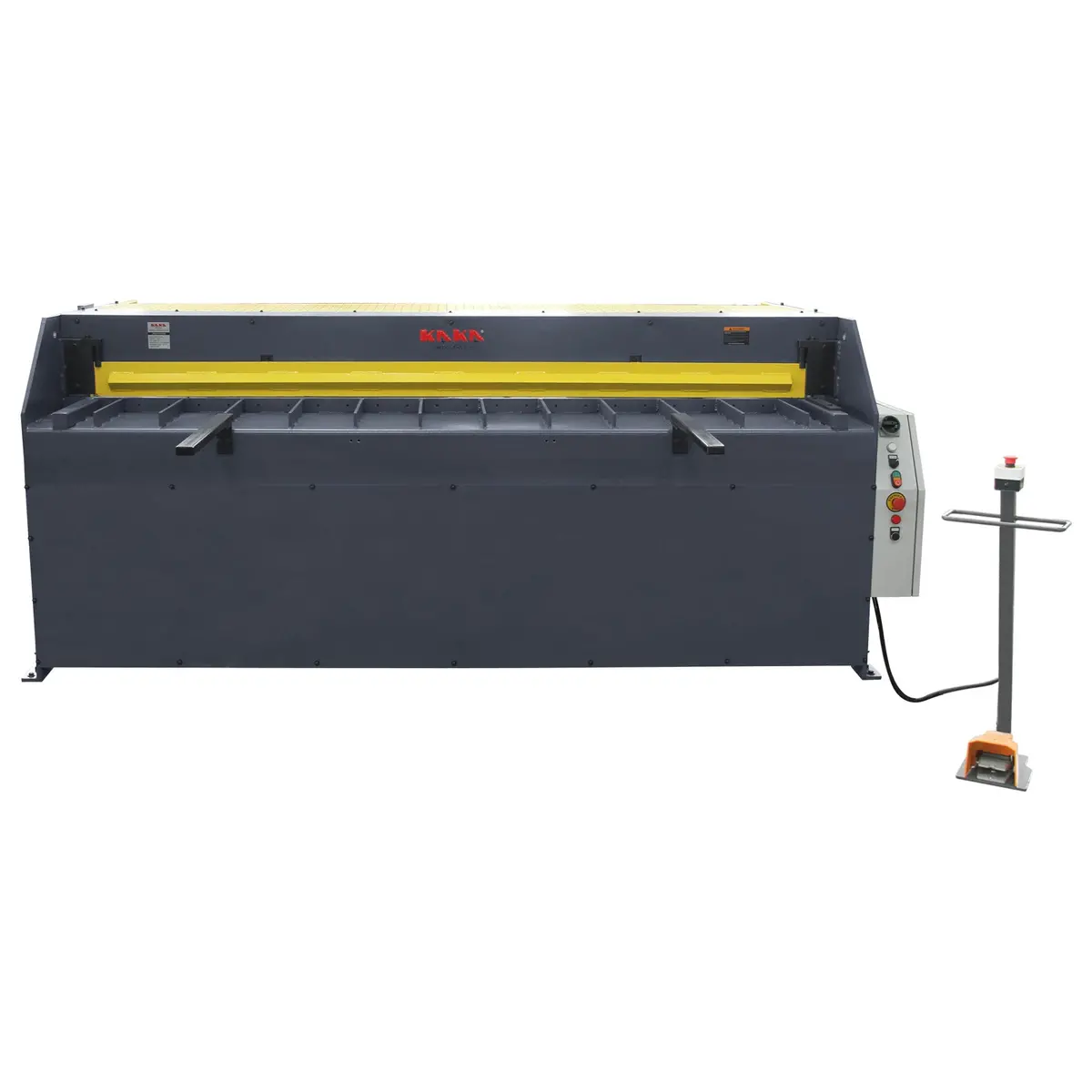

Hydraulic Guillotine, 2500×1.6mm cutting capacity with 3PH motor
The KANG HQ01-9816B is a heavy-duty hydraulic guillotine, specifically engineered for workshops that require industrial-strength shearing capacity. With a 2500mm cutting length and a 1.6mm mild steel capacity, it is the perfect solution for sheet metal fabrication, security mesh production, and general engineering.
The Guillotine brings hydraulic efficiency to the standard 415V power outlet. This “vertical slide” guillotine is designed for precision, featuring a robust frame that ensures clean, burr-free cuts across its full 2.5-metre width. It comes standard with a roving foot pedal for “hands-free” operation, allowing the user to manage large sheets easily. Safety is paramount, with rear-mounted laser lights and a front finger guard included as standard.
Superior “Vertical Slide” Accuracy Cutting. The vertical slide operation ensures a perfectly square, clean cut every time, making it ideal for high-precision fabrication and joinery.
Reversible High-Speed Steel (HSS) Blades. Maximise your investment with multi-sided blades. When one edge dulls, simply rotate the blade to a fresh edge. The bottom blade features four cutting edges, significantly reducing long-term maintenance costs.
Optimised for Security Mesh Cutting. Specifically popular in the Australian market for cutting Aluminium Diamond Security Mesh (up to 7mm) and perforated stainless steel, making it a “must-have” for security door and screen manufacturers.
Enhanced Safety Features. Equipped with rear-mounted safety laser lights and a physical finger guard, this machine is designed to meet workshop safety standards, protecting operators during high-volume production.
Mobile Roving Foot Pedal. The heavy-duty foot pedal is on a flexible lead, allowing the operator to stand at the most comfortable and safe position, depending on the size of the material being processed.
Features
Capacity: 2500mm x 1.6mm (Mild Steel)
Power: 2.2Kw / 415Volt (Three Phase)
Blade Quality: High-quality HSS blades (Top: 2 cutting edges; Bottom: 4 cutting edges).
Hold-Down System: Spring-assisted clamping for balanced pressure across the entire sheet.
Gauging: Manual back gauge with easy-read positioning.
Safety: Rear laser safety lights.
Included Accessories: Squaring arm, material supports, and roving foot pedal.
Specifications
| SKU | 172018 |
| Model | HQ01-9816B |
| Max. cutting thickness | 1.6 mm (Mild steel) |
| Max. cutting width | 2500 mm |
| Table height | 880 mm |
| Motor power | 2.2 kW |
| Back gauge | 800 mm |
| Packing size | 314x99x143 cm |
| N.W./G.W. | 1140/1340 kg |
