HRBM65H Heavy-Duty Section Rolling Machine – Dual-Axis (Vertical & Horizontal) Profile Bender

Description

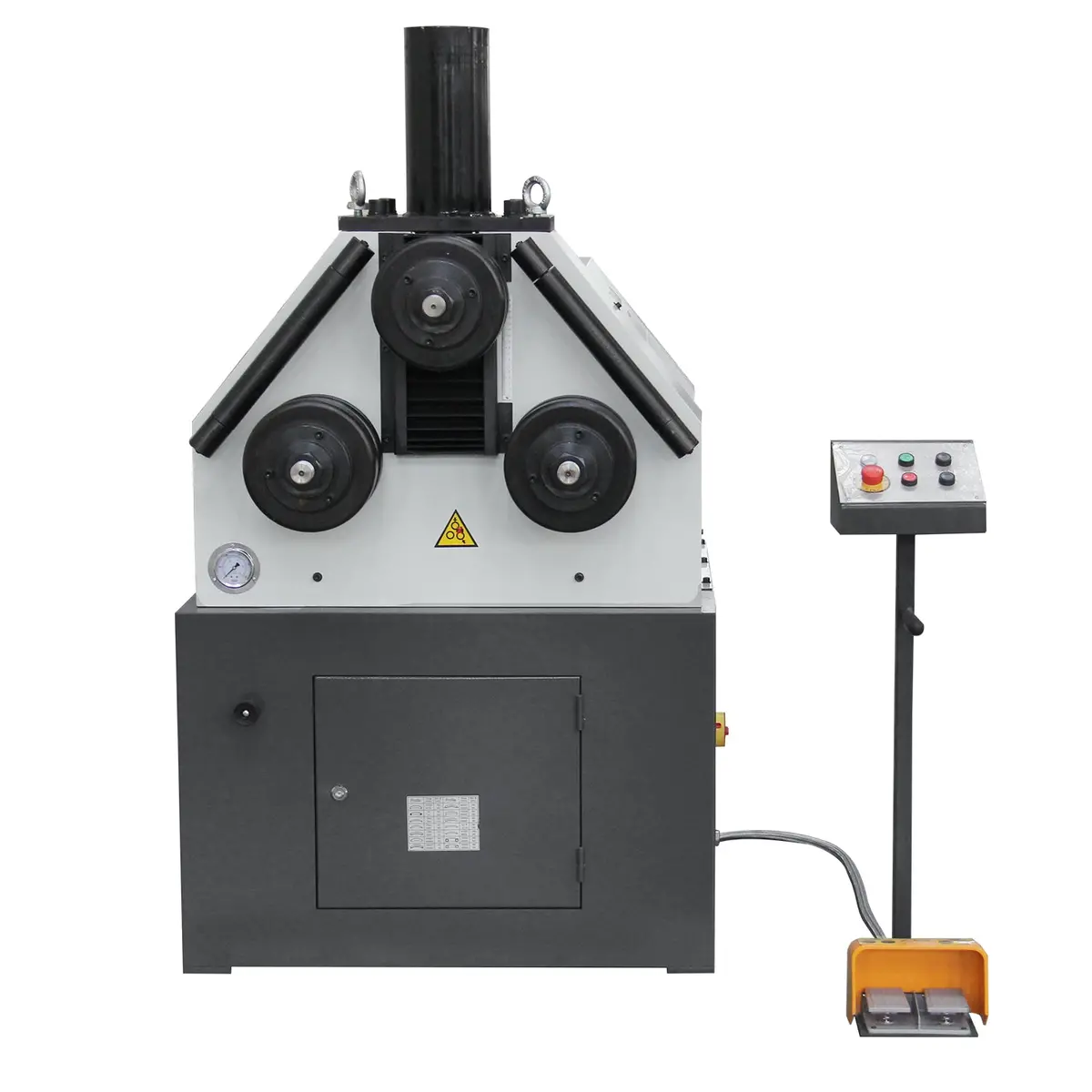

KANG Industrial Section & Profile Roller HRBM65H

The KANG HRMB-65H Section & Pipe Roller is a heavy-duty machine ideal for metal fabrication workshops in Australia. Featuring vertical and horizontal operation modes, it includes two powered rolls with hydraulic top roll positioning controlled via a digital display for precise adjustments. Powered by a robust 4.0W / 3hp 415V motor—perfectly suited to Australian electrical standards—this roller delivers a bending speed of 9.3 m/min. It handles a wide range of materials. Built with a heavy-duty steel fabricated frame, 65mm shaft diameter, hardened drive shafts, adjustable side guide rolls, and a roving foot pedal for forward/reverse control, it ensures reliable performance and ease of use. Standard flat and angle rolls are included, with additional tooling available for specialised tasks.

Versatile Bending Capabilities Section Roller. Handles diverse materials like pipes, sections, flats, and angles with multiple capacities, reducing the need for multiple machines and saving space in workshops.

Enhanced Precision and Control. The hydraulic top roll with digital display and measuring scale allows for accurate, repeatable bends, minimising errors and waste in fabrication projects.

Improved Rolling Efficiency. Two rollers are driven for better traction and performance, combined with a high bending speed, enabling faster production times for small to medium-sized operations.

Durable Construction Roll Machine. Heavy-duty steel frame, hardened shafts, and 65mm drive shaft ensure longevity and reliability, even under heavy use in demanding Australian industrial environments.

User-Friendly Design. Vertical/horizontal flexibility, roving foot pedal, and adjustable guides make it easy to operate, reducing operator fatigue and training time.

Features

Runs on 415V-50HZ-3PH power

Hardened rolls, various segment rolls for different types of flat bars, angle iron, square tube, etc.

Open-face design allows you to roll full circles

Horizontal and vertical use

The gear drive and a 4.0 kW powerful motor make rolling easily

Will need fill 28L ISO32 or ISO46 hydraulic oil

Optional Hydraulic Oil

Specifications

SKU	191021
Model	HRBM65H
Dia. of shaft	ø70 mm
Power	4 kW
Spindle speed	9.3 r/min
Packing size	122x110x188 cm
N.W./G.W.	730/910 kg

Working capacity

Profile	Size (mm)	Min. Dia. (mm)
Flat bar easy way	120×25 50×10	600 400
Square solid bar	35 20	550 400
Round solid bar	ø35 ø20	550 400
Angle steel toe out	70×6 40×5	500 400
Angle steel toe in	70×6 40×5	600 500
T steel toe out	80x40x7 40x40x5	500 400
T-steel toe out	80x40x7 40x40x5	400 360
T-steel toe up	80x40x7 40x40x5	500 400
C-channel toe out	100x50x5 50x40x5	550 500
C-channel toe in	100x50x5 50x40x5	550 400
Square tube	70x70x3 30x30x3	900 500
RHS X-X axis	80x40x3 50x30x2	800 500

Profile Samples (only for the above chart; if not in the chart, may need extra dies)
