Kang Industrial Horizontal & Vertical Rotary Table

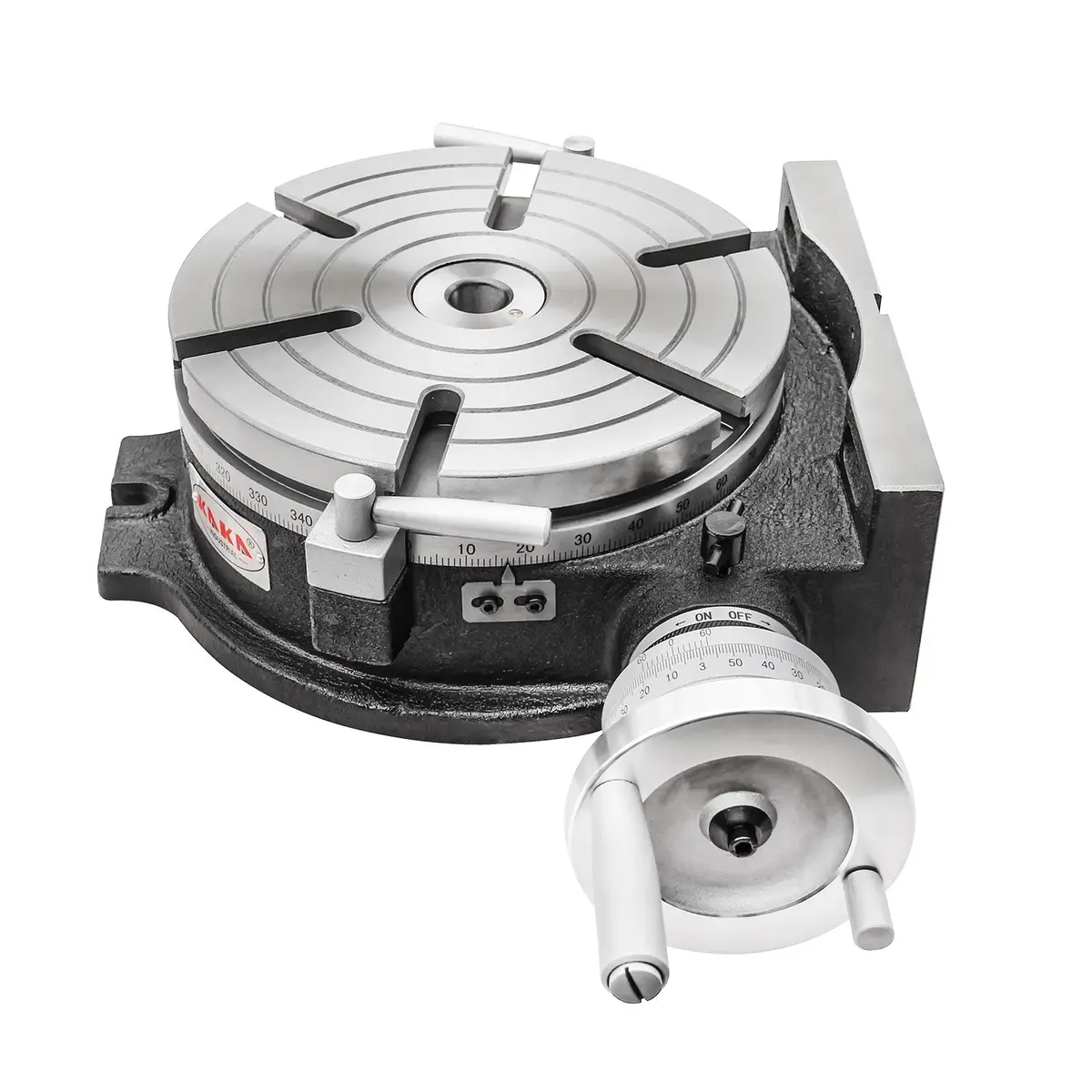

The KANG 250mm Rotary Table HV-10 is a large-scale, professional-grade machining accessory built for industrial environments. With a 250mm (10-inch) diameter and a weight of 44 kg, it is designed to handle substantial workpieces that require high precision and extreme rigidity. The HV-10 horizontal-vertical circular dividing table that offers professional-level indexing for milling, boring, and drilling operations. It is constructed from cast iron, providing the structural mass needed to maintain accuracy under heavy cutting loads.
Built for Knee Type Millsand Bed Mills. The HV-10 is the ideal size for the standard industrial machines. Its 44kg mass provides the dampening required for these more powerful spindles.
Superior Stability Work Holding for Vertical Machining. The HV-10 features a wide integrated vertical base with a guide slot, ensuring the table remains rock-steady when mounted upright for gear cutting or side-drilling.
Versatile 6-Slot Clamping System. Unlike smaller tables that typically have 3 or 4 T-slots, the HV-10 features 6 radial T-slots. This is a major advantage for the fabricators who often deal with irregular “one-off” parts or large circular plates that require extra clamping points for safety and precision.
Industrial MT3 Standard. By using a Morse Taper 3 (MT3) center bore, the table integrates seamlessly with the heavy-duty collet chucks, centers, and arbors already used in professional workshops.
Features
Suitable for milling and drilling works
MT3 Spindle taper
Table made of high-quality cast iron, sturdy structure
Hardened and grounded worm shaft
2 clamping lever for clamping the table
Direct indexing via a 360° scale mounted on the table
OPTIONAL Tailstock TS-2
OPTIONAL Dividing Plate DP-2
| A | B | C | D | E | G | H | N |
| 325 mm | 280 mm | 165 mm | 250 mm | 16 mm | 17 mm | 115 mm | 113 mm |
Specifications
| SKU | 161110 |
| Model | HV-10 |
| Table dia. | 250 mm |
| Morse taper of the center hole | MT3 |
| Height of center | 165 mm |
| Width of T slot | 12 mm |
| Adjacent angle of T slot | 60° |
| Width of the locating key | 16 mm |
| Modules of worm and worm gear | 2 |
| Transmission ratio of the worm gear | 1:90 |
| Gradation of the table | 360 ° |
| Rotating angle of the table with one revolution of the worm | 4” （1‘ per graduation) |
| Min. value of vernier | 10″ |
| Indexing accuracy | 60″ |
| Max. loading (Table horizontal) | 200 kg |
| Max. loading (Table vertical) | 100 kg |
| Packing size | 43x35x18 cm |
| N.W./G.W. | 43/45 kg |
