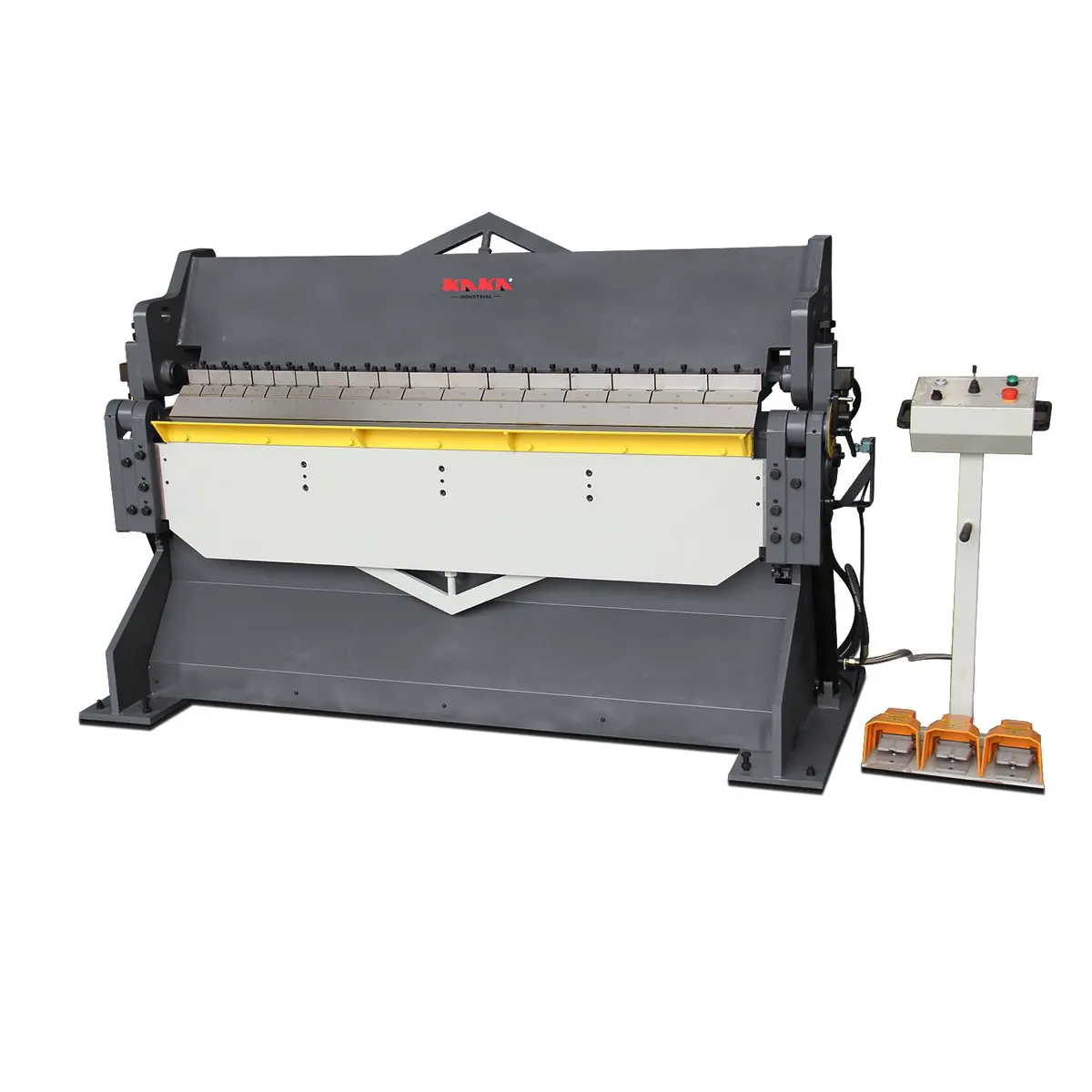

Hydraulic Pan Brake HW-7210
The KANG HW-7210 is a professional-grade hydraulic pan brake (1830×3.5mm capacity) designed for creating complex folded shapes such as boxes, trays, pans, enclosures, ducting components, and custom sheet metal products. It features segmented upper clamping tools (fingers) that can be adjusted or removed to allow deep return flanges and boxed work without tool interference. The sheet bender uses full hydraulic power for smooth, consistent bending, adjustable crowning on the table to ensure uniform bends across the full length of 1830mm, and a wide angle range of 0°–135°.
Flexibility Panbrake Folder. Segmented fingers enable deep trays, return-flanged panels, enclosures, and complex shapes, ideal for fabricators making ductwork, switchboards, signage, architectural flashing, and roofing accessories.
Perfect 6 ft Size Bender. The 1830 mm length fits well in smaller-to-medium workshops, handles standard sheet sizes, and takes up less floor space than 8 ft models HW-9610.
Strong Bending Capacity. Reliably bends 3.5 mm mild steel and 2.5 mm stainless steel used in roofing, cladding, and general fabrication.
High-Quality, Consistent Bends. Hydraulic power & adjustable crowning deliver straight, low-distortion folds across the full length, reducing material waste and post-bend finishing time.
Fast & Operator-Friendly. The foot pedal + control panel allows efficient one-person operation.
Features
Powerful 3.7kW motor runs on 415V power
Max. bending 3.5 mm thick mild steel plate across the full width of 1830 mm
Hydraulic bending and clamping beam, heavy-duty pan brake folder
Max. box depth up to 150 mm
Bending angle range from 0-135 degrees
Specifications
| SKU | 173502 |
| Model | HW-7210 |
| Max. bending thickness | 3.5 mm |
| Max. bending width | 1830 mm |
| Bending angle | 0-135° |
| Max. box depth | 150 mm |
| Large beam opening | 75 mm |
| Manual back gauge | 660 mm |
| Hydraulic cylinder pressure | Max. 15 MP |
| Hydraulic cylinder speed | 50-85 mm/s |
| Motor working pressure | 12 Mp |
| Manual beam adjustment | 0-25 mm |
| Motor power | 3.7 kW |
| Packing size | 265x102x170 cm |
| N.W./G.W. | 2170/2300 kg |
