Description

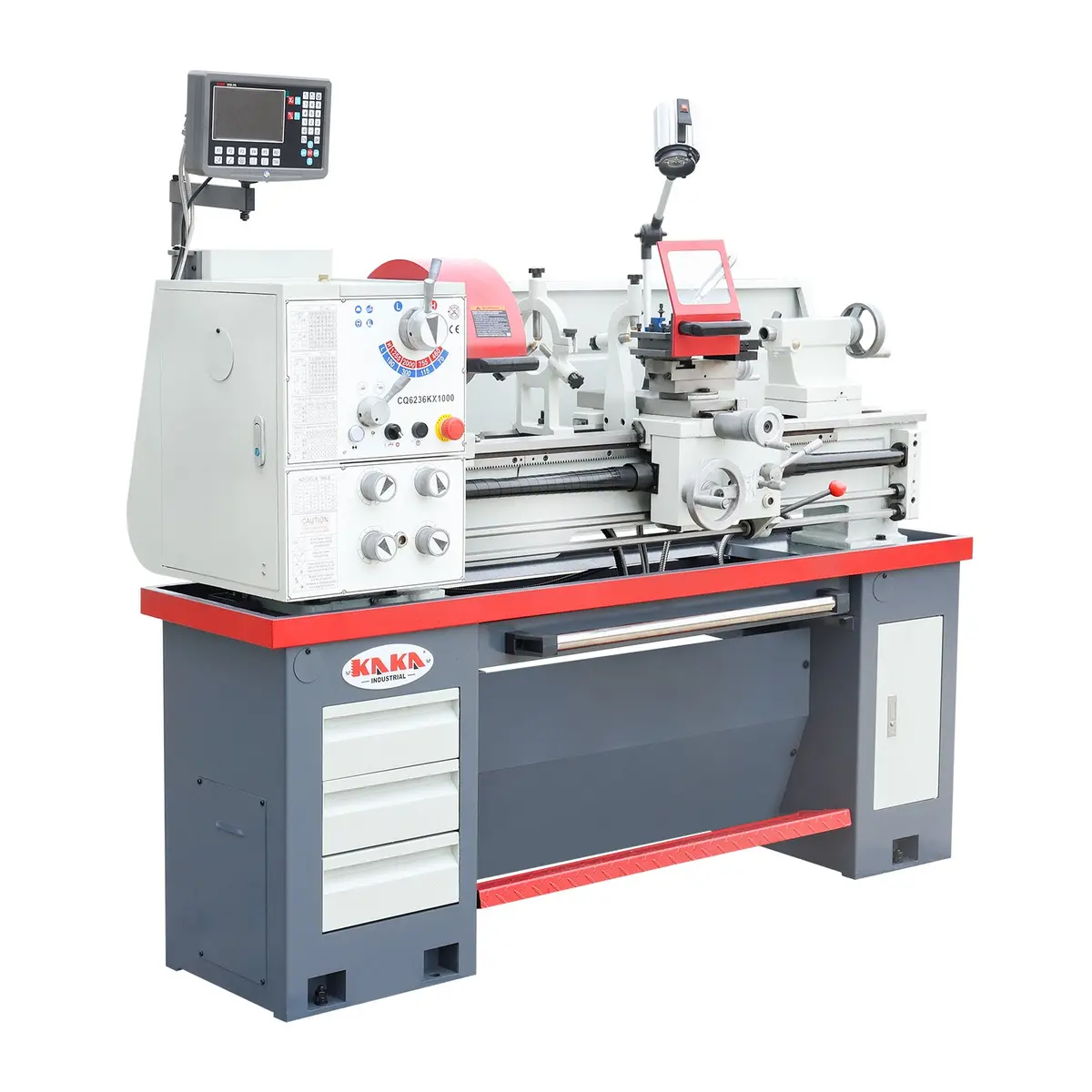

Kang Industrial Center Lathe CQ6236Kx1000
C/W 2-axis DRO
Features
Swing over bed 360mm, and distance between centers 1000mm
Hardened and ground cast iron bed and slide ways
Gear drive headstock
Standard, 3-Jaw Chuck, 4 Jaw Chuck, Fixed steady, travelling steady, face plate, foot brake, cooling system
Specifications
| SKU | 162121 |
| Model | CQ6236Kx1000 |
| Max. swing over bed | 360 mm |
| Max. swing over gap | 502 m |
| Max. turning dia. over cross slides | 224 mm |
| Center distance | 1000 m |
| Spindle speed | 70-2000 rpm, 8 steps |
| Spindle bore dia. | 51 mm |
| Spindle taper | MT5 |
| Longitudinal feed | 0.079-1.291 mm/rev, 36 steps |
| Cross feed | 0.017-1.276 mm/rev, 36 steps |
| Metric thread | 0.4-7 mm, 36 steps |
| Imperial thread | 4-60 TPI, 36 steps |
| Cross slide travel | 160 mm |
| Top slide travel | 76 mm |
| Swiveling angle of turret | ±45 degrees |
| Tailstock quill travel | 100 mm |
| Tailstock taper | MT3 |
| Main motor power | 1.5 kW |
| Packing size | 185x76x140 cm |
| Weight | 560/660 kg |
