Description

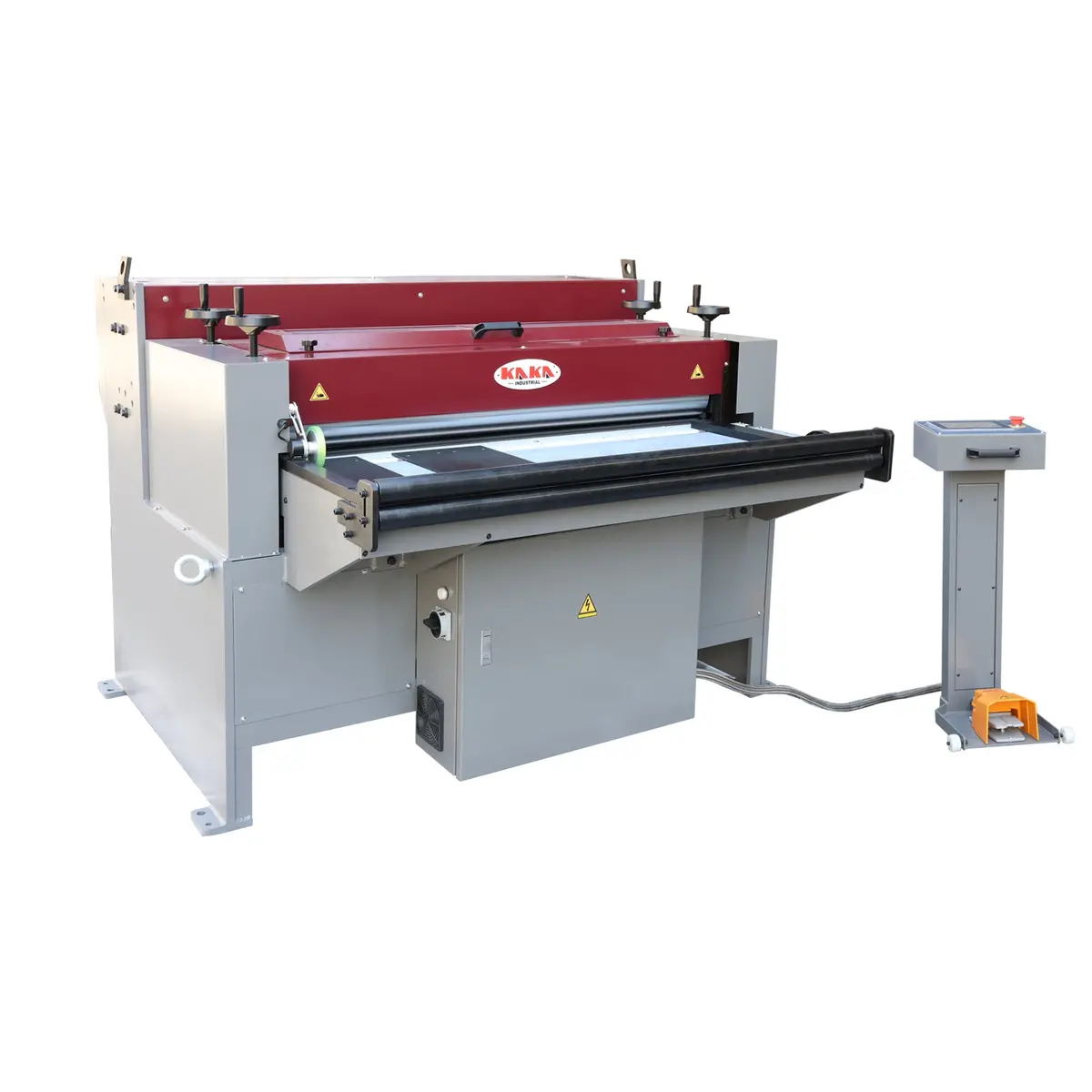

Slitting & CTL Line PS-1220×1.5GT
This compact slitter and blanking line PS-1220×1.5GT, is designed specifically for sheet metal workshops that process mild steel coils up to 1220 mm wide and 1.6 mm thick. It combines slitting, cut-to-length blanking, and stacking in a single efficient machine, ideal for HVAC ducting, cladding, signage, roofing, flashings, custom panels, and general sheet metal fabrication.
Features
Runs on 415V power, industrial grade slitting & CTL Line
Max. 1200mm width
PLC control for cut lengths & quantities
6 sets of adjustable roller cutters
1.5mm Sheet metal capacity
Standard with manual decolier, load up to 2000kg, inner dia. 480-510mm
Large run-out table included
The Slitter & Blaning Line Ideal For
Sheet metal fabricators doing roofing, wall cladding, flashings, fascias, gutters
HVAC duct manufacturers
Signage & display companies
Custom panel & enclosure makers
Workshops that already own a CNC folder but are bottlenecked on blank preparation
Businesses wanting to move from manual guillotine + manual slitting to semi-automatic production
Specifications
| SKU | 172081 |
| Model | PS-1220×1.5GT |
| Motor Power | 2.2 kW (Slitter), 2.2 kW (Cut-to-length) |
| Shear stroke | 35r/min |
| Feed speed | 0-17m/min |
| Decoiler dia. | 480-510 mm |
| Decolier width | 1230 mm |
| Loading capacity | 2000 kg |
| Machine size | 172x107x145 cm |
| Decolier size | 187x88x134 cm |
| Run-out table size | 310x30x25 cm |
| N.W./G.W. | 2100/2270 kg |
