Description

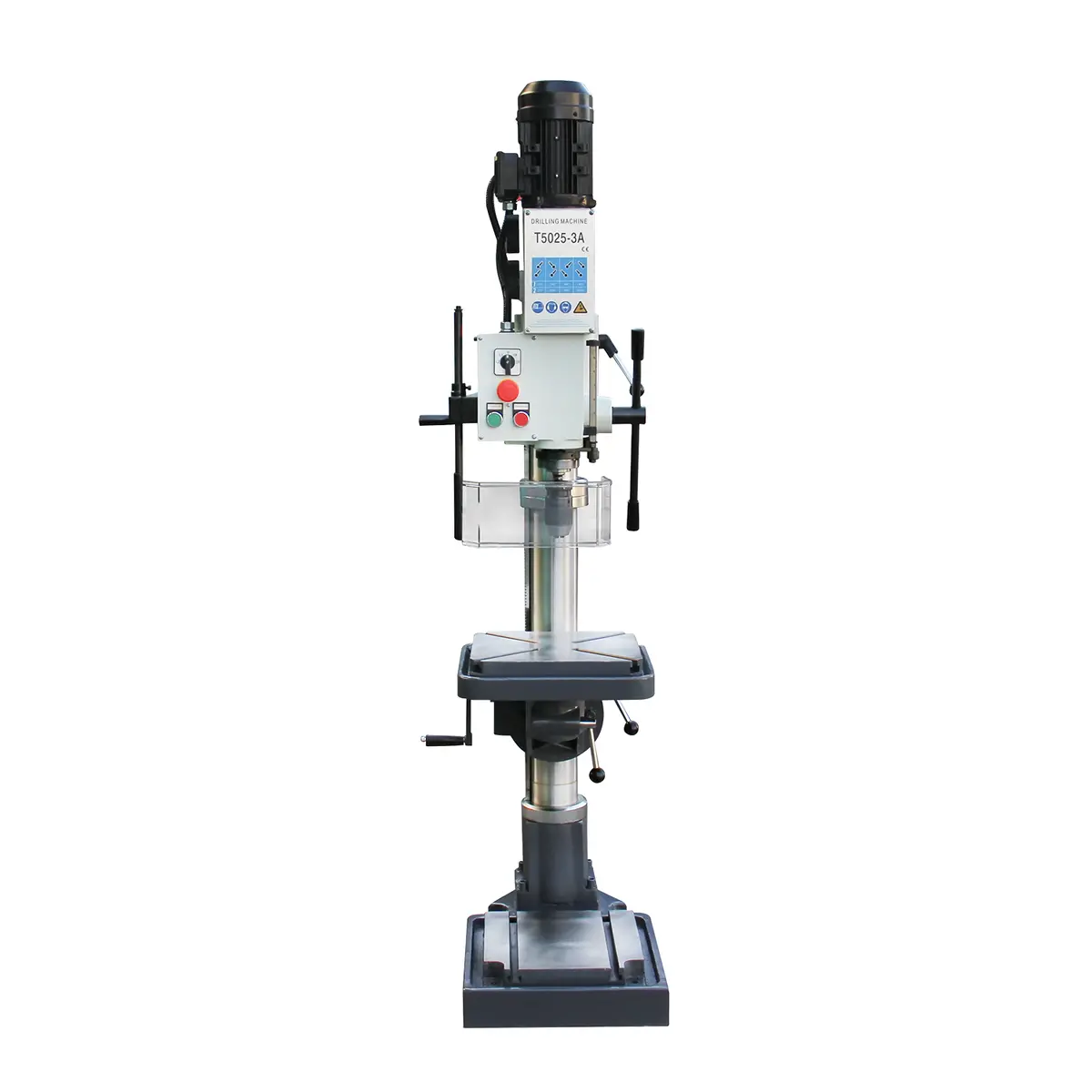

KANG INDUSTRIAL Pillar Drill Machine T5025-3A
The KANG T5025-3A Column Drilling Machine is a robust, gear-driven industrial pillar drill designed for professional metalworking, fabrication, maintenance, repair shops, and machine factories. This heavy-duty column drill excels at precise drilling in steel and other metals, with a maximum drilling capacity of 25 mm in steel.
Industrial-Grade Durability Drill. Gear-driven system and solid column design handle heavy, repeated use without flexing or loss of accuracy, ideal for workshops doing steel fabrication, automotive repairs, or general engineering.
Wide Spindle Speed Range. 8 gear speeds (100–2900rpm) allow optimal performance across small precision holes to larger 25 mm bores, with excellent low-end torque.
Versatile & User-Friendly Column Drill. Rotatable/tiltable table for angled work, generous throat depth 225 mm for larger workpieces.
Safety & Compliance. Protective cover with auto-stop switch meets modern safety standards; robust build reduces vibration and improves finish quality.
Features
Gear drive, 8 different drilling speeds
1HP motor runs on 415V-50HZ-3PH power
Both the head and the working table have eccentric locking for secure positioning
Table tilt left and right up to 50°
Forward / Reverse turning switch
A gauge helps set the drilling depth
Includes a protective guard around the spindle for your safety
Standard with a Keyless Drill Chuck
Optional Coolant System & Coolant
Specifications
| SKU | 190042 |
| Model | T5025-3A |
| Spindle speed | 100, 205, 345, 440, 690, 885, 1450, 2900 rpm |
| Max. drilling dia. | 25 mm |
| Max. spindle travel | 140 mm |
| Morse taper | MT3 |
| Motor power | 0.55/0.75 kW |
| Spindle nose to column | 225 mm |
| Spindle nose to table | 600 mm |
| Spindle nose to base | 1075 mm |
| Table size | 315×275 mm |
| Base size | 305×297 mm |
| Packing size | 166x60x46 cm |
| N.W./G. W. | 249/279 kg |
