Description

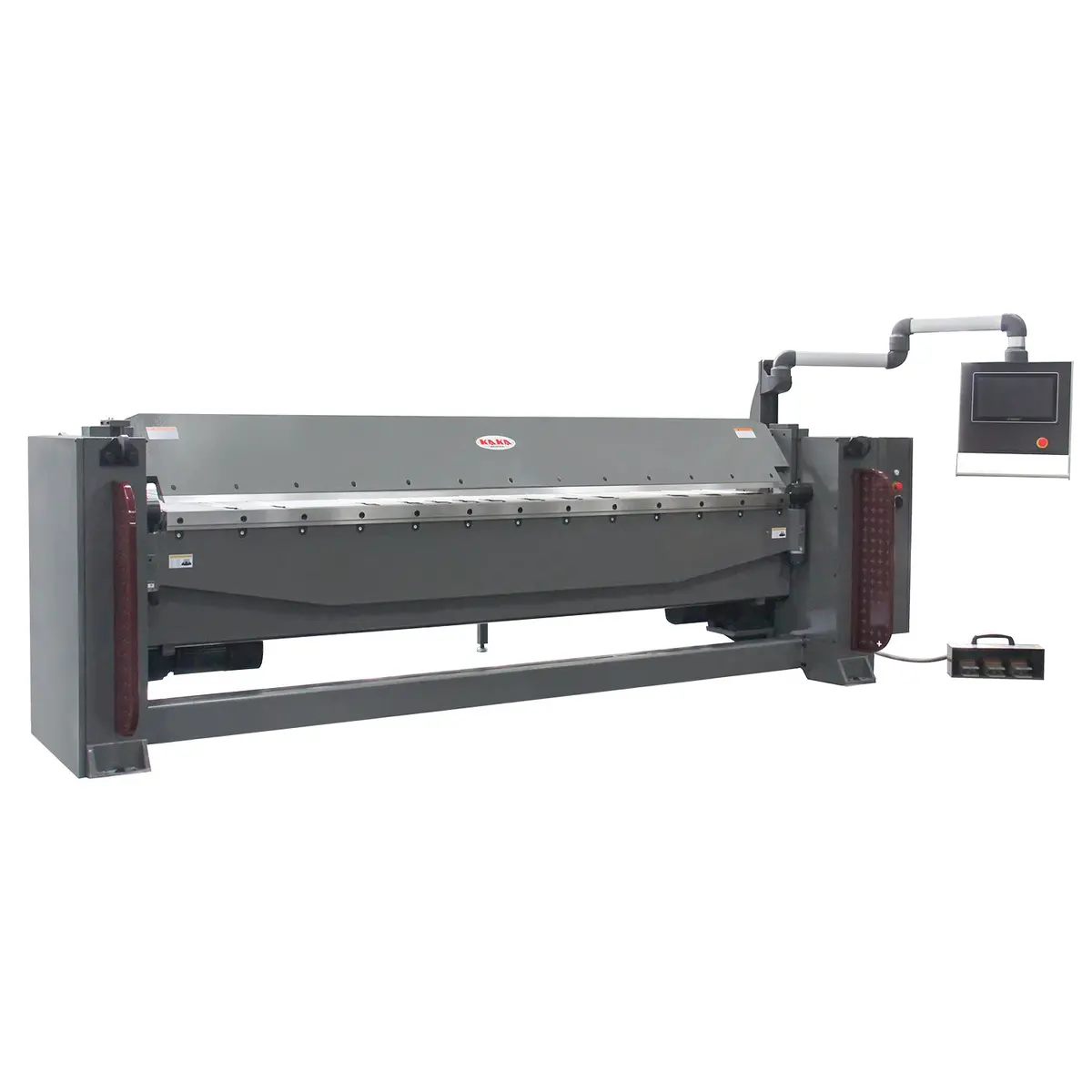

CNC Sheet Metal Folding Machine
The KANG TFM3100x2E is a professional-grade, electromechanical sheet metal folding machine designed for high-volume, demanding production environments. Built with a robust all-welded steel frame (extra-strong lower beam, clamping beam, and sides), it delivers fast, precise, and repeatable folding with minimal maintenance thanks to its maintenance-free bearings. Ideal for Australian workshops, fabricators, roofers, HVAC installers, signage makers, and metal cladding specialists
Lightning-Fast & Easy to Operate Bender. Program once and run high-tempo production. The intuitive CNC control and quick-change bayonet folding rails cut set-up time dramatically compared to manual brakes or press brakes.
Perfect, Consistent Folds Every Time. Adjustable crowning compensates for material thickness and length variations, giving razor-sharp hems and bends across the full 3.1 m length, ideal for long roofing cappings, flashings, gutters, and architectural panels.
Built for Australian Conditions. Heavy-duty engineering handles the tough materials used in Aussie construction (Colorbond, zinc, marine-grade aluminium). Solid lower beam prevents dimples when hemming soft metals.
Huge Flexibility for Complex Bending Work. 125 mm opening height + generous recesses folding beam let you create deep channels, hat sections, boxes, and multi-stage profiles without extra tooling swaps.
Safer & More Productive Bender. Motorised backgauge, moveable foot pedal, and optional safety scanner keep operators safe and efficient.
Space-Saving Yet Powerful. Delivers press-brake-level performance in a compact folding format, great for workshops where floor space is at a premium.
Features
Fully CNC-controlled, HMI-friendly operation
Max. bend 2mm thick plate at the full width, 3100mm width
Up to 2000 programs of storage, meet different bending requests
Design the bending on the touch screen immediately
The brake motor for clamping and bending, the machine will stop immediately at a pre-set angle
Bend Gutter, Drip Edge, CAP, Bump, etc.
Best for
Roofing & cladding contractors, sheet-metal fabricators, HVAC ductwork, custom signage, caravan & trailer builders, and architectural metalwork shops
Specifications
| SKU | 173351 |
| Model | TFM3100x2E |
| Bending mild steel | 2.0 mm |
| Bending stainless steel | 1.2 mm |
| Bending width | 3100 mm |
| Max. bending angle | 0-135 degrees |
| Bending leaf speed | 50°/s |
| Beam opening height | 125 mm |
| Beam clamping | 20 mm/s |
| Min. reverse bend | 12.7 mm |
| Max. table back gauge distance | 1220 mm |
| Min. table back gauge distance | 12.7 mm |
| Back gauge repeatability | 0.1 mm |
| Feeding speed | 120 mm/s |
| Back gauge table height | 910 mm |
| Main motor | 3.0 kW |
| Servo motor for the back gauge | 1.5 kW |
| Clamping motor | 1.1 KW |
| N.W./G.W. | 4280/4465 kg |
| Packing size | 434x201x160 cm |
