Description

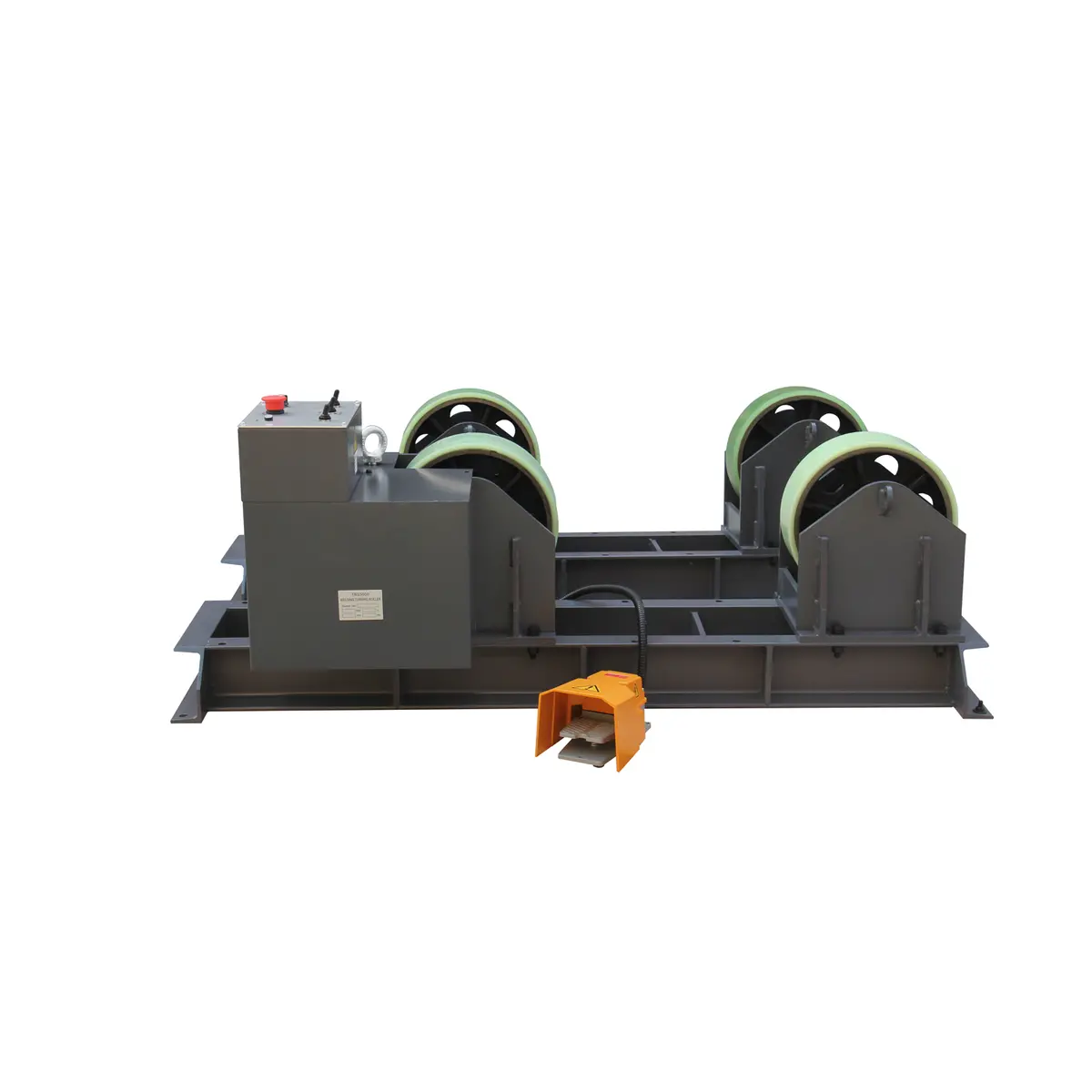

KANG INDUSTRIAL TRS5000 Motorised Turn Roller for Tube/Pipe Welding
The KANG Welding Rotator TRS5000 with adjustable polyurethane rollers is a professional-grade, self-aligning style welding rotator designed for safe, precise rotation of cylindrical workpieces during welding, assembly, or cladding operations. Ideal for metal fabrication shops, tank and pressure vessel manufacturers, pipework specialists, and heavy industrial maintenance. It consists of a drive unit and an idler unit, with rollers manually adjustable via handwheel to accommodate varying workpiece diameters. The adjustable polyurethane rollers provide excellent grip while protecting delicate or painted surfaces from scratches/marks.
Workpiece Protection & Versatility Turn Roller. Adjustable polyurethane rollers conform to the workpiece, preventing damage to stainless steel, painted tanks, or thin-walled vessels while ensuring non-slip rotation.
Precise Speed Control. Infinitely variable speed (0–1,745 mm/min) allows perfect synchronization with welding processes (e.g., TIG, MIG, submerged arc) for consistent, high-quality circumferential welds without defects.
User-Friendly & Safe Rotating. Foot pedal control enables hands-free operation; low-speed start and reversible rotation make positioning effortless and reduce operator fatigue/risk.
Reliable Quality Rotator. Superior build quality, longevity, and low maintenance, durable equipment.
Suitable for Aussie Workshops. Handles common tasks like welding pressure vessels, wind towers, silos, pipe sections, or custom cylinders; 415V three-phase is widely available in commercial/industrial settings.
Features
Runs on 240V power, accepts pipe OD 304-2438mm
Large loading capacity, up to 5 tonnes
Metal Rollers with a polyurethane cover to protect the workpiece’s surface
Variable rotation speed
Low-voltage hand control ensures user safety with reduced voltage operation
Standard foot pedal control to enhance operational efficiency and provide convenience
Stand one drive roller and one Idler roller
APPLICATIONS: Tanks, pressure vessels, and pipes, specially designed to accommodate a variety of industrial settings and application requirements
OPTIONAL IDLE SUPPORT AT EXTRA COST
Specifications
| SKU | 178334 |
| Model | TRS5000 |
| Max. loading capacity | 5000 KGS |
| Workpiece dia. | 304-2438 mm |
| Wheel size | OD 305×100 mm |
| Rotation speed | 0-1745 mm/min |
| Motor power | 500W |
| N.W./G.W. | 325/370 kg |
| Packing size | 150x105x70 cm |
