Description

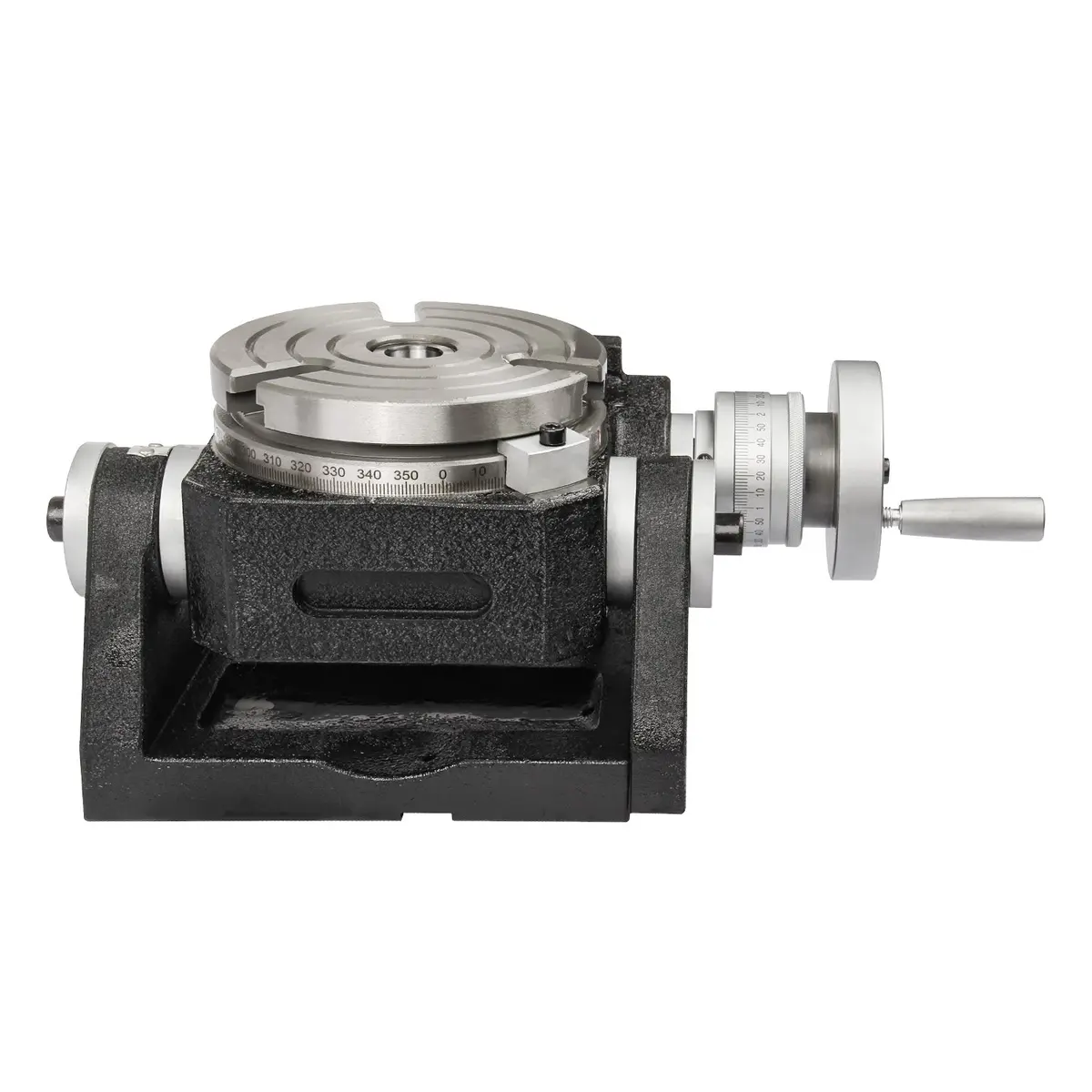

Kang Industrial Tilting Rotary Table TSK-5
The TSK-5 Tilting Rotary Table is a high-precision machining tool designed for versatile positioning in workshop operations, allowing seamless tilting from horizontal to vertical orientations. It features a hardened and ground worm gear with a 72:1 ratio, ensuring smooth and accurate rotations where one turn of the handle advances the table by 5 degrees. The table is fully graduated 360 degrees, with a micro collar calibrated in 2-minute increments for fine adjustments. Its tilting mechanism supports a 0-90 degree range, making it ideal for angular machining tasks.
Dual-Axis Versatility Workpiece Holding Table. Unlike standard horizontal/vertical tables, the “Universal Tilting” feature eliminates the need for separate angle plates. You can transition from a flat milling job to a 45-degree angle boring task in seconds.
Compact for Small Mills. Its low profile makes it ideal for the benchtop milling machines popular in home workshops, where Z-axis clearance is often limited.
Industrial Build Quality Tilting Table. High accuracy and durability c. The hardened and ground worm gear ensures minimal backlash.
Rigid Locking Rotary Table. It utilizes a dual-screw locking system for the tilting arc, ensuring the table remains rock-steady even under heavy cutting loads.
Features
Tilting Mechanism: Features a tilting range of 0° to 90° (horizontal to vertical), allowing for angled cuts and hole patterns.
Indexing Precision: The worm gear ratio is 72:1. One full 360° turn of the handwheel rotates the table by 5°. The micro collar is graduated in 2-minute increments, and a vernier scale allows for readings down to 10 seconds.
Capacity: The table diameter is 127mm (4 inches), featuring 3 T-slots for secure workholding.
Internal Taper: Comes with an MT2 (Morse Taper 2) center bore, enabling the use of standard collets or centers
Specifications
| SKU | 162315 |
| Model | TSK-5 |
| Table dia. | ø 127 mm |
| Morse taper of the center hole | MT2 |
| Width of T-slot | 12 mm |
| Modules of worm and worm gear | 1 |
| Width of the locating key | 16 mm |
| Adjacent angle of T-slot | 120° |
| Transmission ratio of the worm gear | 1:72 |
| Gradation of the table | 360° |
| Tilting angle | 0~90° |
| Readout of the handwheel | 1″ |
| Min. value of vernier | 10″ |
| Min. reading of tilting vernier | 1° |
| Indexing accuracy | 60″ |
| Packing size | 32x12x19 cm |
| N.W./G.W. | 17/19 kg |
Installation sketch and dimensions
Unit: mm
| A | B | C | D | F | H | L | M | P |
| 145 | 170 | 160 | 127 | 115 | 85 | 140 | MT2 | 50 |
