Description

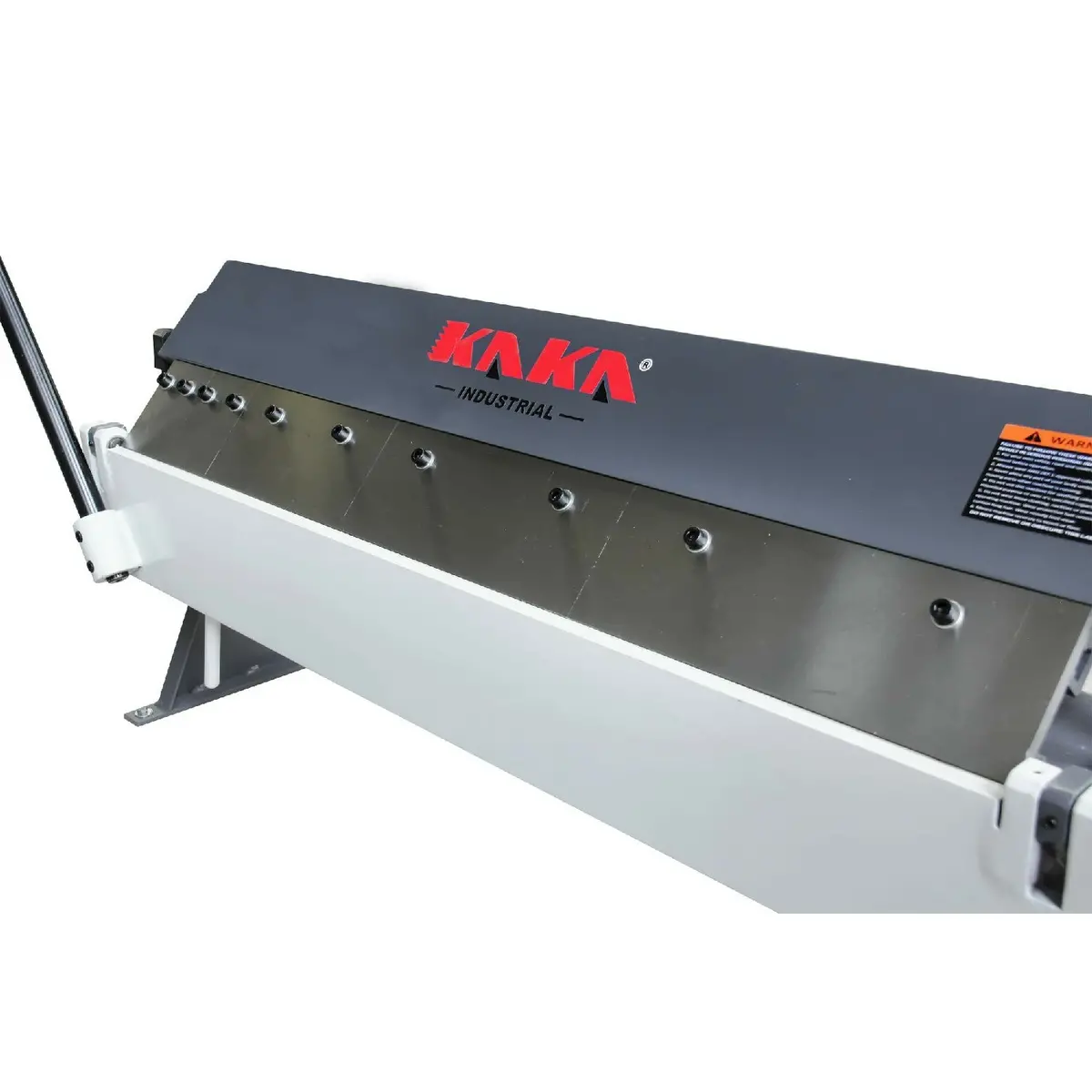

KANG Industrial Manual Panbrake W-3616Z
The KANG W-3616Z is a manual panbrake folder (also known as a Box and Pan Brake) designed for bending sheet metal up to 915×1.5mm. It is built to high standards using a rugged plate steel construction and an electro-welded framework to ensure minimal flex and precise angle control, even when operating at full capacity. The machine features segmented, removable fingers to allow for the creation of complex enclosed shapes.
Robust Construction Panbrakes. The most significant advantage is the rugged plate steel construction and electro-welded framework. This superior build quality is designed to maintain accuracy and prevent the beam from flexing or twisting, ensuring crisp, accurate bends across the full 915 mm width.
High-Capacity and Length Folding Machine. The metal bender combines a substantial working length of 915mm with a heavy-duty capacity of 1.5 mm mild steel (full width), making it versatile for both large panels and thicker materials.
Box and Pan Functionality. Includes an assortment of 6 removable fingers (1*25.4mm, 1*50.8mm, 1*76.2mm, 1*203.2mm, 1*254 mm, and 1*305 mm) that allow for the easy creation of fully enclosed boxes, pans, trays, and special profiles, a capability not possible with a straight brake.
High-Angle Bends. Capable of bending sheet metal up to 135 degrees, which is essential for creating acute angles, compensating for material spring-back, and forming closed seams or hems.
Counterweight Assist Bending: A heavy counterweight helps the operator lift the apron, reducing physical strain, especially when bending thick material at full capacity.
Adjustable Setback Metal Bender. Manual setback adjustment on both sides of the brake, allowing precise setting for different material thickness.
Features
Steel fabricated construction manual panbrake
Max. bend 1.5 mm thick plate at the full width of 915 mm
Bending angle up to 135°
Easily adjust the clamp for different thick plates
6 different sizes of fingers are 25.4mm, 50.8mm, 76.2mm, 203.2mm, 254 mm, and 305 mm
Finger setback adjustment to increase bending radius for thicker materials
Specifications
| SKU | 173122 |
| Model | W-3616Z |
| Bending length | 915 mm |
| Bending width | 1.5 mm |
| Bending angle | 0-135° |
| Packing size | 117x40x58 cm |
| N.W./G.W. | 106/123 kg |
