Description
KANG Industrial Manual Plate Curving Rolls W01-4022

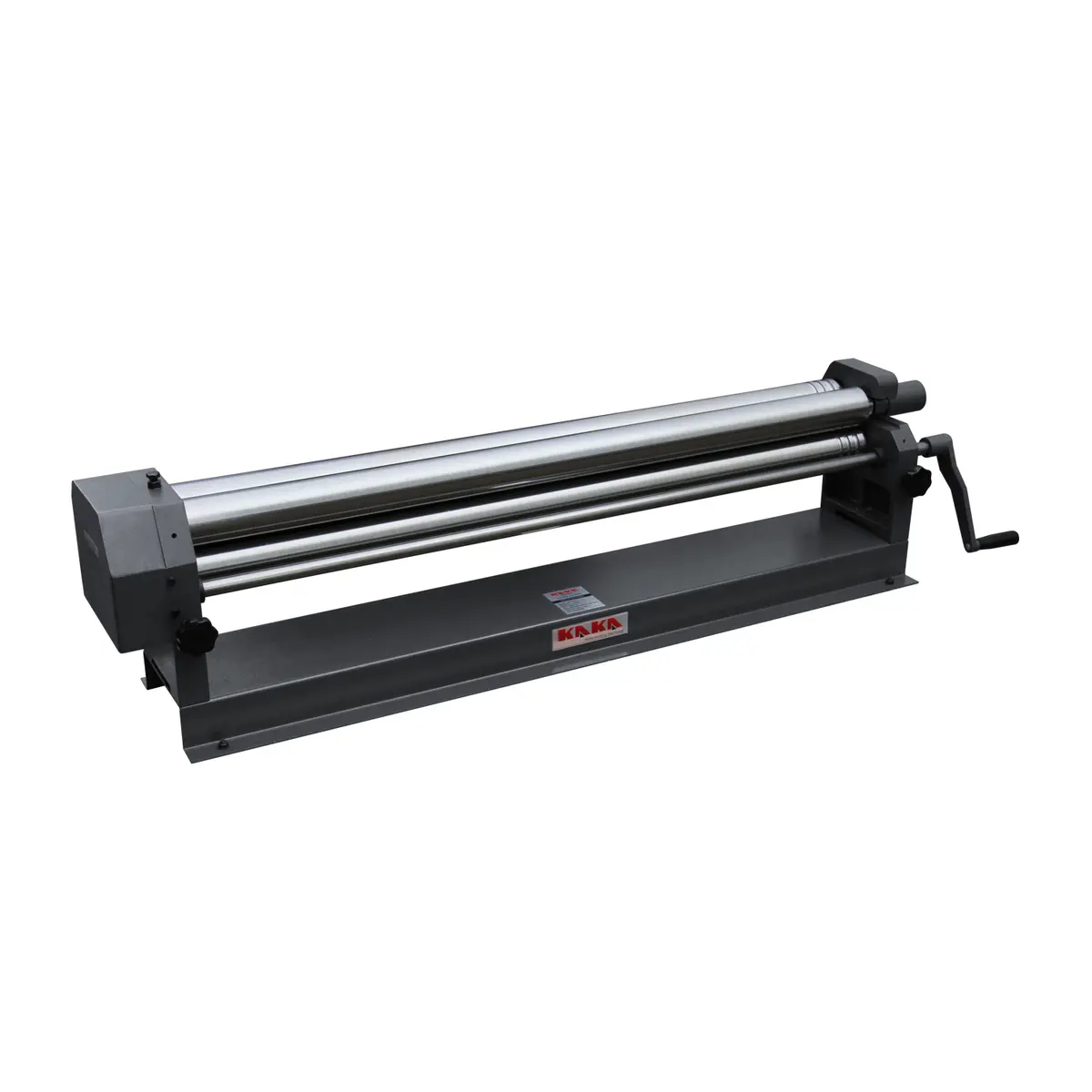

The KANG Sheet Metal Plate Curving Roller 1000 mm (model W01-4022) is a robust manual benchtop sheet metal roller designed for forming smooth curves, radii, tubes, cones, cylinders, and half-round shapes from metal sheets. It features a heavy-duty cast iron frame mounted on a stable steel sheet base, with three steel rollers (50 mm diameter) that include grooves for wire rolling. The upper roller tilts for easy workpiece removal, while the front and rear rollers are independently adjustable for precise cone bending. Operation is fully manual via a side crank, making it electricity-free and ideal for workshops or mobile use. With a generous 1000 mm working width and capacity for mild steel up to 0.8 mm thick.
High-Capacity 1-Metre Width. The generous 1000 mm working width allows you to handle standard sheet metal stock sizes, minimizing waste and maximising the scope of projects like custom ducting, larger cylinder construction, and architectural metalwork.
Durable & Stable Construction. Cast iron frame and steel base provide excellent rigidity and vibration-free operation, built to handle the tough demands of Australian trades and workshops
Integrated Wire Rolling Grooves. Equipped with dedicated grooves on the rollers for forming wire, adding extra functionality and value for diverse shop tasks.
Adjustable Conical Rolling. The front and back rollers can be adjusted separately, allowing you to precisely set the gap for creating conical (tapered) workpieces—a crucial feature for advanced fabrication.
Effortless Workpiece Removal. The design allows the upper roll to tilt over, facilitating quick and easy removal of finished, rolled cylindrical workpieces without obstruction.
Features
Robust construction manual sheet metal plate curving rolls
0.8×1000 mm mild steel capacity plate curve roller
Fine grind rolls with 3 grooves for wire rolling
Durable cast iron end frames for long-term use
Specifications
| SKU | 174004 |
| Model | W01-4022 |
| Max. thickness | 0.8mm |
| Max. width | 1000mm |
| Dia. of roll | 50mm |
| Packing size | 145x32x52 cm |
| N.W./G.W. | 86/105 kg |
