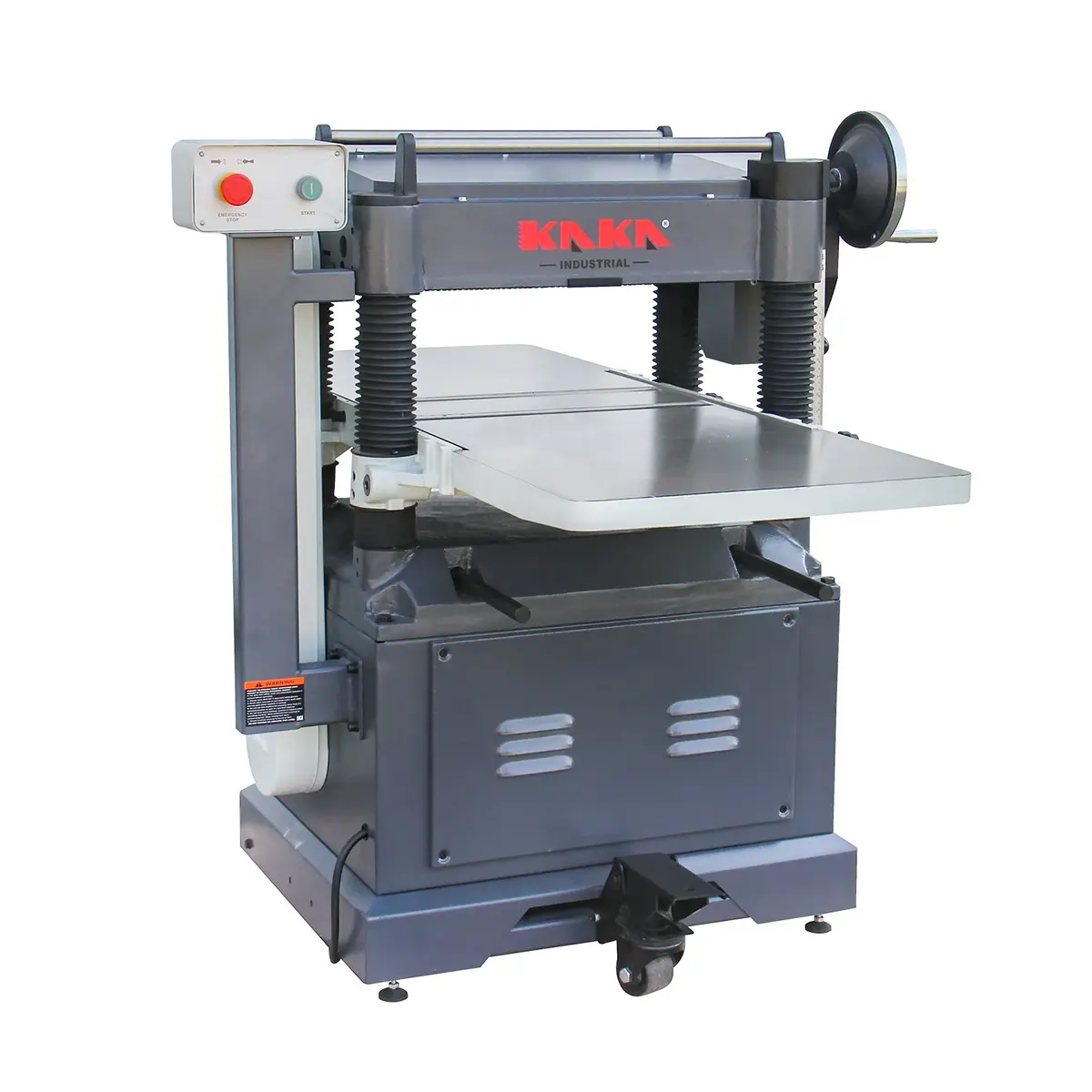

Wood Thicknesser WDP-5520 C/W Spiral Cutterhead
The WDP-5520 is a heavy-duty 20″ (508mm) thicknesser/planer. It’s built for professional and serious hobbyist woodworkers, featuring a premium helical (spiral) cutterhead with 98 indexed carbide inserts for superior finish quality, reduced noise, and minimal tear-out—especially on figured or interlocking Australian hardwoods like jarrah, blackwood, or Tasmanian oak. Available in single-phase 3HP (240V) configurations, it runs at 4,800 RPM with a two-speed gearbox offering feed rates of 30 rpm or 40 rpm for optimal control over different timbers.
Helical Cutterhead Excellence. The 98 carbide inserts (14x14x2mm) deliver exceptionally smooth, quiet cuts with far less tear-out and chatter than straight-knife planers, reducing sanding time and improving finish quality right off the machine.
Heavy-Duty Build Wood Thicknesser. Massive cast iron tables/extensions handle large, heavy slabs or rough-sawn stock without snipe or deflection, while the four-post system ensures precision at any height, ideal for furniture makers, boat builders, or slab work in variable Aussie humidity.
User-Friendly & Efficient. Two-speed feed, quick-change indexed inserts (no full sharpening needed), adjustable rollers, and large dust port integrate seamlessly with standard Australian extractors — promoting cleaner, healthier workspaces and faster workflow.
Feature
3 HP Powerful motor runs on 240V Power
Max. cut 500×200 mm timber
Max. cutting depth up to 3 mm
Heavy cast iron table raises and lowers on four precision-ground columns
Two feeding speed 30rpm, 40 rpm
Cutterhead speed up to 4800 rpm
100mm dust port, could use Kang Industrial Dust Collector DC900
Specifications
| SKU | 473060 |
| Model | WDP-5520 |
| Max. cutting width | 500 mm |
| Cutting thickness | 5-200 mm |
| Max. cutting depth | 3 mm |
| Cutterhead type | Spiral cutterhead |
| Cutterhead speed | 4800 rpm |
| Insert size type | 14x14x2 mm, 98 indexable carbide |
| Feed rate | 30 rpm, 40 rpm |
| Motor power | 2.2 kW |
| Table size with extensions | 1410×508 mm |
| Packing size | 109x87x125 cm |
| N.W./G.W. | 380/450 kg |
