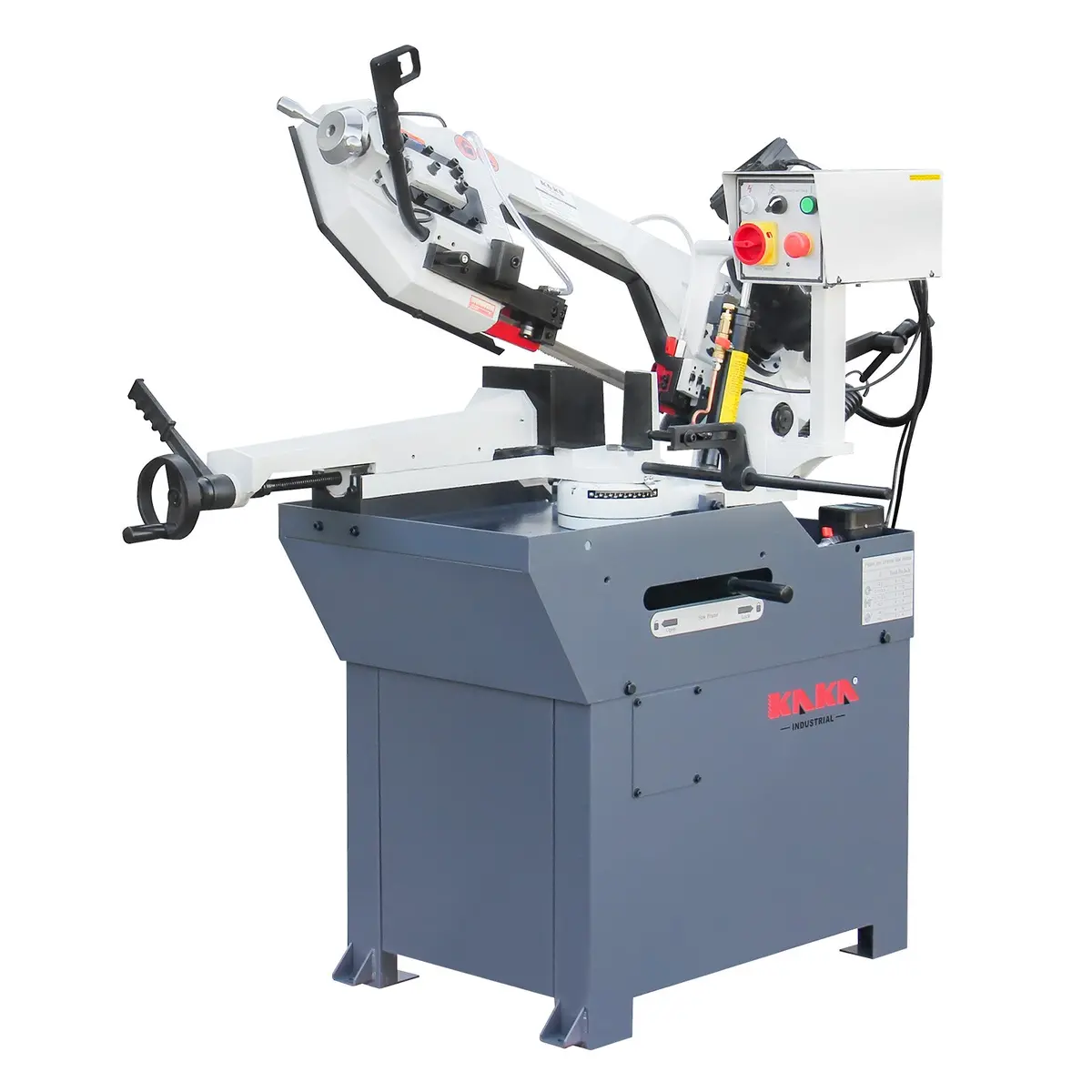

Swivel Head Band Saw BS-108G
Tackle pipes, bars, and profiles with ease using the KANG BS-108G Metal Band Saw, a compact, precision swivel frame bandsaw for medium-duty fabrication and maintenance. This horizontal bandsaw offers adjustable mitre cuts up to 60 degrees. A single-phase motor makes this bandsaw suitable for home use, DIY projects, and the industrial workshop. With its user-friendly design and efficient coolant system, the bandsaw BS-108G delivers clean, burr-free cuts while keeping your workshop tidy, the reliable choice for auto shop, metal worker or DIY pros seeking professional results.
Adjustable Mitre Cutting: Swivel frame bandsaw, swivel from 0 to 60 degrees for versatile straight and angled cuts on RHS, CHS, Solid bar, etc, perfect for pipe fittings or structural work.
Generous Cutting Capacity: Handles workpieces up to OD 227mm round or 260x200mm rectangular at 90 degrees, making it suitable for heavy-duty workshop tasks involving bars, tubes, and profiles.
Precision and Accuracy: Equipped with a carbide blade guard, ensures accurate tracking and extended blade life.
Robust Construction Band Saw: Heavy-duty frame ensures vibration-free operation and long-term reliability.
Integrated Coolant System: Built-in coolant pump with adjustable nozzles, efficient chip flushing, and blade cooling for smoother cuts and minimal heat distortion, prolongs blade sharpness.
Features
Runs on 240V single-phase power, industrial or home use, metal cutting saw
Swivel head, mitres up to 60 degrees for angle cutting
Quick action lever lock/release the swivel head
Gear drive saw, powerful metal cutting
The hydraulic control saw frame descends
Bi-Metal Bandsaw Blade (Pre-installed, 27×0.9x2455mm, TPI 5/8)
Optional TPI 6/10 Blade
Optional Coolant
Specifications
| SKU | 188017 |
| Model | BS-108G |
| Cut circular @90 ° | 227 mm |
| Cut rectangular @90 ° | 260×200 mm |
| Cut circular @60° | 90 mm |
| Cut rectangular @60° | 85×85 mm |
| Cut circular @45° | 150 mm |
| Cut rectangular @45° | 150×125 mm |
| Vice table height | 845 mm |
| Blade speed | 68 MPM |
| Blade size | 27×0.9×2455 mm |
| Motor power | 1.1 kW |
| Drive | Gear |
| Packing size | 145x72x102 cm |
| N.W./G.W. | 220/275 kg |
