Description

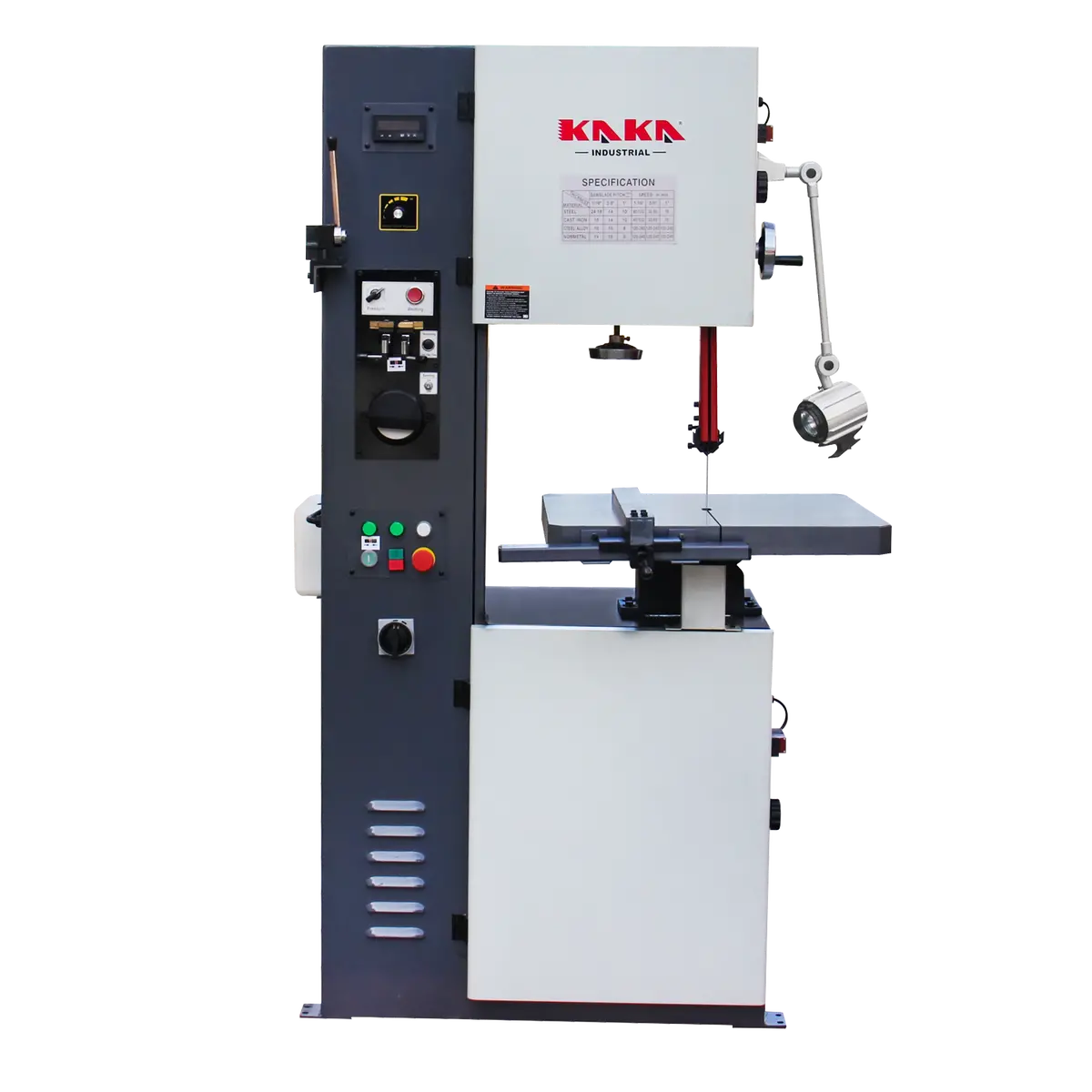

KANG Industrial Vertical Band Saw VS-1611
The Metal Cutting Vertical Bandsaw VS-1611, is a robust, variable-speed vertical bandsaw for industrial metalworking. It’s designed for precision contour, shape, and straight cuts in ferrous/non-ferrous materials like steel, aluminum, and profiles. As a vertical model, it prioritizes manual or jig-guided operations on flat or irregular stock
Robust Industrial Frame Vertical Saws. Heavy-duty construction with precision bearings for vibration-free, continuous heavy-duty operation on tough materials.
Variable Speed Control Bandsaw. Infinitely adjustable from 15-260 MPM via a dial—perfect for optimizing cuts on metals (e.g., low speeds for stainless steel, high speeds for aluminum).
Large Work Area. 400 throat depth (resaw height up to 285mm) and tilting table (45° right / 15° left) support oversized or angled workpieces
Enhanced Visibility and Efficiency. Adjustable work light; air-assisted swarf (chip) removal to keep the work area clear.
Integrated Blade Maintenance. Built-in all-in-one station with blade shear, butt welder (3–16 mm capacity with annealing), and grinder—allows on-site blade fabrication/repair to cut costs and downtime.
Features
2HP motor runs on 240V power
Width 400 mm throat depth
Max. cutting thickness up to 285 mm
Accept 3-16 mm width blade
Cast iron table, tilt left to right
Standard with a fully integrated blade welder, built-in grinder for finishing the weld joint
Air blowdown system cools the blade and keeps the saw clean
Halogen work light as standard
Specifications
| SKU | 188201 |
| Model | VS-1611 |
| Max. cutting height | 285 mm |
| Max. cutting width | 400mm |
| Table size | 550×600 mm |
| Table height | 970 mm |
| Blade speed | 0-1400 rpm |
| Length of saw blade | 3390-3467 mm |
| Blade width | 3-16 mm |
| Table tilt | R-45°, L-15° |
| Main motor/ Grinder Motor | 1.5 kW/0.09 kW |
| Electric welder | 2.4 KVA |
| Packing size | 108x80x200 cm |
| N.W./G.W. | 310/380 kg |
