Description

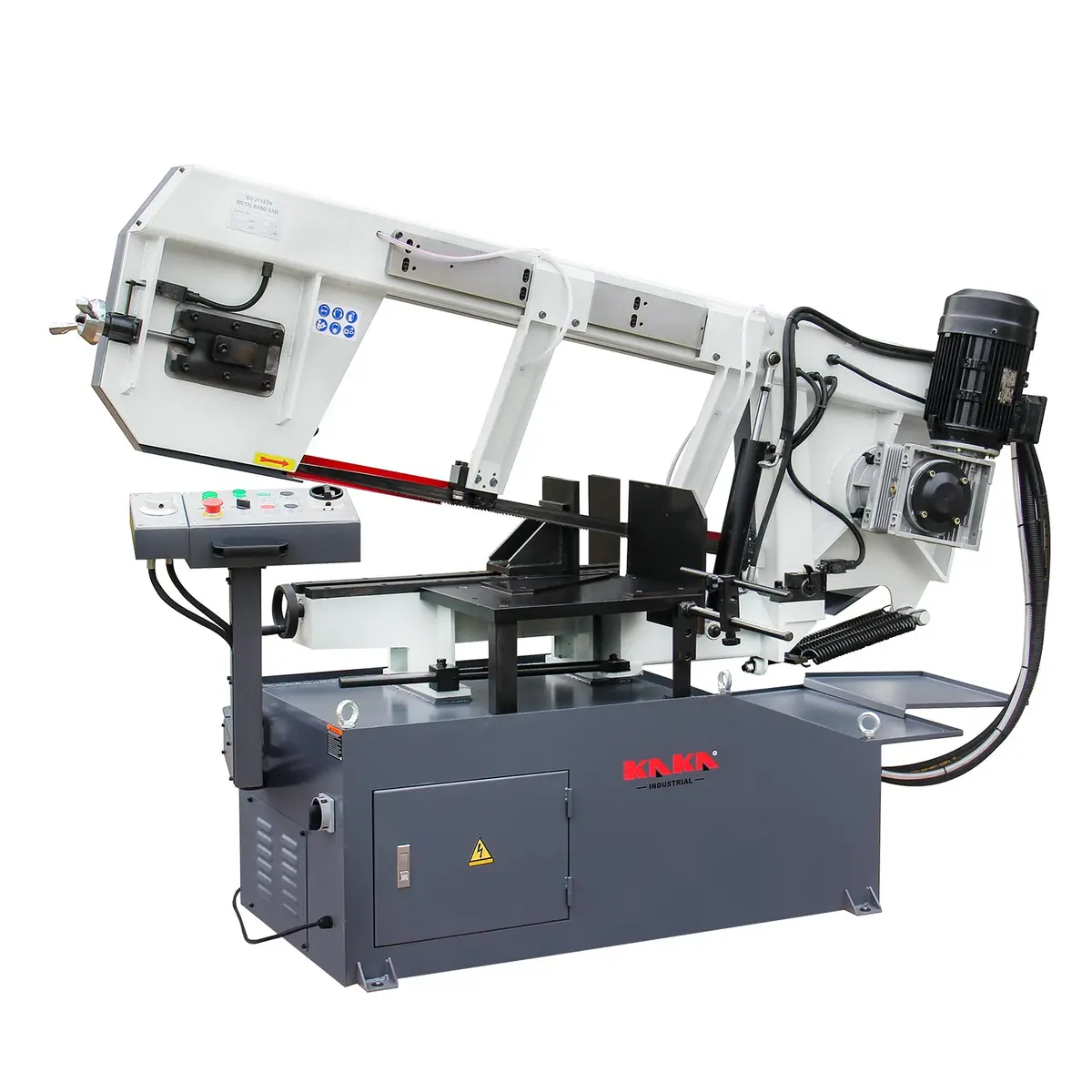

KANG Industrial BS-2114TH Band Saw
Dominate large-scale metal fabrication with the BS-2114T Pivot-Type Mitre Band Saw, engineered for precision mitre cuts up to 60 degrees. This robust horizontal bandsaw handles oversize workpieces up to 400mm round or 550×360 Rectangular at 90 degrees, and handles structural steel, RHS, SHS, with single mitre precision up to 60 degrees, featuring semi-auto hydraulic lift for effortless operation. Perfect for fabrication shops, construction sites, or in-house cutting, it delivers burr-free, accurate cuts every time.
Single Mitre Swivel Frame up to 60 degrees: Effortless manual swivel frame for precise angled cuts on round, rectangular and square stock, no material flipping required.
Semi-Automatic Operation: Hydraulic saw frame lift via intuitive push-button control panel, with automatic return for cycle after cycle without manual effort.
Blade Protection & Guidance: Pre-installed a Bi-Metal Bandsaw blade (34×1.1x4405mm), error-free tensioning via limit switch, blade break micro-switch for instant shutdown, and precision bearing guides for straight tracking and longevity
User-Centric Design: The heavy-duty bandsaw features a movable pendant control panel for flexible positioning, spring-balance saw frame return; adjustable stroke limits for repeat cutting; and pre-machined cutting plates for optimal performance
Heavy-Duty Gearbox Drive Bandsaw: The BS-2114T features a gear drive, transfers power from the motor to the blade wheels. Massive torque at low speeds ensures the blade can go through thick solid steel or big RHS, SHS, without bogging down or stalling.
Built-in Coolant System: The bandsaw integrated a coolant pump & tank and brass valves flushed chips and lubricated the blade, lowering temperatures to prolong Bi-Metal Saw Blade life and improve surface finishes.
Features
Runs on 415V-3PH power, double-speed motor
Swivel saw frame, mitres up to 60°
Sliding vice with quick clamp
The control box is fixed on a swivel arm and is easy to operate.
2 cutting speeds, powerful gear drive bandsaw machine
Built-in coolant system extends the life of the blade
The hydraulic saw frame goes up and down
7 Litre ISO 46 Hydraulic Oil is needed to make the saw frame go up and down.
Bi-Metal Saw Blade (Pre-installed, 34×1.1×4405 mm, TPI 3/4)
Optional TPI 4/6 Bi-Metal Saw Blade
Optional Coolant
Optional Hydraulic Oil (20L)
Specifications
| SKU | 188066 |
| Model | BS-2114TH |
| Cut circular @90° | ø 400 mm |
| Cut rectangular @90° | 500×360 mm |
| Cut circular @60° | ø150 mm |
| Cut rectangular @60° | 250×200 mm |
| Cut circular @45° | ø 340 mm |
| Cut rectangular @45° | 400×340 mm |
| Vice table height | 725 mm |
| Blade speed | 48/70 MPM |
| Balde size | 4405x34x1.1 mm |
| Motor power | 2.2/2.8 kW |
| Drive | Gear |
| Packing size | 230x83x158 cm |
| N.W./G.W. | 630/760 kg |
