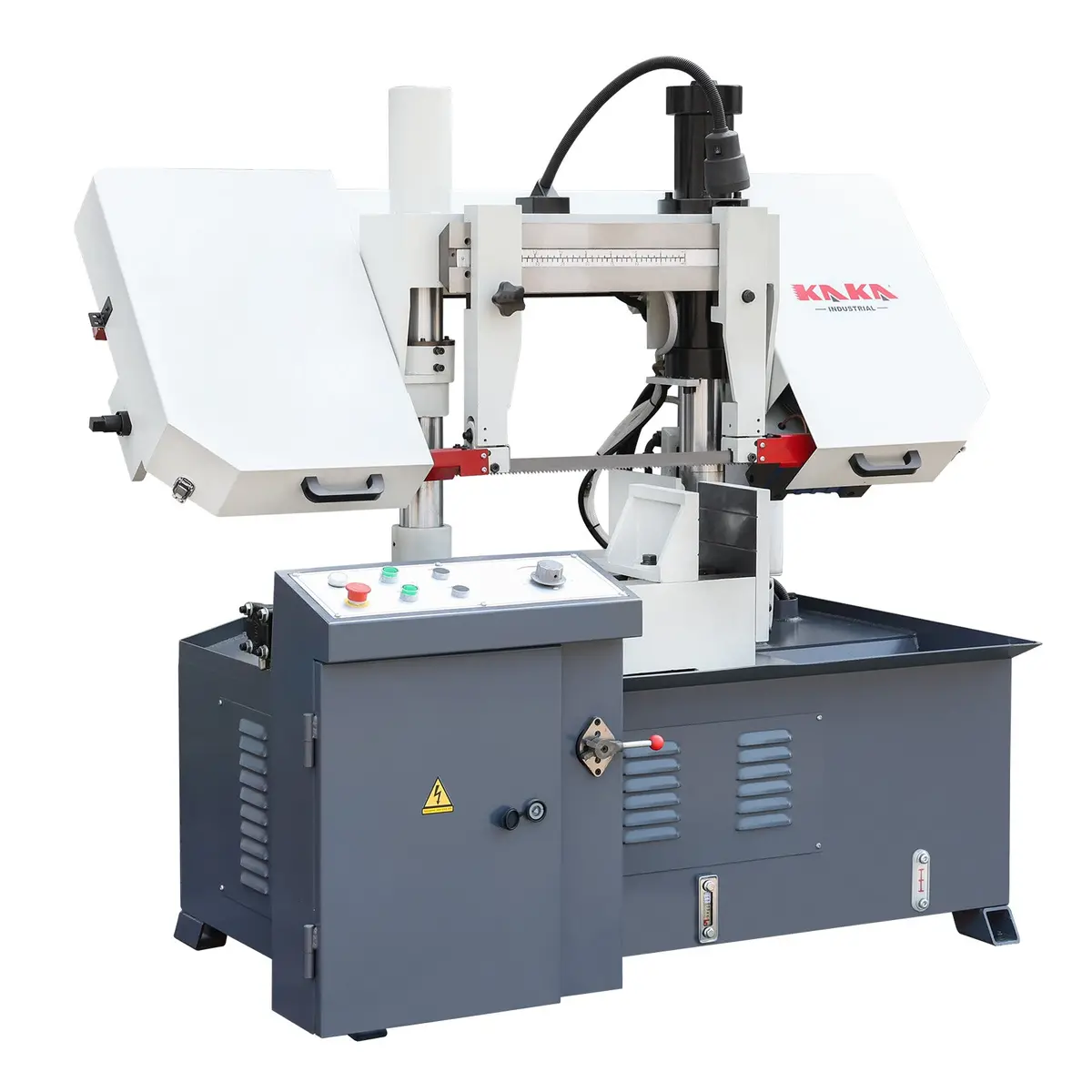

KANG Industrial Double Column Band Saw TBK-11A
The KANG TBK-11A is a powerhouse of precision, engineered for workshops that demand excellence in metal fabrication. The bandsaw machine is a double-column guidance system, which ensures the saw frame descends with absolute rigidity, eliminating the “chatter” or deflection often found in pivot-style saws. This makes it the ideal solution for processing thick blocks of solid steel, cast iron, and non-ferrous metals. Equipped with a robust 3.0 kW motor and a 3-speed V-belt drive, the TBK-11A allows users to match cutting speeds (27, 45, or 69 m/min) to specific material densities. The integrated hydraulic vice and adjustable cutting pressure provide effortless operation, while the mitre capability (up to 45°) offers the versatility needed for complex structural projects.
Superior Precision and Stability Dual Column Bandsaw. Features a precision-ground column guide for the saw frame, ensuring accurate feeds even on solid blocks, perfect for heavy-duty Aussie jobs like structural steel fabrication. Low-vibration operation from the robust double-column design and heavy spheroidal cast iron frame reduces errors and extends blade life.
Versatile Mitre Cutting. Easily adjustable from 0° to 45° for angled cuts without repositioning the workpiece, saving time on complex projects like pipework or framework in mining or construction sectors.
User-Friendly Hydraulics and Automation. Hydraulic vice clamps workpieces securely for fast setup, while the adjustable cylinder regulates cutting pressure. Automatic shut-down and frame retraction at cut end prevent overfeeds, boosting safety and efficiency in busy workshops. Integrated Coolant System: Keeps the blade and workpiece cool.
Optimal Blade Guidance. Ball-bearing guides with quick-adjustment to workpiece width deliver clean, burr-free cuts, minimising waste and rework, essential for cost-conscious operations.
Durable, Professional Build Cutting Machine. Torsion-free cast iron construction withstands rigorous daily use.
Features
Double-column structure band saw with swivel head
Fine-grained column, make sure the saw moves up and down stably
Swivel saw frame up to 45 degrees, with an indicator to show the swivel angle
Belt-driven metal cutting saw, 3 cutting speeds: 27, 45, 69 MPM
Hydraulic down-feed control, variable feeding speed
Auto shut off when cutting is completed
The hydraulic clamping vice ensures that the materials are fixed during the cutting
Standard C/W working light, one material stand with roller, M42 Bi-metal Saw blade
Optional Hydraulic Oil
Optional Coolant
Specifications
| SKU | 271211 |
| Model | TBK-11A |
| Max cutting @90° | ø280mm, 320x280mm (WxH) |
| Max cutting @45° | ø170mm, 170x280mm (WxH) |
| Max cutting @30° | ø260mm, 260x280mm (WxH) |
| Vice table height | 685 mm |
| Cutting speed | 27, 45, 69 MPM |
| Feeding speed | Hydraulic variable speed |
| Blade size | 27×0.9×3625 mm |
| Workpiece clamping | Hydraulic |
| Blade tensioning | Mechanical |
| Main motor power | 3.0 kW |
| Oil pump motor power | 0.55 kW |
| Hydraulic oil tank | 43L |
| Coolant tank | 45L |
| Drive | Belt |
| Packing size | 215x130x160 cm |
| N.W./G.W. | 820/965 kg |
