Description

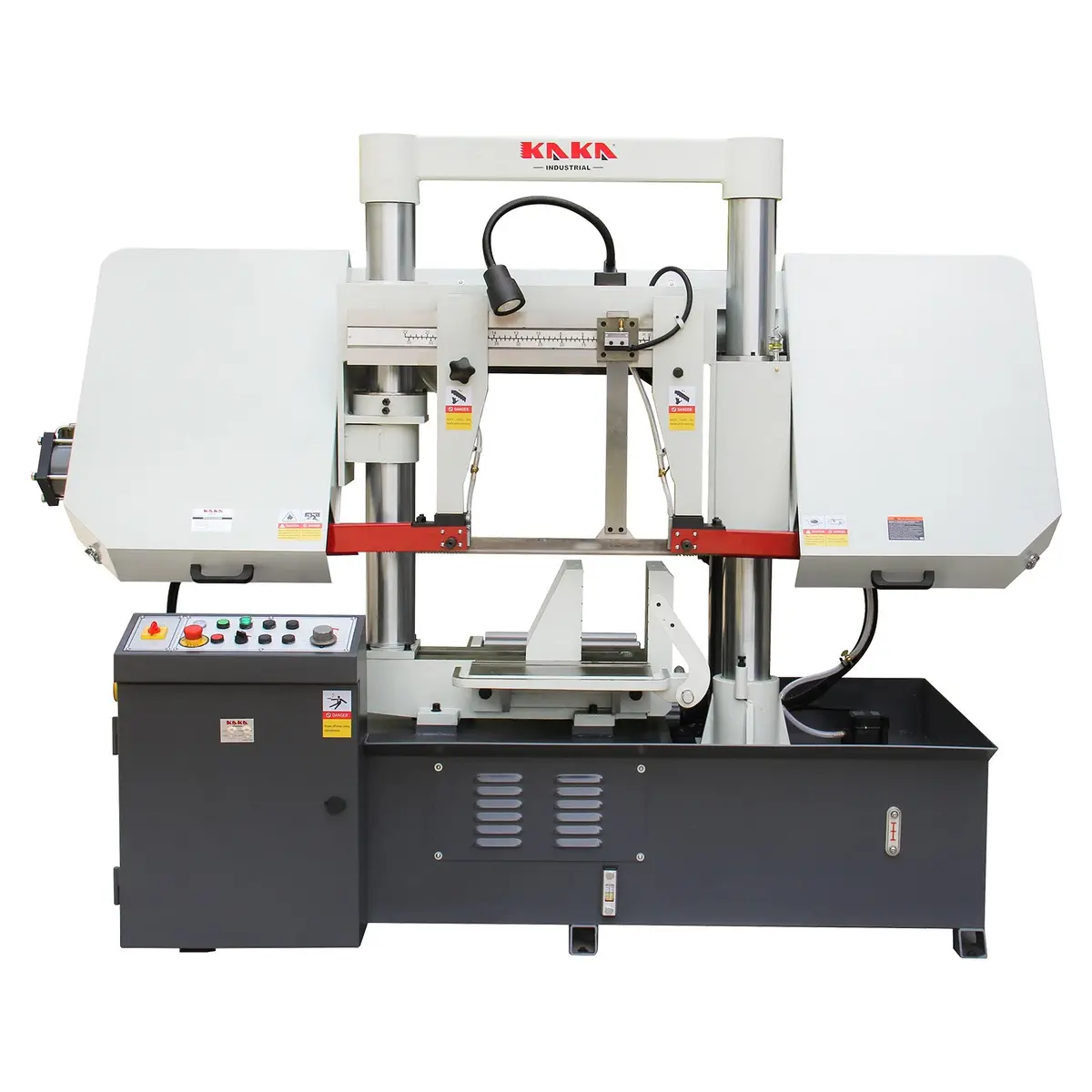

KANG Industrial TGK-16 Double Column Band Saw
Powerful Cutting Capacity
It runs on 415V power and is an industrial-grade double-column bandsaw. It uses a 3.0/4.0kW double-speed motor to achieve two saw blade speeds of 36, 56 MPM. Gear drive: The powerful motor provides the necessary torque to drive the bandsaw blade through metal workpieces with efficiency and accuracy. This bandsaw is capable of cutting a wide range of materials, including metals, plastics, composites, wood, rubber, foam, ceramics, glass, and more.
Flexibility and Versatility
This metal-cutting bandsaw has all the features needed for professional metal-cutting results, allowing users to perform a variety of cuts. It has a double-column structure, vertical lifting, and high stability.
With its 2-step blade speed options, you can easily adjust the cutting speed to match the material you’re working with, guaranteeing optimal performance and clean cuts.
Hydraulic cylinders provide precise control over lowering the cutting blade, offering smooth and consistent operation and resulting in clean and uniform cuts.
Hydraulic clamping is easy to operate. The built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan.
Never miss a detail again with the integrated work lights, which illuminate your workspace and create a brighter cutting environment for optimal visibility.
Safety
Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process. The band saw features a coolant system and an automatic shut-off setting. It also has a heat-treated high-carbon steel blade, brass fittings, and a full complement of belt and blade guards.
Wide Applications
The metal-cutting bandsaw is a versatile tool that can be used in various industries and tasks, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.
Features
Runs on 415V power
3.0/4.0 kW double speed motor to get two saw blade speeds, 36,56 m/min
Double column structure, saw frame vertical lifting, high stability
Saw frame descent by hydraulic control, variable speed
Hydraulic clamping vice and hydraulic blade tension adjustment
Standard working light and cooling system
Bi-Metal Band Saw Blade (Pre-Installed, 41×1.3x5000mm, TPI 3/4)
Optional Coolant
Optional Hydraulic Oil
Specifications
| SKU | 188303 |
| Model | TGK-16 |
| Max. cutting capacity | ø400-400×400 mm |
| Vice table height | 610 mm |
| Cutting speed | 36,56 m/min |
| Feeding speed | Hydraulic, variable speed |
| Balde size | 41×1.1×5000 mm |
| Workpiece clamping | Hydraulic |
| Blade tensioning | Hydraulic |
| Main motor power | 3.0/4.0 kW |
| Oil pump motor power | 0.75 kW |
| Oil Tank Volume | 45L |
| Coolant pump motor power | 0.9 kW |
| Coolant tank Volume | 120L |
| Drive | Gear |
| Packing size | 270x135x215 cm |
| N.W./G.W. | 1325/1585 kg |
