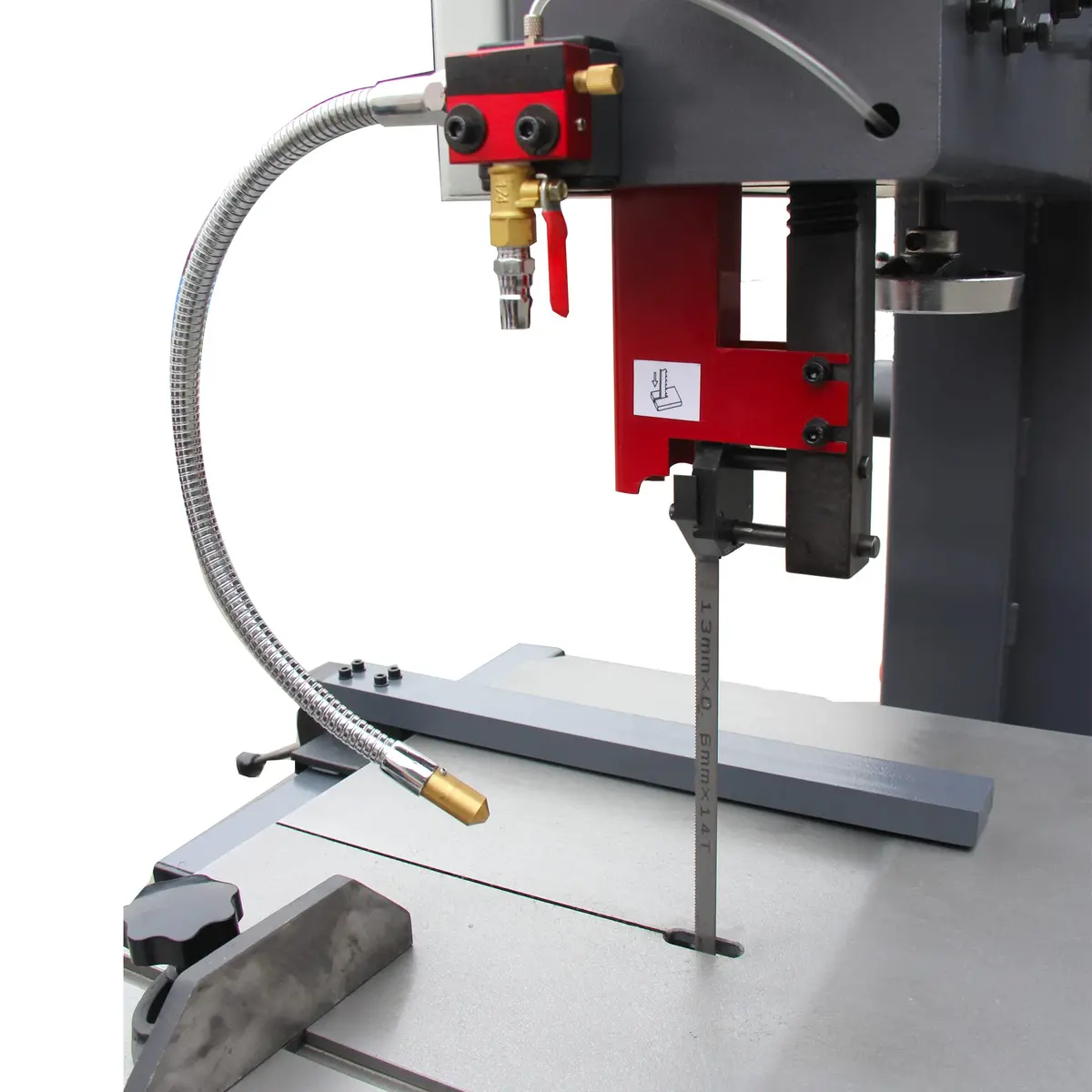

KANG Industrial Vertical Band Saw VS-2012
The Metal Cutting Vertical Bandsaw VS-2012, is a robust, variable-speed vertical bandsaw for industrial metalworking. It’s designed for precision contour, shape, and straight cuts in ferrous/non-ferrous materials like steel, aluminum, and profiles. As a vertical model, it prioritizes manual or jig-guided operations on flat or irregular stock. With its large 660mm x 7000mm worktable and advanced cutting features, this machine is designed to handle a wide range of metal fabrication tasks, from intricate projects to large-scale industrial applications.
Robust Industrial Frame. Heavy-duty construction with precision bearings for vibration-free, continuous heavy-duty operation on tough materials.
Variable Speed Control Bandsaw. Infinitely adjustable from 15-328 MPM via a dial—perfect for optimizing cuts on metals (e.g., low speeds for stainless steel, high speeds for aluminum). Blade width compatibility (3mm – 16mm) for precision and power
Large Work Area Band Saw. 500mm throat depth (resaw height up to 310mm) and tilting table (45° right / 15° left) support oversized or angled workpieces
Enhanced Visibility and Efficiency. Adjustable work light; air-assisted swarf (chip) removal to keep the work area clear.
Integrated Blade Maintenance. Built-in all-in-one station with blade shear, butt welder (3–16 mm capacity with annealing), and grinder—allows on-site blade fabrication/repair to cut costs and downtime.
Features
2HP motor runs on 240V power
Width 500 mm throat depth
Max. cutting thickness up to 310 mm
Accept 3-16 mm width blade
Cast iron table, tilt left to right
Standard with fully integrated blade welder, built-in grinder for finishing the weld joint
The air blowdown system cools the blade and keeps the saw clean
Halogen work light
Specifications
| SKU | 188202 |
| Model | VS-2012 |
| Max. cutting height | 310 mm |
| Max. cutting width | 500 mm |
| Table size | 660×700 mm |
| Table height | 980 mm |
| Motor speed | 0-1400 rpm |
| Blade speed | 15-328 MPM |
| Length of saw blade | 3980-4050 mm |
| Blade width | 3-16 mm |
| Table tilt | R-30°, L-15° |
| Main motor/ Grinder motor | 1.5 kW/0.09 kW |
| Electric welder | 2.4 KVA |
| Packing size | 140x90x220 cm |
| N.W./G.W. | 484/548 kg |
