Description

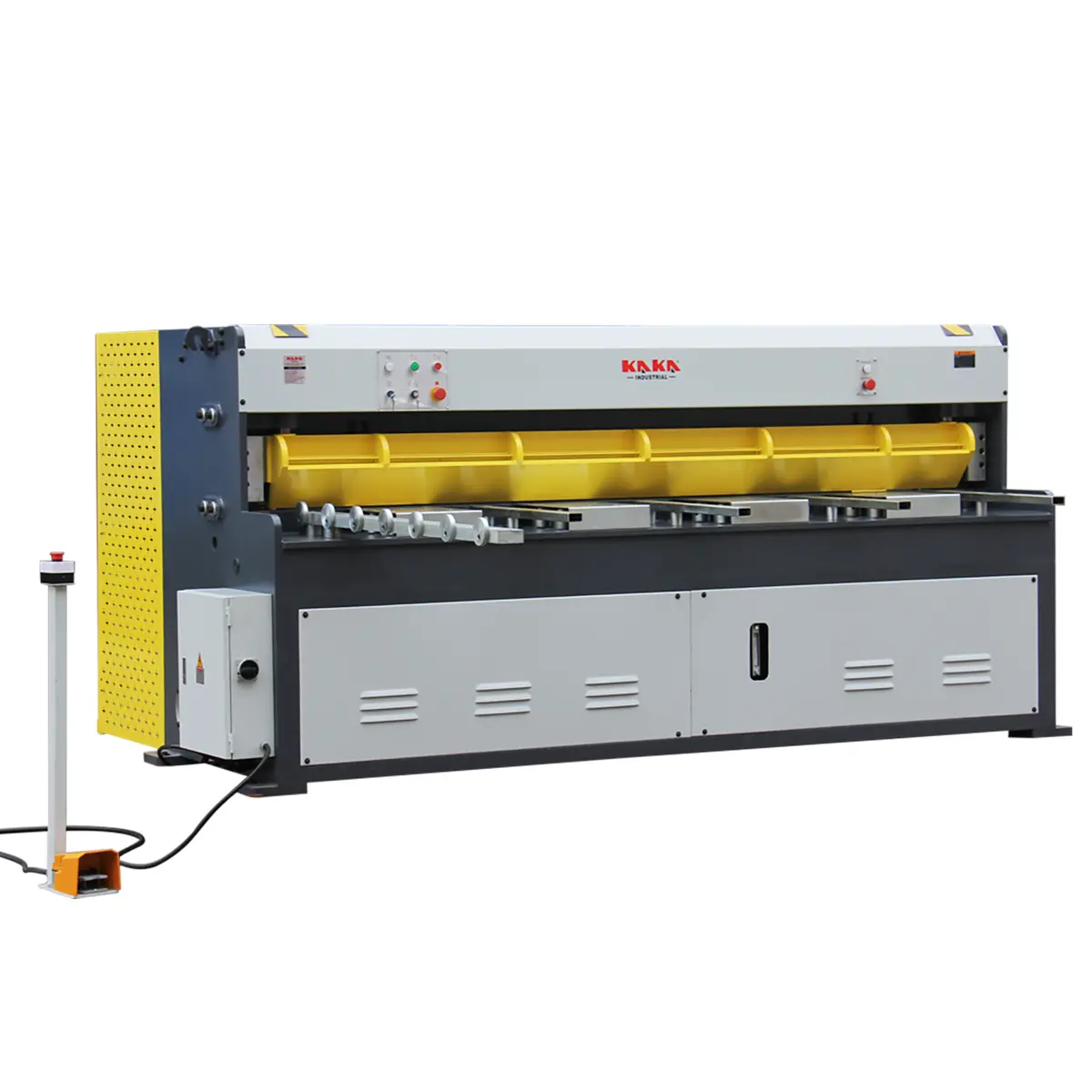

KANG Industrial Hydraulic Guillotine Shear
The HQ11-9809 is a robust, heavy-duty hydraulic guillotine shear designed for efficient and precise cutting of mild steel up to 2500mm wide and 4mm thick. Featuring a vertical slide operation for clean, distortion-free cuts, this machine includes hydraulic clamping with balanced pressure to securely hold materials in place during cutting. It comes equipped with a wide plate support table supported by roller bearings for smooth material feeding, high-quality HSS blades (top blade with 2 cutting edges, bottom with 2), and a blade gap adjustment system that allows for max. 4mm thicknesses cutter.
Precision and Efficiency Sheet Cutting. Vertical slide and blade gap settings ensure clean, accurate cuts across a range of material thicknesses, reducing waste and improving productivity in busy workshops.
User-Friendly Guillotine Shear. Features hand-wheel back gauge adjustment, and roller-bearing table make it easy to handle large sheets, saving time and effort for operators.
Durability and Build Quality Hydraulic Shearing Machine. Constructed with heavy-duty components, including high-qualityblades and a powerful 7.5kW motor, this guillotine is built to withstand demanding industrial use, offering long-term reliability for businesses.
Safety Compliance. CE-certified with rear safety lights and hydraulic clamping, it meets Australian safety standards, providing peace of mind for users in metalworking environments.
Versatile for Local Needs. With a compact footprint and 415V power compatibility, it’s well-suited for Australian fabrication shops, supporting high-volume shearing at 16 strokes per minute for full-length cuts.
Features
7.5 kW powerful motor runs on 415V power
Quick action blade clearance adjustment
Full-length plate clamping bar
Manual lubrication pump for all sideways
Standard with a shadow line light-alignment device
The clamping beam allows a clear view to the shadow line on the material
Two Cutting Model:
Inch Mode: Jog the control, easy to adjust the blade clearance
Auto Mode: Continuous cutting when keeping press the foot pedal
Standard Included:
1 each 150 cm squaring arm with inlaid inch/metric dual scale
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 4-edge on the bottom & 4-edge on upper
4 each 610mm front support arms
Hydraulic hold-downs with anti-mar neoprene
Full-length viewable finger guard
Removable safety foot pedal
Optional Hydraulic Oil
Specifications
| SKU | 186203 |
| Model | HQ11-9809 |
| Max. cutting length | 4.0 mm |
| Max. cutting width | 2500 mm |
| Shearing angle | 1.7° |
| No. of stroke (per min.) | 16 |
| Motor power | 7.5 kW |
| Back gauge | 630 mm (manual) |
| Packing size | 335x116x185 cm |
| N.W./G.W. | 3330/3360 kg |
