Description

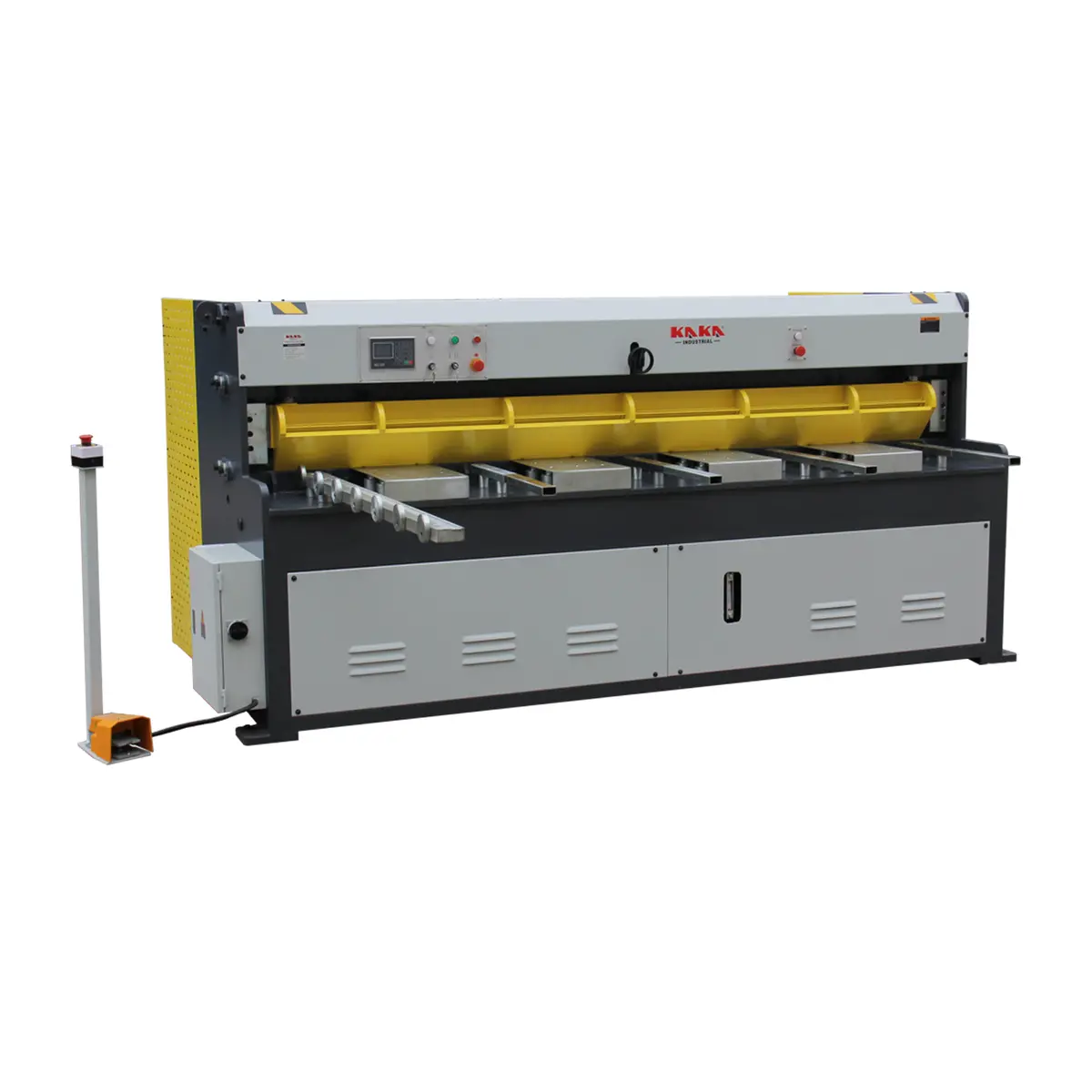

KANG Industrial Hydraulic Guillotine Shear
The KANG HQ11-9809B is a robust hydraulic guillotine shearing machine, built for precise, high-volume straight cutting of sheet metal. It features a generous 2500 mm ( cutting length and reliably shears mild steel up to 4.0 mm thick. The motorised back gauge is controlled by the NC89 Controller. This model suits metal fabrication shops, roofing contractors, ductwork manufacturers, signage producers, and general sheet metal businesses needing clean, accurate cuts on medium-gauge materials.
Blade Clearance Adjuster. Allows the operator to manually adjust the gap between blades to match the material thickness, ensuring clean, burr-free cuts on both thin and thick plates.
High Productivity Hydraulic Guillotine. Up to 16 strokes/min combined with fast hydraulic action supports busy production environments; excellent for repetitive cutting in roofing, ducting, cladding, and fabrication shops.
High-Quality Cutting Blades. Both Top & Bottom cutting blades are 4-edged are made of high-grade chrome/carbon steel for extended service life.
Front Table with Ball Transfer. With ball transfer on the front table, easy to feed heavy materials.
Features
7.5 kW powerful motor runs on 415V power
Quick action blade clearance adjustment
Full-length plate clamping bar
Manual lubrication pump for all sides
Standard with a shadow line light-alignment device
The clamping beam allows a clear view of the shadow line on the material
Standard motorized back gauge with NC Controller.
Optional Hydraulic Oil is available.
Specifications
| SKU | 186205 |
| Model | HQ11-9809B |
| Max. cutting length | 4.0 mm |
| Max. cutting width | 2500 mm |
| Shearing angle | 1.7° |
| No. of stroke (per min.) | 16 |
| Motor power | 7.5 kW |
| Back gauge | 630 mm (motorized) |
| Packing size | 335x116x185 cm |
| N.W./G.W. | 3330/3360 kg |
