HV-6 Precision Rotary Table – 150 mm Plate, 90:1 Worm Gear Ratio, MT2 Bore, Low-Profile Workholding Solution

Description

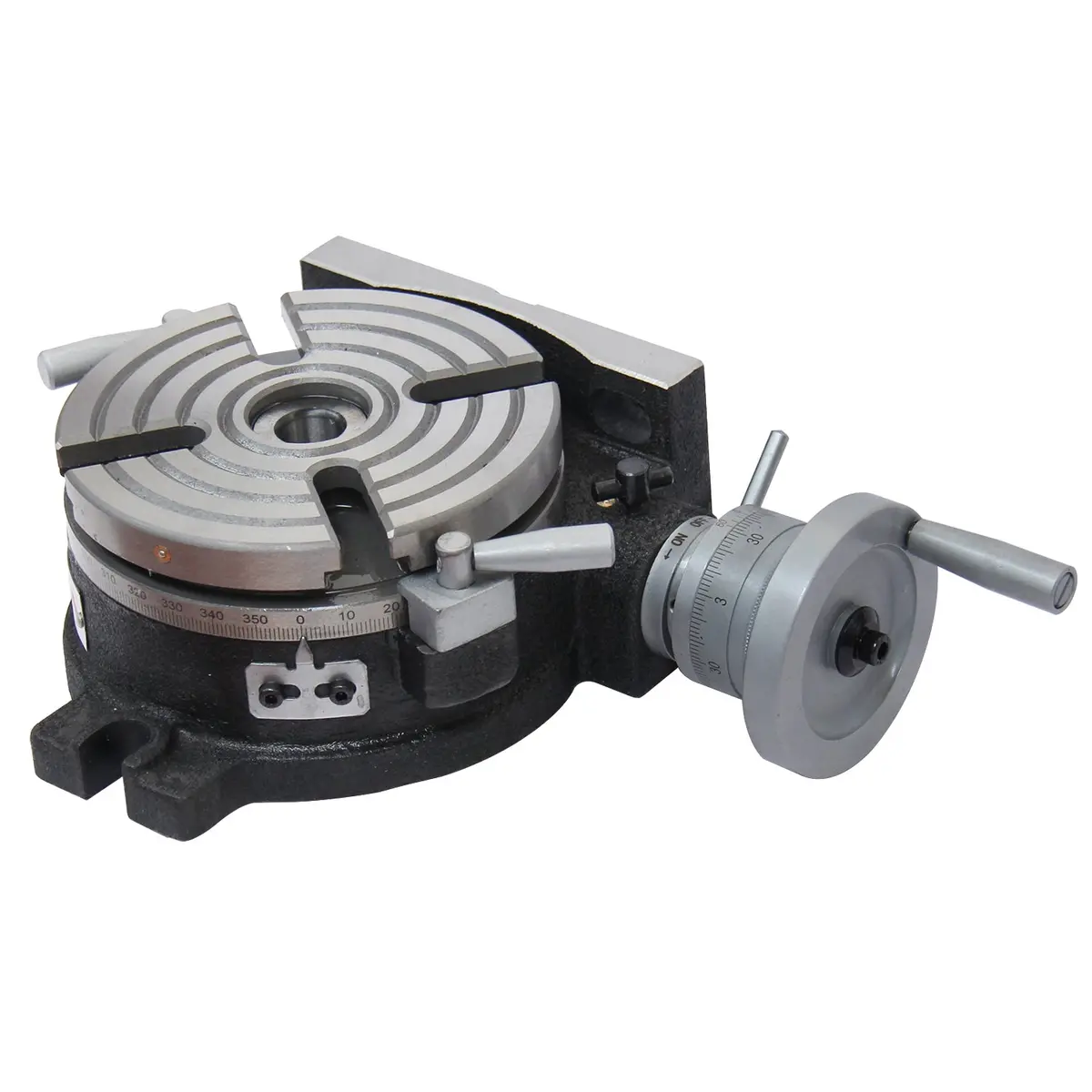

KANG INDUSTRIAL Rotary Table HV-6

The HV-6 is a mid-sized, professional-grade machining accessory that bridges the gap between hobbyist “mini” tools and heavy industrial equipment. The HV-6 offers a significantly larger workspace and higher load capacity, making it a “workhorse” for serious fabricators and engineering workshops. The Workholding Table HV-6 is a high-precision, horizontal-vertical circular dividing table designed for milling, drilling, and grinding. Its robust 160mm diameter provides a stable platform for larger workpieces while maintaining a surprisingly low profile.

Precision and Repeatability Workholding Table. 10” hand wheel gradations, 60″ division accuracy, and tight tolerances ensure consistent, error-free results for detailed tasks like bolt circles or curved milling, ideal for high-tolerance work in engineering and prototyping sectors.

Ultra-Compact Low-Profile Design Rotary Table.  Only 86 mm height and 12 kg weight make it perfect for benchtop or space-constrained mills common in home garages, regional workshops, and smaller professional setups, maximizing usable workspace without sacrificing capability.

Superior Protection and Durability. Fully enclosed construction shields internals from chips and dust, while the robust box way, adjustable zero-backlash, and effective clamping provide smooth, long-term performance with minimal maintenance.

Efficient Operation Features. Quick worm disengagement for fast manual positioning, replaceable hand wheel/indexing plate option, and stable clamping reduce setup time, boosting productivity for users handling one-off jobs or small batches.

Features

High-density cast iron body

Vertical and horizontal position table

One rotation of the handle equals 4° on the collar

Gear ratio: HV-4, 1:72, HV-6, HV-8 1:90

Ground surface areas on the table

Optional Tailstock TS-1 (Special Order)

Optional Dividing Plate DP-1

Specifications

Item No.	161104	161106	161108
Model	HV-4	HV-6	HV-8
Dia. of table	110 mm	150 mm	200 mm
Morse taper	MT2	MT2	MT3
Width of T-slot	12 mm	12 mm	14 mm
Adjacent angle of T slot	120°	90°	90°
Transmission ratio of the worm gear	1:72	1:90	1:90
Minimum value of vernier	10″	10″	10″
Max. loading with table horizontal	40kg	100kg	150 kg
Max. loading with table Vertical	20kg	50kg	75 kg
Packing size	19x10x12 cm	26x24x13 cm	38x31x18 cm
N.W./G.W.	9/11 kg	13/15 kg	38/31 kg
