Description

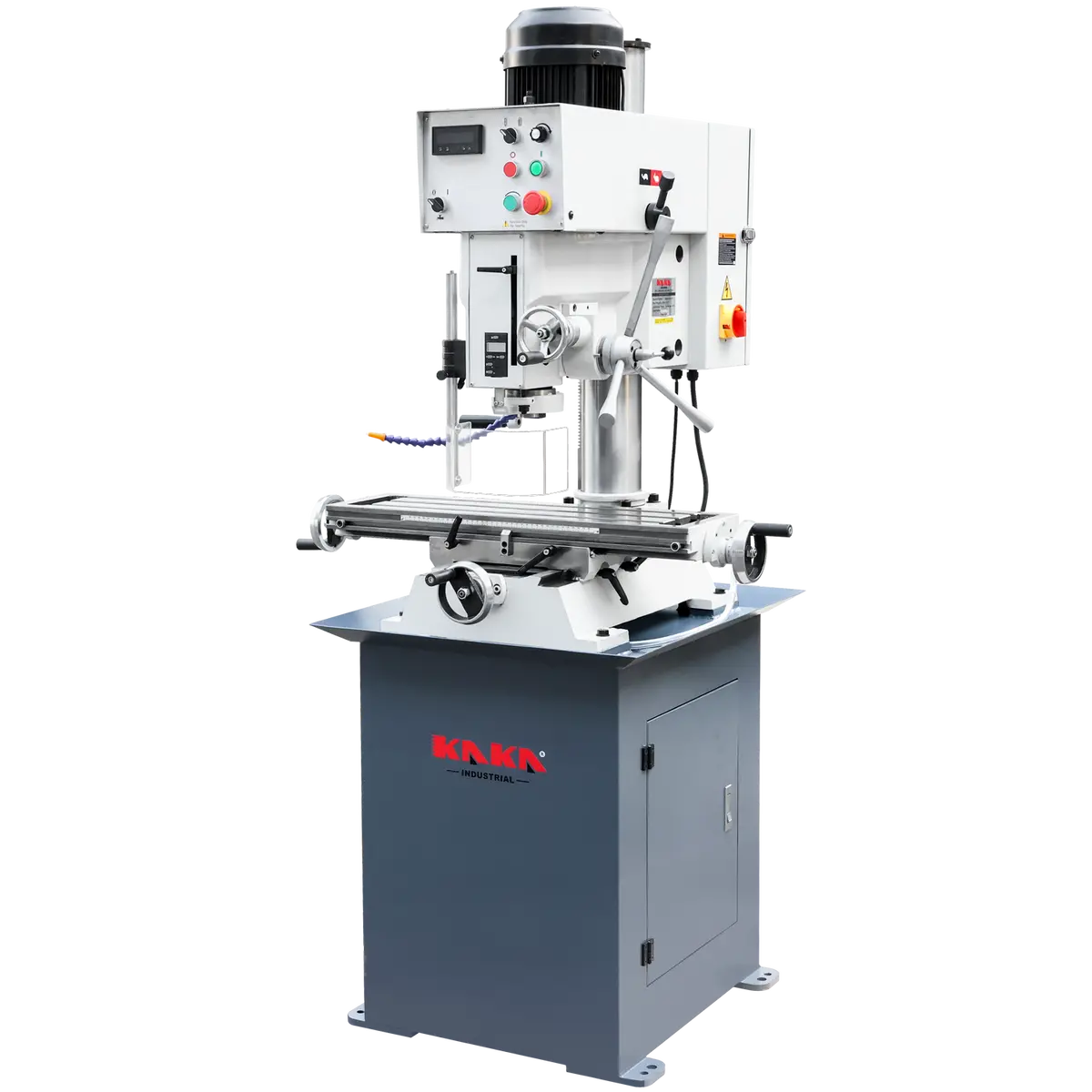

KANG INDUSTRIAL DM-32A Drilling & Milling Machine
Drilling dia. 32mm, Table size, 730x210mm
Features
Runs on 240V Single phase, suitable for both home use and industrial workshop
Gear head with high torque, powerful drilling & milling
MT3 Spindle taper, Max. drilling dia. 32mm, face milling dia. 75mm
Digital display shows the spindle speed
Precision casting worktable with 16mm width T slot
Table size 730x210mm, Travel 370x170mm
Safety guards with a microswitch to protect the worker
Standard with cooling system
Specifications
| SKU | 183038 |
| Model | DM-32A |
| Max. drilling dia. | ∅32 mm |
| Max. face milling dia. | ∅75 mm |
| Max. vertical milling dia. | ∅25 mm |
| Tapping in Steel/Cast Iron | M16/M18 |
| Spindle taper | MT3 |
| Sleeve dia. | ∅75 mm |
| Sleeve travel | 150 mm |
| Spindle speed | High, 0-2000 rpm; Low, 0-540 mm |
| Distance from spindle to column | 265 mm |
| Table size | 730×210 mm |
| X/Y/Z travel | 370mm/170mm/450mm |
| T-slot | 16mm |
| Main motor | 2.2 kW |
| Coolant motor | 0.45 kW |
| Packing size | 96x96x198 cm |
| N.W./G.W. | 366/464 kg |
