Description

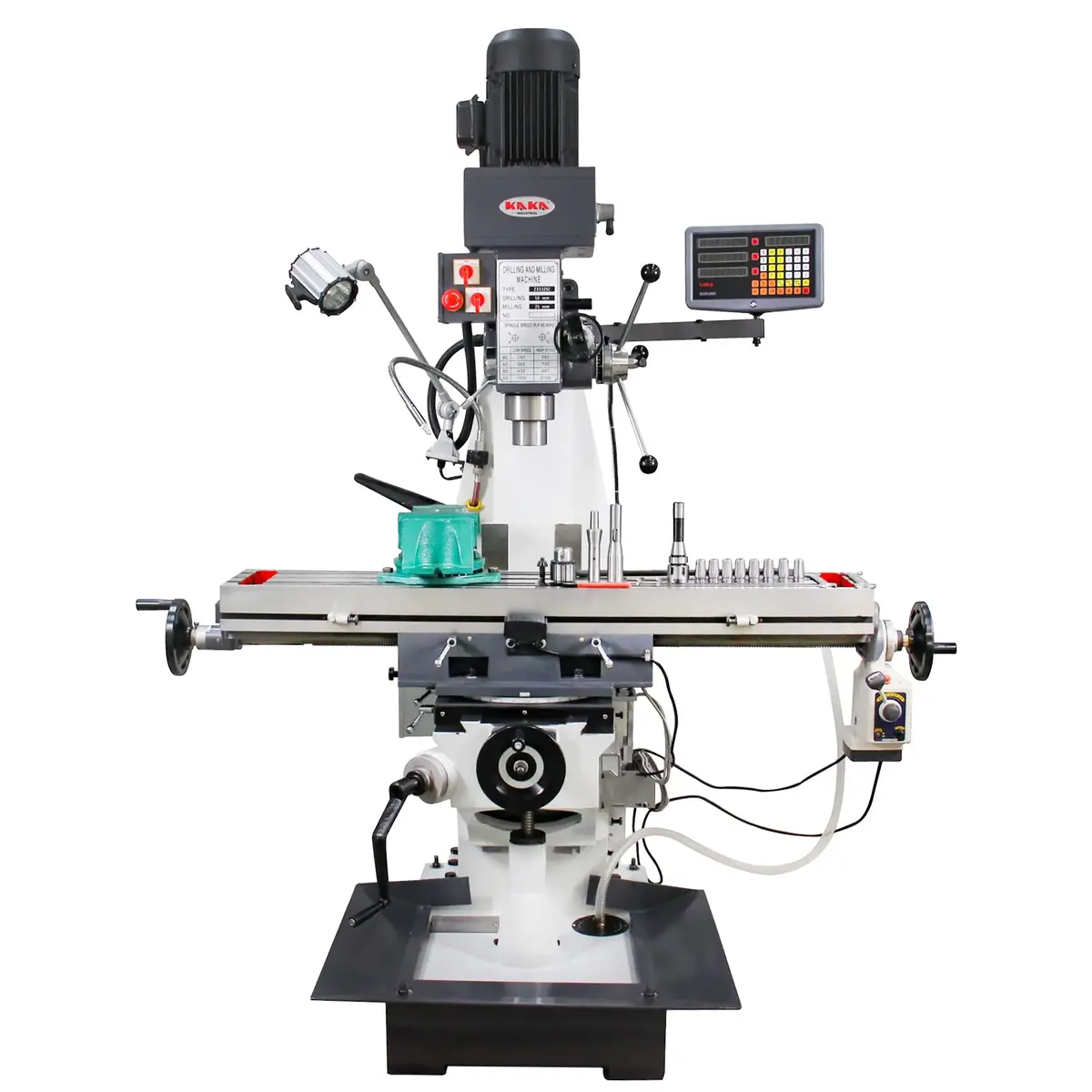

KANG INDUSTRIAL ZX5325C Drilling Milling Machine with 3-Axis DRO, Gear Milling Head
The KANG Heavy Duty Milling Machine ZX5325C is a professional-grade, gear-driven milling machine designed for demanding metalworking tasks in workshops and industrial environments. It features a robust cast iron construction that absorbs vibrations effectively, ensuring stable and precise operation even under heavy loads. The vertical milling head is pivotable and swivels ±90°, allowing for versatile angled milling. The head operates with ground and hardened gear wheels for smooth, reliable performance, and it supports both clockwise and counterclockwise rotation as standard.
Durability and Reliability Vertical Gear Head Mill. The heavy cast iron frame and vibration-absorbing design make it ideal for rugged environments, where equipment must withstand dust, heat, and intensive use. Oil-bath gears with hardened wheels ensure longevity, reducing maintenance needs and downtime
Precision and Versatility for Professional Tasks. With 8 spindle speeds, a swivel head (±90°), and automatic X-axis feeding, it excels in precise milling, drilling, and tapping up to M16. And a 2-axis DRO significantly improves accuracy on the table movements (X/Y)
Value-Added Accessories and Ease of Setup Drill/Mill. Comes fully equipped with chucks, adapters, a vice, a 2-Axis DRO and a cooling system, reducing the need for extra purchases.
Features
Runs on 415V power, a double-speed motor
2 Axis digital readout system
Swivel table with guide scale
Tilt gear milling head, ±45°, left and right
ISO 30 Spindle taper
Fine-grounded extra-large work table, 1270x260mm
Fine ground dovetail for table movement, travel 450x280x380mm
Power feed on the X-axis
Standard machine vice, working light, coolant system, DRO
Specifications
| SKU | 183013 |
| Model | ZX5325C |
| Max. drilling dia. | 50 mm |
| Max. end milling dia. | 100 mm |
| Max. vertical milling dia. | 32 mm |
| Max. tapping dia. | M16 |
| Spindle taper | ISO30 |
| Spindle speed | 115-1750 rpm, 8 steps |
| Spindle travel | 125 mm |
| Table size | 1270×260 mm |
| Table travel | 450x280x380 mm |
| Main motor power | 0.85/1.5 kW |
| Drive | Gear |
| Packing size | 114x114x222 cm |
| N.W./G.W. | 870/1070 kg |
