Description

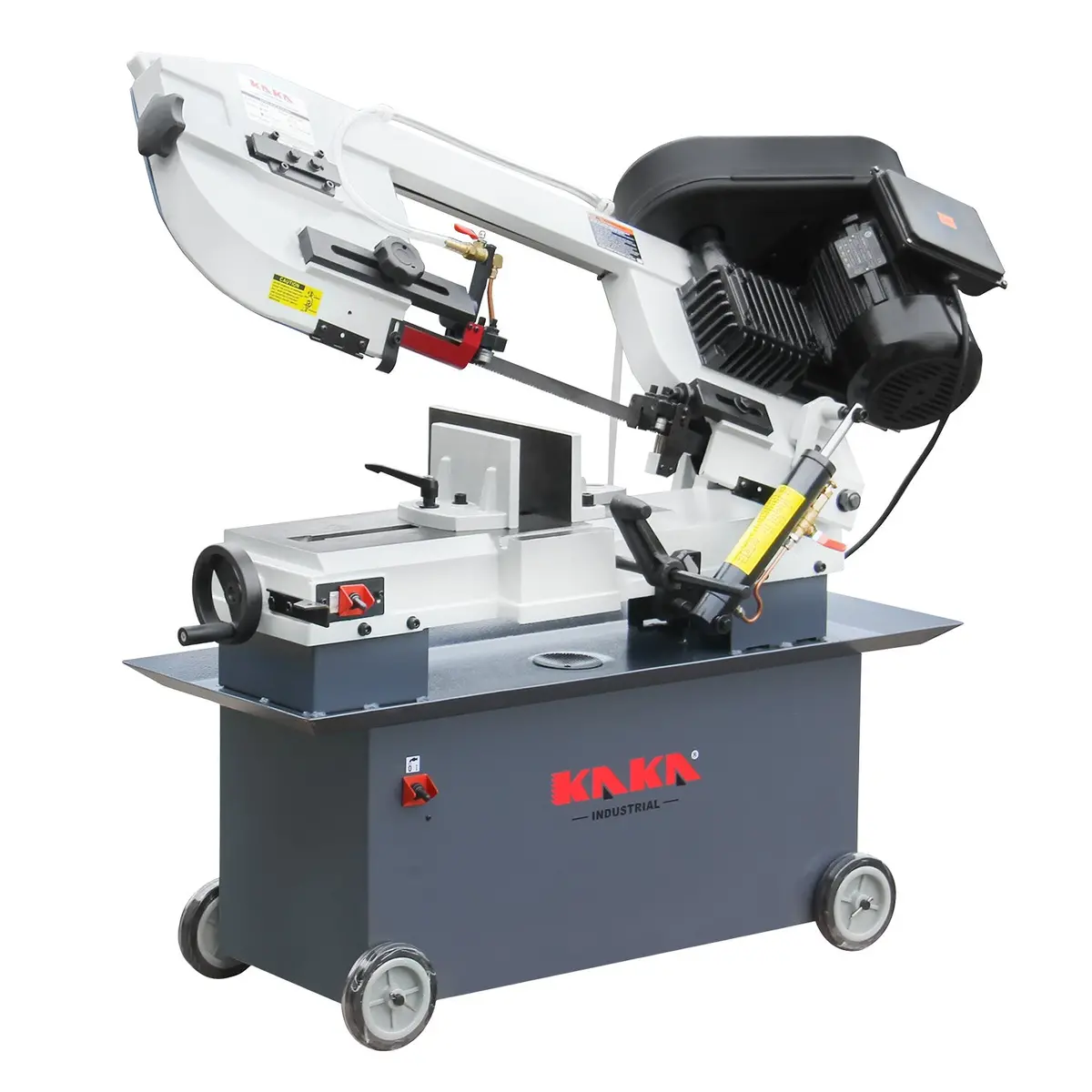

KANG Industrial Horizontal Metal Band Saw BS-712N
This is an entry-level horizontal metal-cutting bandsaw from KANG. It’s a good option for hobbists and light-duty workshops, ideal for straight and mitre cuts on mild steel, aluminum and profiles.
Single-Phase Power Bandsaw. 1.1kW Single-phase motor delivers high torques for efficient cutting through metals
4-Speed Belt Drive Metal Band Saw, Adjustable speeds (22, 34, 49, 64 MPM) via pulley wheels optimize for different materials, extending blade life
Bandsaw with Hydraulic Downfeed Control, Smooth, adjustable descent speed prevents the blade from breaking and ensures burr-free cuts.
Quick-Release Swivel Vice Saw, Fast clamping with 0-45 degrees rotation for mitre cuts, secures irregular shapes securely in seconds.
Built-in Coolant System, The coolant pump & tank and brass valves flush chips and lubricate the blades, lowering temperatures to prolong Bi-Metal blade life, and improve surface finishes
Features
Max. cutting 178mm OD round tube and 178x305mm rectangular at 90 °
1.1 kW powerful motor runs on 240V power
Swivel vice up to 45°, easy to loosen the vice and rotate it to the proper angle.
The cast iron frame minimizes the vibrations and ensures clean cutting
Roller bearing blade guide to ensure accurate cutting on the material
You could operate the band saw horizontally and vertically
M42 bi-metal saw blade for long-term use
Table height around 525mm
A chip removal brush and a cooling system to keep the saw running for a long time
Standard:
Vertical Table
Coolant system
M42 Band Saw Blade (Pre-installed, 19×0.9x2362mm, TPI 5/8)
Optional Saw Blade, TPI 6/10
Optional XDP-2000 Coolant
Specifications
| SKU | 188006 |
| Model | BS-712N |
| Cut circular @90° | 178mm |
| Cut rectangular @ 90° | 178×305 mm |
| Cut circular @45° | 127 mm |
| Cut rectangular @45° | 120×125 mm |
| Vice table height | 570 mm |
| Blade speed | 22, 34, 49, 64 MPM |
| Blade size | 19×0.9×2362 mm |
| Motor | 1.1 kW |
| Drive | V-belt |
| Packing size | 125x51x115 cm |
| N.W./G.W. | 145/178 kg |
