Description

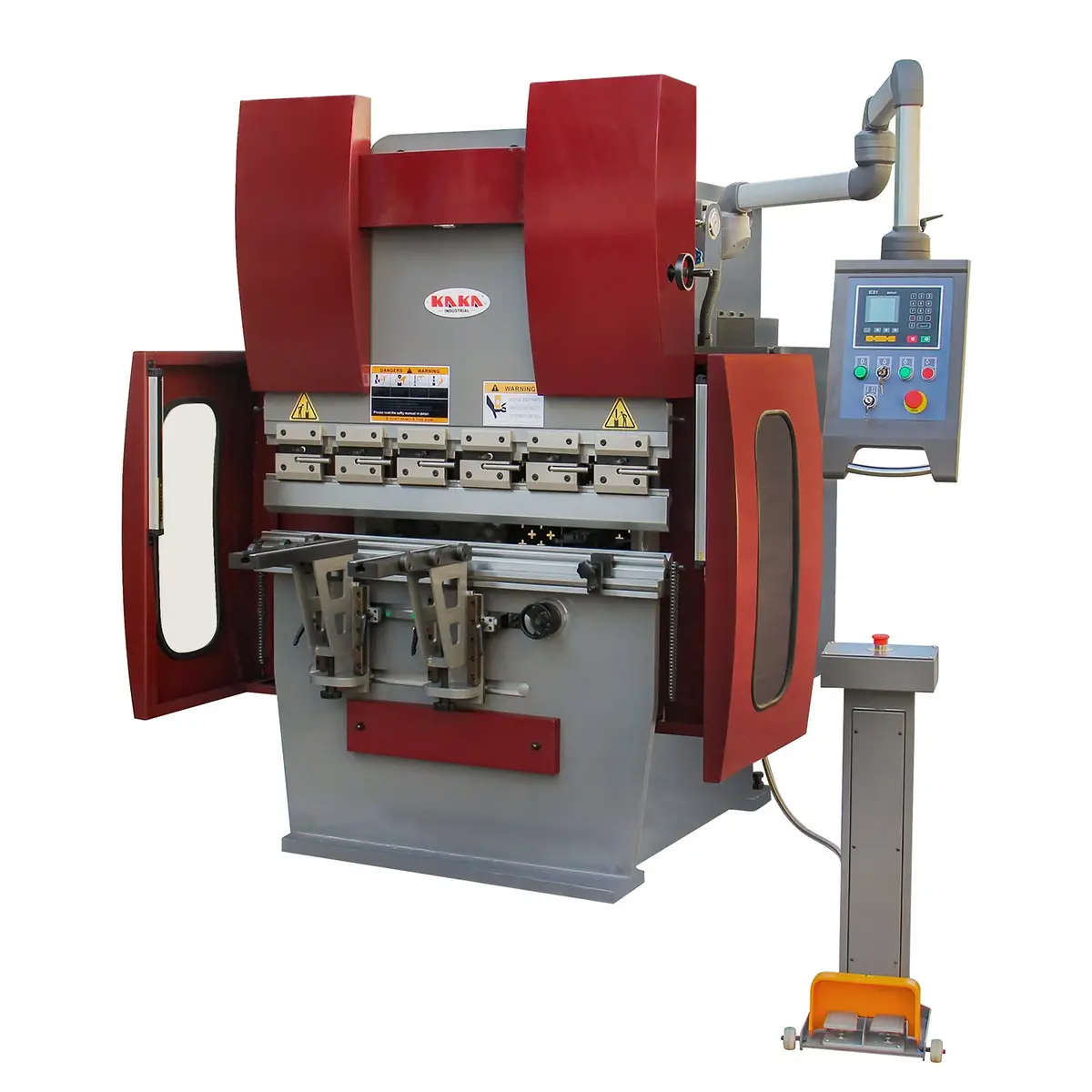

Kang Industrial Hydraulic Vertical Press Brake
E21 System NC type easy operation 2-Axis press brake, 40T Pressure, and 1250mm table width,
Features
WC67Y-40/1250A delivers 40-ton pressure across the full width 1250mm table
Easy to use programmable 2-axis Estun E21 controller, internal memory could hold 40 programs.
The controller will keep a piece count for large projects
Integrated safety light curtains help prevent the accidents
Manual hydraulic crowning
The movable foot pedal leaves your hands free to position the material
The motorized back gauge could show the position on the screen
Multi-V-groove bottom dies on four sides
Specifications
| Item No. | 161205 |
| Model | WC67Y-40x1250A |
| Normal pressure | 400 KN |
| Max. working length | 1250 mm |
| Distance between uprights | 850 mm |
| Open height | 330 mm |
| Throat depth | 215 mm |
| Stroke | 150 mm |
| Worktable height | 900 mm |
| Main motor | 4 kW |
| Hydraulic oil | 94 L |
| Dimension | 180x145x210 cm |
| Weight | 2500 kg |
