Description

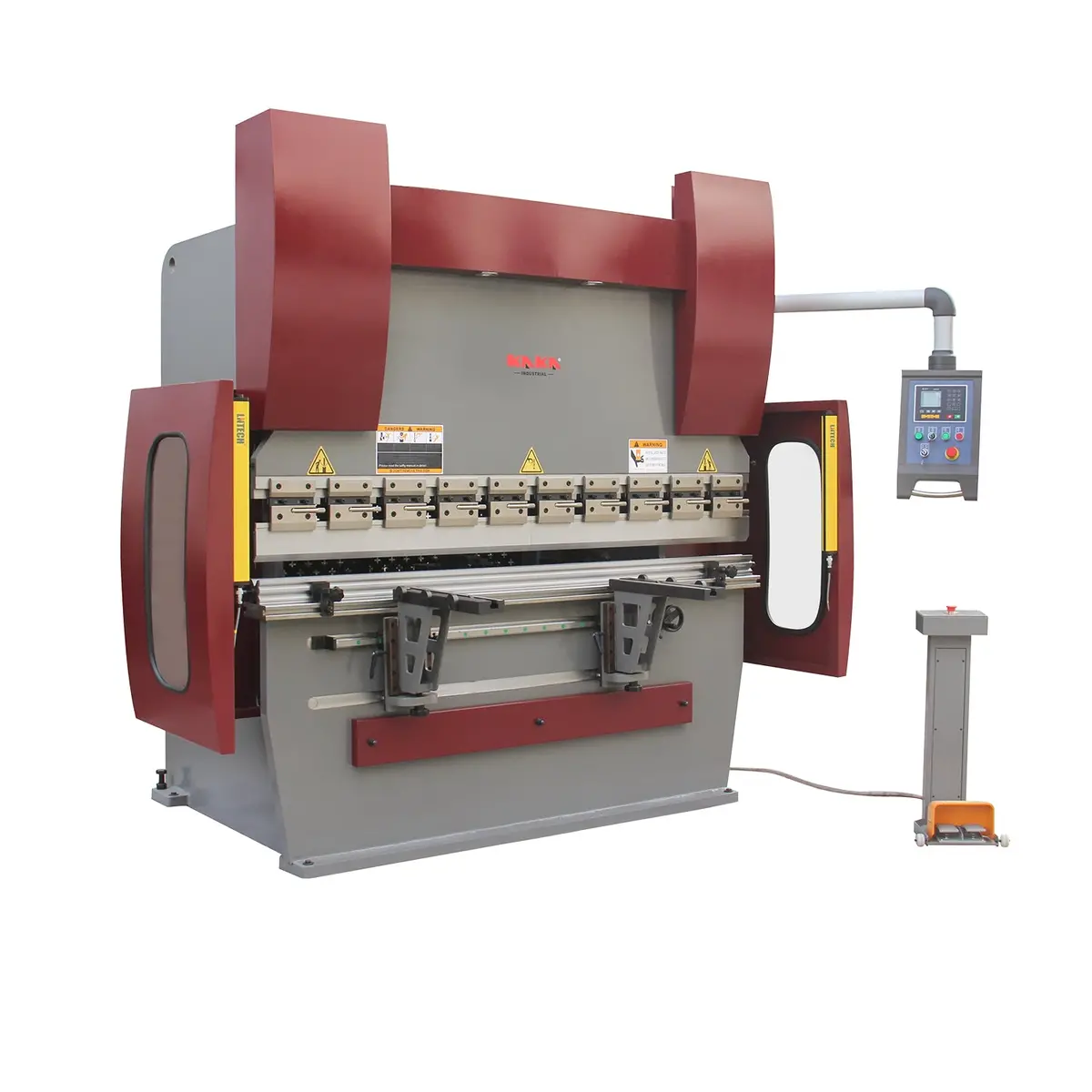

Kang Industrial Hydraulic Vertical Press Brake
E21 System NC type easy operation 2-Axis press brake, 63T Pressure, and 2040mm table width,
Features
WC67Y-60/2040A delivers 63-ton pressure across the full width of the 2040mm table
Easy to use programmable 2-axis Estun E21 controller, internal memory could hold 40 programs.
The controller will keep a piece count for large projects
Integrated safety light curtains help to prevent accidents
Manual hydraulic crowning
The movable foot pedal leaves your hands free to position the material
The motorized back gauge could show the position on the screen
Multi-V-groove bottom dies on four sides
Specifications
| Item No. | 161204 |
| Model | WC67Y-63/2040A |
| Normal pressure | 630 KN |
| Max. working length | 2040 mm |
| Distance between uprights | 1600 mm |
| Open height | 385 mm |
| Throat depth | 250 mm |
| Stroke | 150 mm |
| Worktable height | 900 mm |
| Main motor | 5.5 kW |
| Hydraulic oil | 195 L |
| Dimension | 265x160x220 cm |
| Weight | 3950 kg |
