Description

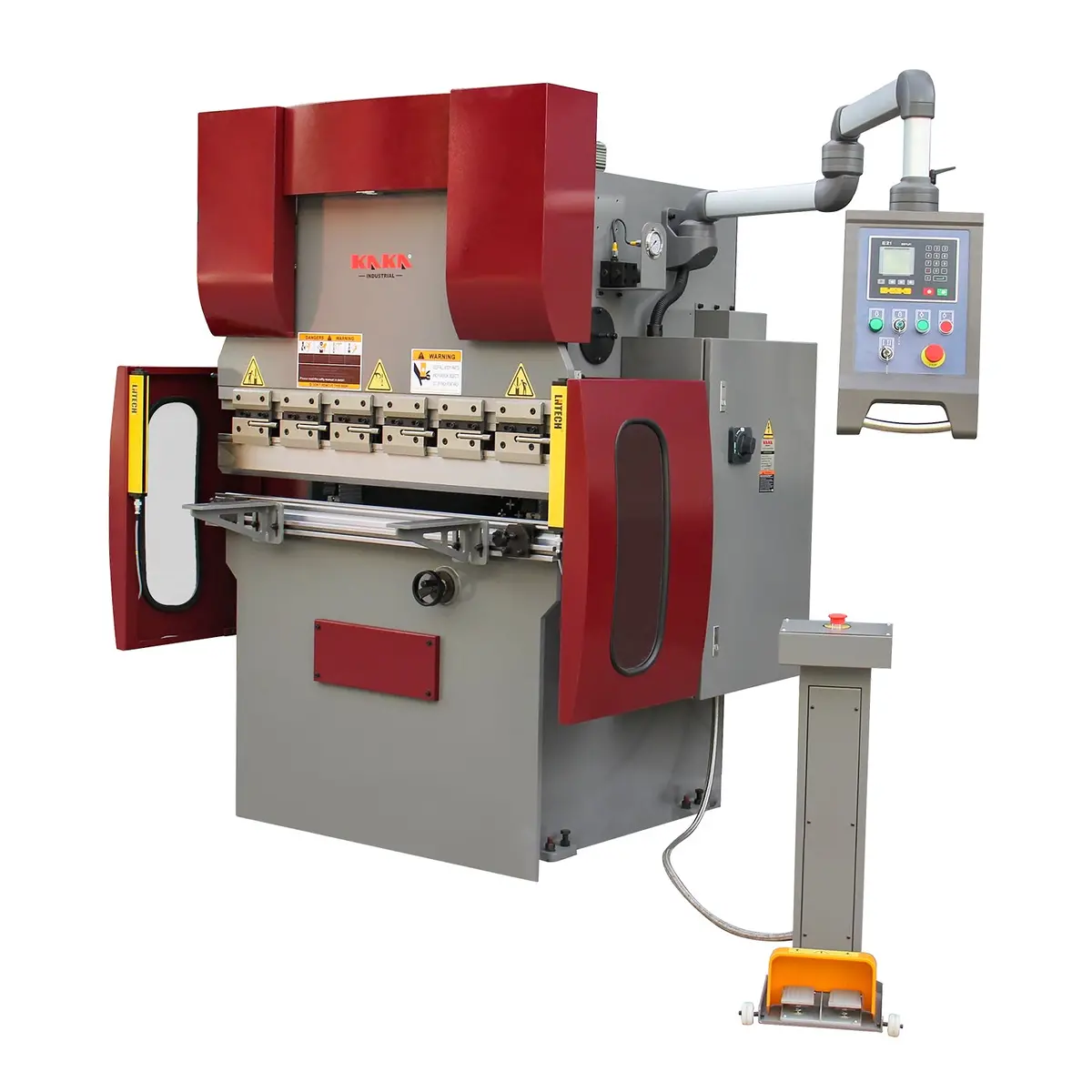

Kang Industrial Hydraulic Vertical Press Brake
E21 System NC type easy operation 2-Axis press brake, 30T Pressure, and 1300mm table width,
Features
WC67Y-30/1300 delivers 30 Ton pressure across the full width 1300mm table
Easy to use programmable 2-axis Estun E21 controller, internal memory could hold 40 programs.
The controller will keep a piece count for large projects
Integrated safety light curtains help prevent accidents
The movable foot pedal leaves your hands free to position the material
The motorized back gauge could show the position of the DRO
Multi V-groove bottom dies on four sides
NOTE: WILL NEED TO FILL HYDRAULIC OIL BEFORE STARTING THE MACHINE
Specifications
| Item No. | 161201 |
| Model | WC67Y-30x1300A |
| Normal pressure | 300 KN |
| Max. working length | 1300 mm |
| Distance between uprights | 940 mm |
| Open height | 320 mm |
| Throat depth | 190 mm |
| Stroke | 100 mm |
| Worktable height | 900 mm |
| Main motor | 4 |
| Hydraulic oil | 70 L |
| Dimension | 180x130x230 cm |
| Weight | 2000 kg |
